CE Certified Waterproof Soil Sensor for Irrigation Measuring VWC Temp Moisture and EC

CE Certified Waterproof Soil Sensor for Irrigation Measuring VWC Temp Moisture and EC

CE Certified Waterproof Soil Sensor for Irrigation Measuring VWC Temp Moisture and EC
CE Certified Waterproof Soil Sensor for Irrigation Measuring VWC Temp Moisture and EC
Categories Soil Series Measurements
Mounting Type: Insert into soil
Description: soil sensor
Model Number: BGT-SEC
Place of Origin: Beijing, China
Brand Name: BGT
Application: soil test
Product name: UART 2-5V 3 in 1 Soil Moisture & Temperature & EC Sensor
Key Word: Soil ec sensor
Working voltage: 2-5V, 3.3V
Response Time: <1 s
Protection level: IP68
Working temperature range: -40℃~85℃
Measuring range mositure: 0-100.00%
Accuracy mositure: ±3%(0-53%);±5%(>53%)
EC (Conductivity): 0-20000uS/cm (25℃) (0-20.0EC)
Resolution moisture: 0.01%
Packaging Details: Box
Port: Tianjin
Supply Ability: 100000 Set/Sets per Month
Price: $78.96/pieces 1-9 pieces
MOQ: 1 piece
Contact Now
Company Info.
Beijing Guoxinhuayuan Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

CE Certified Waterproof Soil Sensor for Irrigation Measuring VWC Temp Moisture and EC

Please Attention

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
Product Description

Industrial volumetric water content MODBUS-RTU RS485 UART 2-5V 3 in 1 Soil Moisture & Temperature & EC Sensor for farm

The new developed soil moisture temperature EC three-in-one sensor is a soil sensor developed with a new technical scheme, whichcan measure soil moisture, temperature and conductivity at the same time, and carry out compensation calculation among parameters,eliminating the influence of conductivity on water, temperature on water and temperature on conductivity, can perform compensation operation and accurate evaluation.

This product can be used to measure the moisture content of saline-alkali land, which is not affected by the salt content of soil and can accurately measure the moisture content of soil.

It adopts imported epoxy resin, high quality stainless steel, more resistance to acid and alkali corrosion, steel needle
isolation, never electrolysis, with more than 3 years of service life.
With the multi-directional function of power line, ground line and signal line, can prevent the damage caused by reverse
connection, wrong connection and so on.


Features

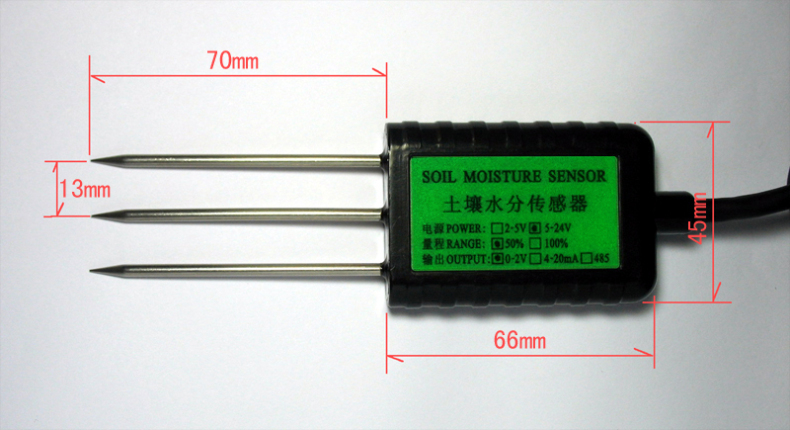

▶ Three 316L Needle Probe
▶High Stability High Accuracy
▶ Fast Response

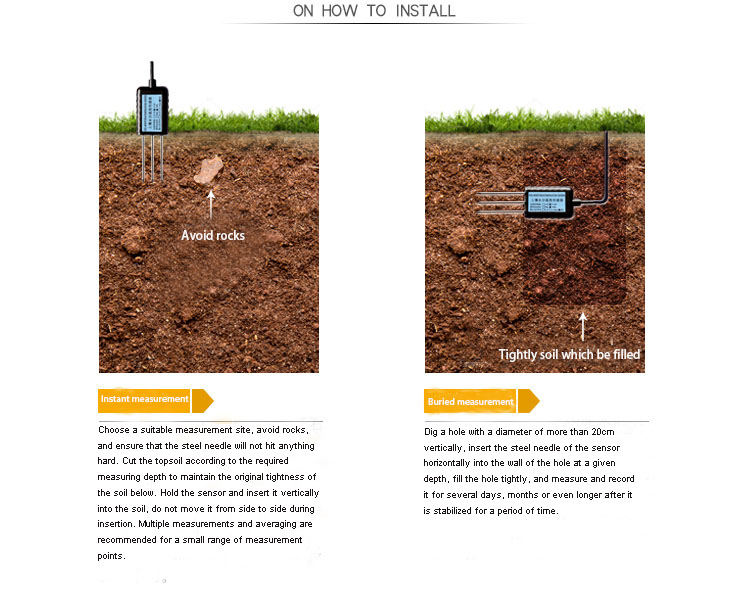

▶ Easy Installation

▶ Directly Buried in Soil
▶ Widly Application

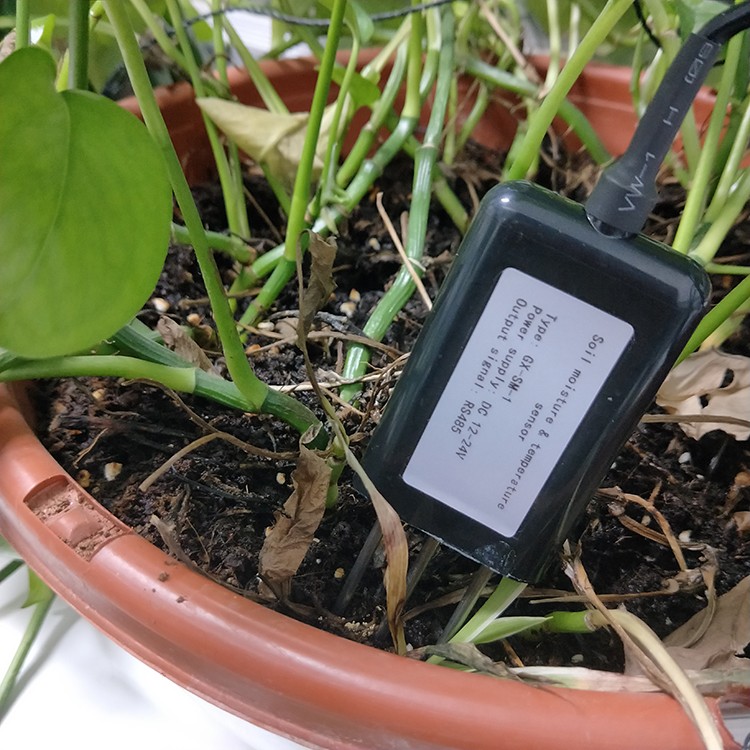

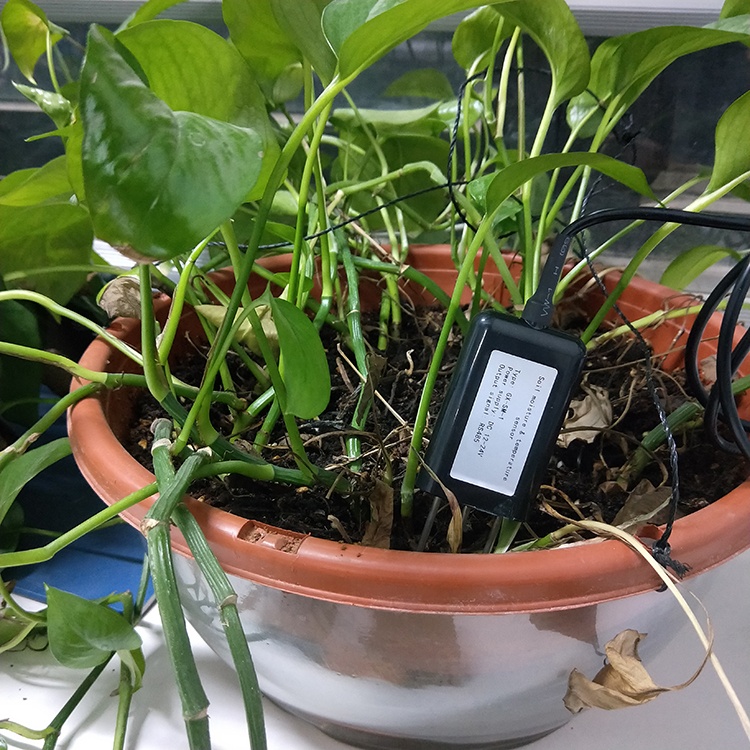

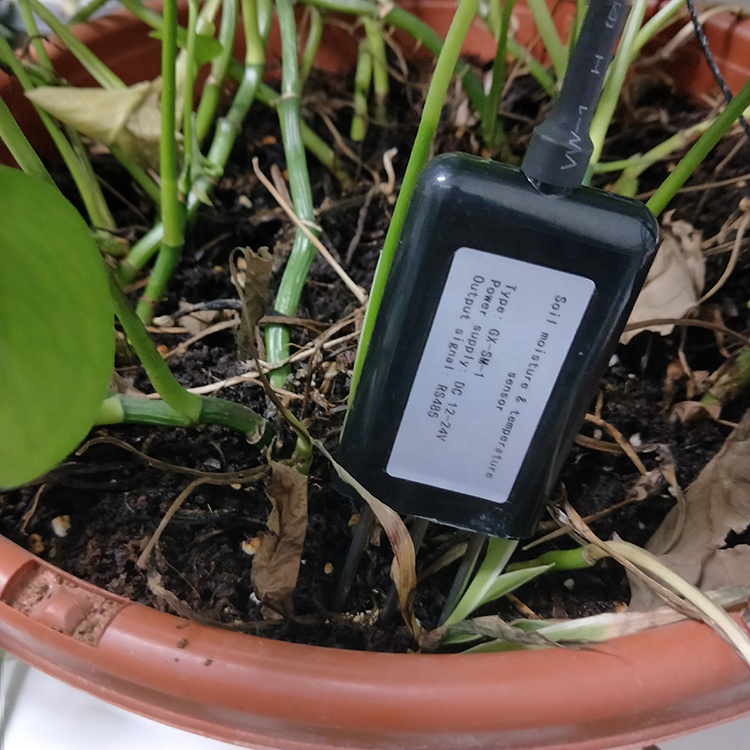

Application

● Agriculture irrigation
● Green house
● Grass farm
● Environment monitoring
● Water conservation
● Soil testing

Technical parameter
Parameters of the category
Moisture
EC
(Conductivity)
Temperature
Measuring range
0-100.00%
0-20000uS/cm (25℃) (0-20.0EC)
-40.00℃～85.00℃
Unit
V/V %,Volumetric moisture content of soil
uS/cm, Micro Siemens/cm
℃ centigrade degree
Resolution
0.01%
1 uS/cm
0.01℃
Accuracy
±3%（0-53%）；±5%（>53%）
2%FS, 2% of the value
Error < 0.3℃（-10℃～50℃）others <0.6℃
Swap precision
< 3%
< 2%FS
< 0.3℃
Repetition measurement error
< 2%
< 2%FS
< 0.2℃
Response time when powered
1 s
1 s
1 s
Measured stability time
< 2 s
< 2 s
< 2 s
Measurement principle
Frequency domain (FDR) add temperature and conductivity correction
Conductivity measurement, plus temperature compensation
RTD Thermal sensor, plus nonlinear correction
