Product Name: | SS Round Pipe |
Pipe Type: | Seamless, Welded, Square, Rec |
Outer Diameter: | 4mm-820mm |
Color: | Golden, Rose Gold, Silver, Black, etc |
Heat Resistance: | High |
Application: | Pipeline Transport, Medical Equipment.. |
Company Info. |
Jiangsu Pucheng Metal Products Co., Ltd |
Verified Supplier |
View Contact Details |
Product List |

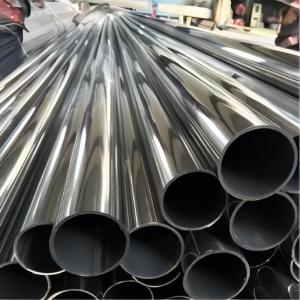

High Quality 2b Bright SS Round Pipe Tp201 304 310 73mm 105mm Outer Diameter
Stainless steel is an alloy of Iron with a minimum of 10.5% Chromium. Chromium produces a thin layer of oxide on the surface of the steel known as the passive layer. This prevents any further corrosion of the surface. Increasing the amount of Chromium gives an increased resistance to corrosion.
Stainless steel also contains varying amounts of Carbon, Silicon
and Manganese. Other elements such as Nickel and Molybdenum may be
added to impart other useful properties such as enhanced
formability and increased corrosion resistance.
Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤ 0.03 | 3.5-5.5 | 16.0-18.0 | - |
301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 16 .0-1 8.0 | 2.0-3.0 |
321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.013 | 17.0-1 9.0 | - |
410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤ 0.03 | ≤0.60 | 16.0-18.0 | - |
Item | Stainless Steel Seamless Pipe | |
Standard | ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789 | |
Material | 304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L,316N,201,220,2507,904l,2101 | |

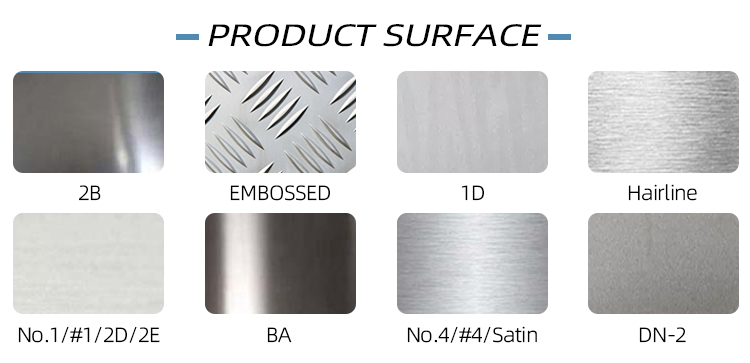

Surface | Pickling , Polished , Hairline , Mirror | |
Type | Hot rolled ,cold rolled / cold drawn | |
Stainless steel round pipe / tube | ||
Size | Wall Thickness | 1.24 - 59.54 mm (SCH5S-XXS) |
Outer Diameter | 10.3 - 1219mm (1/8"- 48") | |
Stainless steel square / rectangular pipe / tube | ||
Size | Wall Thickness | 1mm - 150mm(SCH10-XXS) |
Outer Diameter | 4mm*4mm - 800mm*800mm | |
Length | 4000mm,5800mm,6000mm,12000mm,or as required. | |
Price Terms | FOB,CIF,CFR,CNF,EXW | |
Delivery Time | Usually within 10 days, Prompt delivery or as the order quantity. | |
Package | Standard export seaworthy package,or as required. | |
Application | Widely used in petroleum,foodstuff,chemical industry,construction,
electric power, nuclear, energy, machinery, biotechnology,
shipbuilding, boiler fields. |
The SS Round Pipe has a thickness range of 1mm to 50mm and can be produced using both hot rolled and cold rolled techniques. This makes it suitable for a wide range of applications such as:
![]() |
