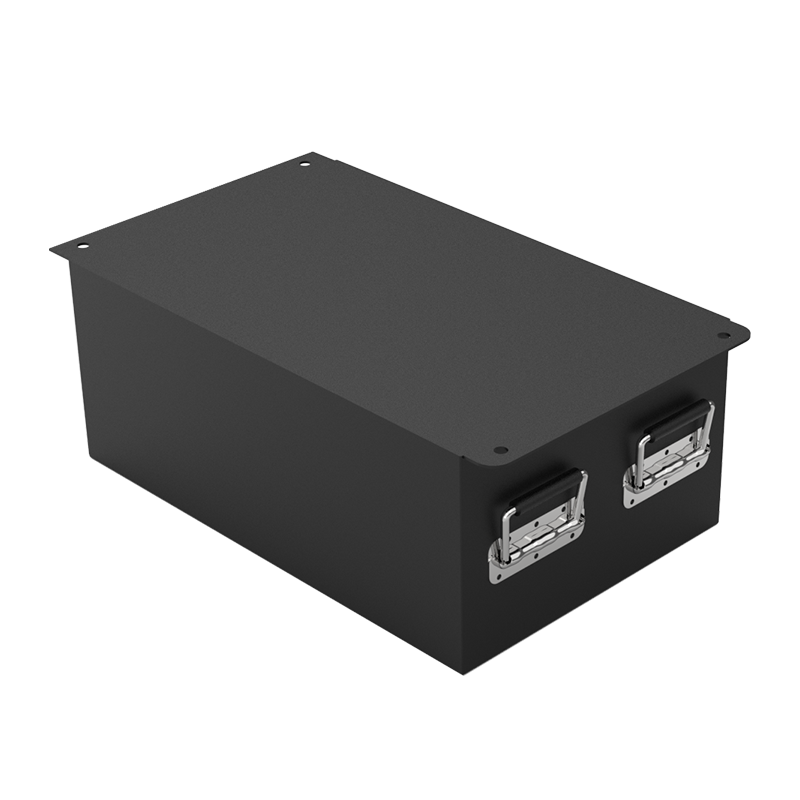

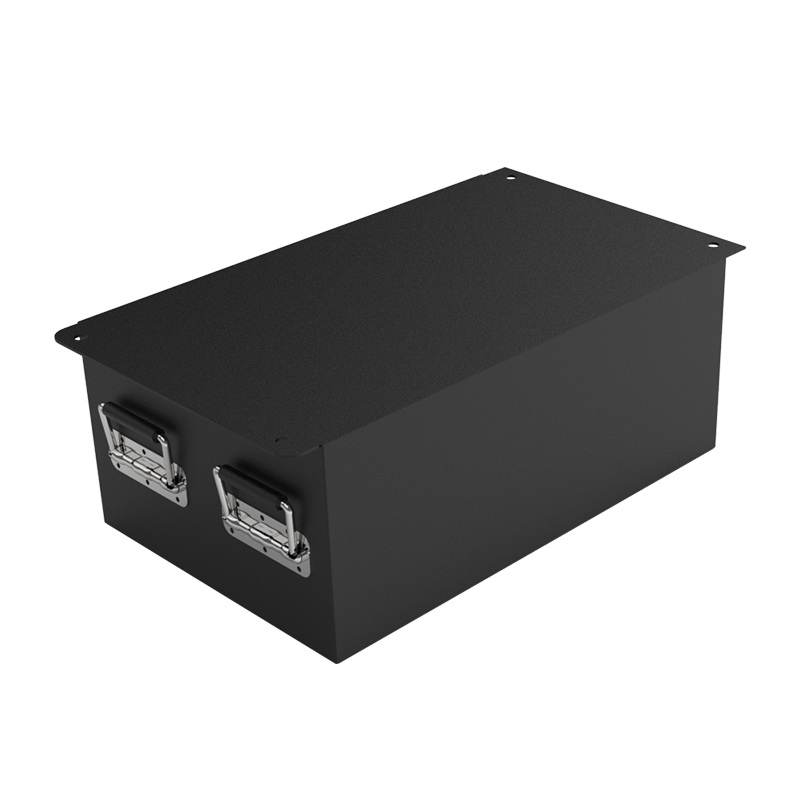

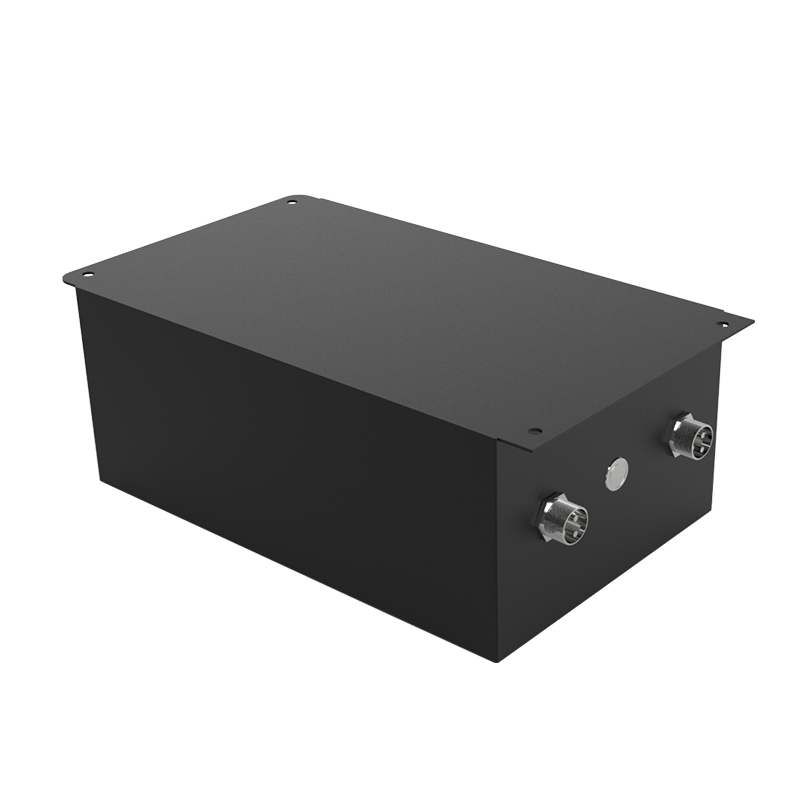

CLF OEM 48V 50AH Lithium Iron Battery Packs For Medical Machine And Instruments Golf Carts Robot UPS

Lithium Iron Phosphate Battery for Medical Devices

Battery cell model: LF105/52Ah/3.2V

Battery specifications: LF105-16S1P/50Ah/51.2V

Nominal voltage: 51.2V

Nominal capacity: 50.0Ah

Charging voltage: 58.4V

Charging current: ≤25.0A

Discharge current: 50.0A

Instantaneous discharge current: 70A

Discharge cut-off voltage: 40.0V

Finished product internal resistance: ≤100mΩ

Battery weight: ≤28.0kg

Product size: 230*310*410mm

Charging temperature: 0～55℃

Discharge temperature: -20～55℃

Storage temperature: -20～45℃

Battery casing: sheet metal casing

Intelligent lithium battery protection: power management (RS485, CAN protocol), short circuit protection, overcharge protection, over-discharge protection, over-current protection, over-temperature protection, etc.

Application areas: golf carts, robots, UPS, lawn mowers, etc.

Features

Low self-consumption;

The battery has its own temperature protection.

The battery pack is safe and has a long cycle life;

With 485 communication

The battery pack has a high cycle life and is in line with the value concepts of low carbon, energy saving and environmental protection;

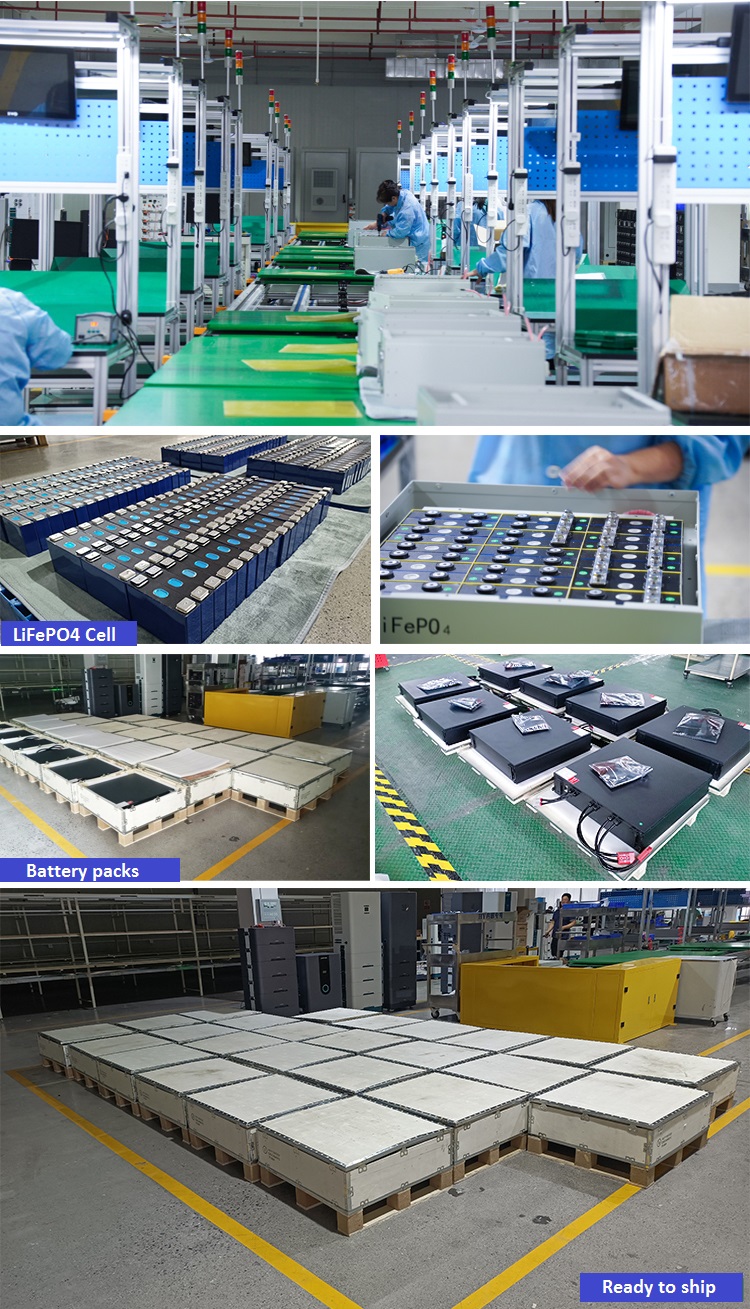

Production Details

From the battery cell to the battery pack, CLF controls every production link in strict accordance with the ISO9001 standard, arranges quality inspectors to check the process details to ensure the safety of the battery, and presents the best products to every customer.

Hunan Chalong Fly Technology Co., Ltd., established in 2000, a comprehensive enterprise dedicated to the research, development, production and wholesale of Lithium battery pack, solar energy storage products.

With a group of professional and technical personnel in Li-ion battery pack and solar power products, Chalong Fly has strong technical force, strong product development and production capacity.

With the leading level in the field of lithium battery PACK in China, Chalong Fly has obtained many invention and utility model patents, and has undertaken the R&D and production of special lithium-ion batteries and special-purpose backup power in some major national projects. We have provided a lot of personalized design and product manufacturing for many different customers at home and abroad.

All of our products have strict quality assurance and good after-sales service, which are highly reflected and evaluated by domestic and foreign users. Our products are suitable for industrial and commercial energy storage system, electric vehicles, machineries and equipments, logstic industry, boats and other industries.

With the concept of "hard work and people-oriented", Chalong Fly sincerely serves the electric power, communication, military and electric vehicle industries. We will continue to launch new products, improve product quality, and contribute to providing green energy and creating green life with the safest,most reliable and affordable high-performance products.
