| Categories | Battery Cell Grading Machine |
|---|---|
| Brand Name: | XWELL |
| Model Number: | XW-64 |
| Certification: | CE |
| Place of Origin: | Guangdong, China |
| MOQ: | 1pcs |
| Price: | USD 7900/pcs |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
| Delivery Time: | 15-20 days |
| Packaging Details: | Wooden box |
| Battery Type: | Prismatic Battery |
| Voltage and current: | 5V/10A; 5V/20A; 5V/30A |
| Heat dissipation: | to enter the air naturally and exhaust the air upward |
| Overall energy saving: | over 70% |
| Voltage measuring range: | 0-5V, 1MV resolution |
| Battery voltage range: | Charge 0-4.5V: Discharge 4.5-2V |
| voltage accuracy: | ±(1‰ reading +1‰ full) |
| Control mode: | Computer connection equipment work, FCL control |
| Company Info. |
| Guangdong XWELL New Energy Technology CO., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

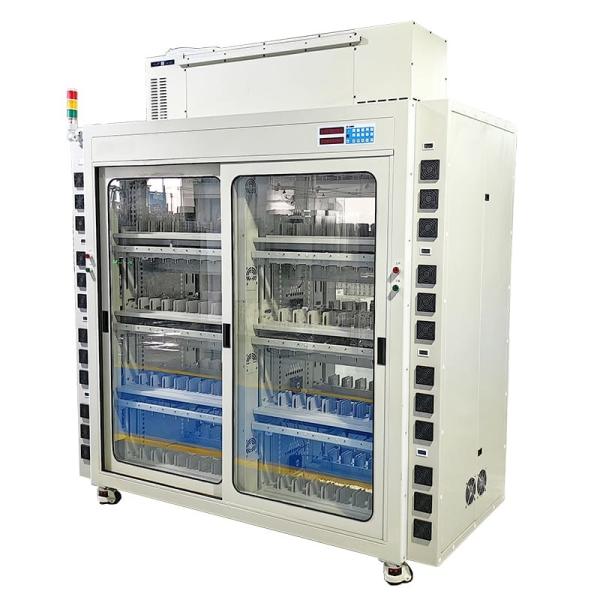

Lithium-ion battery charging and discharging test cabinet is a kind of equipment used to test Li-ion batteries. It can simulate various working states of lithium battery during charging and discharging, and also test and evaluate the electrical performance of the battery.
AC/DC Bidirectional Power Supply
The equipment adopts energy-saving AC/DC bidirectional power supply, with high charging efficiency and feedback of battery discharge energy to the power grid.As shown in the above figure, a portion of the battery discharge energy is used internally by the power supply itself, another portion is used by other charging devices, and the remaining portion is fed back to the power grid for use by other devices.
| Working power | Three-phase five-wire system AC380V±10%, 50HZ | ||
| Work environment | Temperature 0-40 degrees, relative humidity ≤80% | ||
| Heat dissipation | to enter the air naturally and exhaust the air upward | ||
| Overall energy saving | over 70% | ||
| Channel Parameter | |||
| Voltage measuring range | 0-5V, 1MV resolution | ||
| Battery voltage range | Charge 0-4.5V: Discharge 4.5-2V | ||
| Constant voltage range | 2.5V-4.5V | ||
| voltage accuracy | ±(1‰ reading +1‰ full) | ||
| Current accuracy | ±(1‰ reading +1‰ full) | ||
| Software Function | |||
| Control mode | Computer connection equipment work, FCL control | ||
| Communication mode | RS485 baud rate 57,600 | ||
| Process set | A maximum of 32 work steps and 256 cycles are se | ||
| Charging mode | Constant current, constant pressure | ||
| Charging cutoff condition | Voltage, current, time, capacity | ||
| Discharge | constant current | ||
| Discharge cut-off condition | Voltage, time, capacity | ||
| Defensive function | Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc | ||
| Time range | Set it anywhere from 0 to 30,000 minutes | ||
| Time accuracy | ≤±1‰ | ||
| Sampling inspection period | ≤3S | ||
| Minimum frequency of data recording | ≤5S | ||
| Battery sorting | By capacity, time, discharge platform, etc | ||
| Data processing | Data, graphs, and loop diagrams | ||
XWELL can provide different fixtures for different types of cells
|
