Group35 High Pressure Gear Pump Hydraulic 40cc -100cc 280bar Max

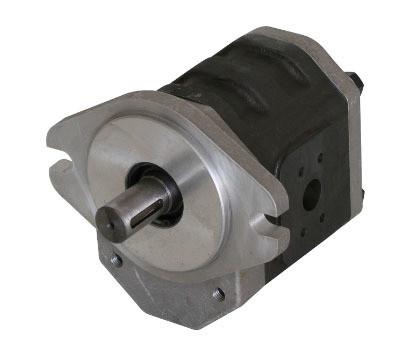

Group35 high pressure gear pump (40cc -100cc , 280bar max)

A high-pressure gear pump with a displacement range of 40cc to 100cc and a maximum pressure rating of 280 bar is a specific type of gear pump designed to generate high hydraulic pressure for demanding applications. Here are some key characteristics of this type of gear pump:

1. Displacement Range: The displacement range of 40cc to 100cc indicates the volume of hydraulic fluid that the pump can deliver per revolution. It determines the flow rate of the pump, with a larger displacement resulting in higher flow rates.

2. High Pressure Rating: The maximum pressure rating of 280 bar indicates the maximum hydraulic pressure that the pump can generate. This high-pressure capability makes it suitable for applications that require substantial force or pressure, such as heavy machinery, hydraulic presses, or industrial systems with high-pressure requirements.

3. Gear Pump Design: A gear pump operates by using intermeshing gears to transport fluid. In this case, the high-pressure gear pump will have a robust design with high-quality materials to handle the increased pressure levels. It may feature precision-ground gears, hardened surfaces, and durable bearings to ensure reliable operation under high-pressure conditions.

4. Compact Size: High-pressure gear pumps are often designed to be compact and space-efficient. This allows for easier integration into hydraulic systems with limited space, such as mobile equipment or machinery with size constraints.

5. Application Compatibility: The flow rate and pressure capabilities of this gear pump make it suitable for various applications, including material handling equipment, construction machinery, hydraulic power units, and other industrial systems that require high-pressure hydraulic power.

Gaudent Technologies Group is a design and sales company of electromechanical and hydraulics devices, founded in 2009. The founders, went back as key member of Prestolite brand high management, Mengli Electric and Golden Arch team. Cooperation Center located in Shanghai as headquarter, representative branch in Italy , U.S.A and Vietnam. Mainly Own Motor and Gear Pump manufatcure located in Shanghai、Wuxi and Ningbo city. Also another hydraulics parts OEM located in Ningbo and Ruzhou. From beginning of 2023, Gaudent start to establish Vietnam Operation to assembly Power unit and Motors. We provide not only components, but also motion solution, oversea logistic and warehouse service as integrated supply. Within these manufacture production capacity supporting , we can offer over 500k pcs motor , 200k pcs pump and thousands models other components per year. Main selling region cover European , U.S.A , India , Vietnam , South Korea , Middle-east and South East Asia.In 2021 years, annualized sales of $14.8 million who focus on material handling, construction, marine and vacuum cleaning markets.
