Product Description

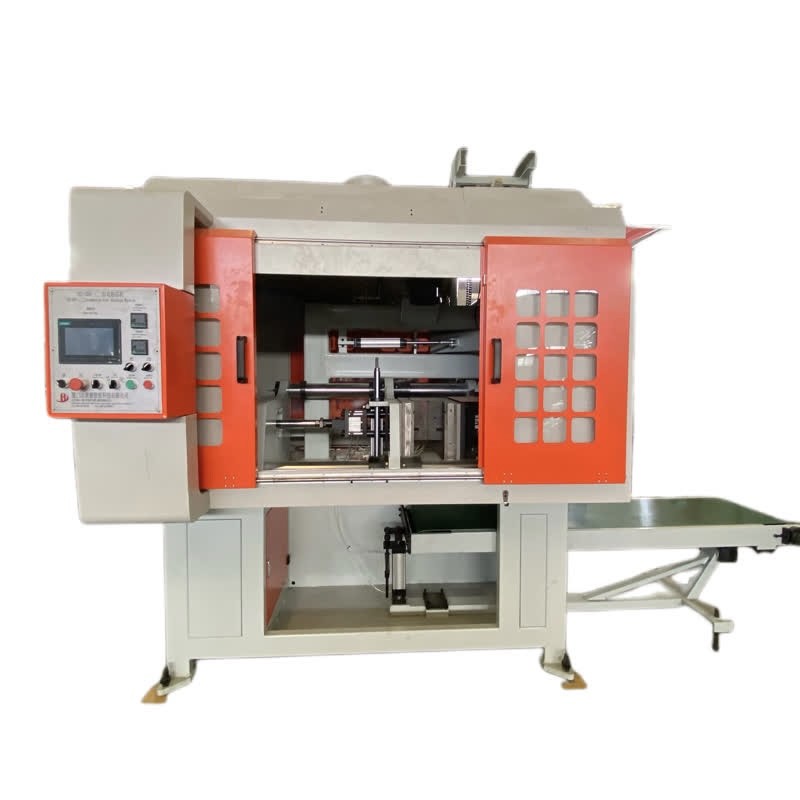

Automatic Casting Sand Core Making Machine For Compression Brass Plumbing Fittings

Machine construction features

1. human-machine interface and imported high quality electronic control and pneumatic components to ensure accurate and reliable control and easy operation.

2. there are three modes: manual, single action and automatic.

3. the shooting port is 70 degrees to the sand, away from the high temperature area, so that the perforation is easy to manually clean.

4. The machine is equipped with integral moving mechanism of the base, which can make the base move along the X and Y axes, so that the perforation of the opposite mold into the sand hole more convenient and accurate.

5. The movable die is equipped with the core pulling rack to meet the special requirements of the mold. If you do not use core pulling, close the core pulling switch.

6. The angle of the quicksand in the sand storage bucket reaches 70 degrees and is equipped with a vibrating motor. It is suitable for the use of collapsible core sand with poor fluidity in the copper casting and aluminum industry.

7. With mold adjustment space, it is convenient to assemble different molds and reduce the requirements for the die size.

Packaging & Shipping
1.Outside package: Standard export wooden cases;
2.Inner package: Stretch film;
Shipping: Container transport.

Xiamen DingZhu(DZ) Intelligent Equipment Co.,Ltd was founded in 2016, which was principally engaged in research,development and manufacture of automatically equipment for foundry industry used in plumping hardware,sanitary ,car spares ,valves etc.We provide automatic core shooting machine,gravity die casting machie,automatic Low Pressure Die Casting machine (LPDC), robotic cell grinding and polishing machines.

Above equipments are based on the comprehensive similar product at Domestic and foreignand independent development to adapt to Domestic and foreign of special.

DZ’s factory located in NO.36 Qingxi Road,Guankou Town,Jimei District Xiamen City,Fujian Province.It just takes about 30 minutes to the Gaoqi(Xiamen) Airport,nearly seaport and highway ,so the traffic is very convenient.

Our working process includes a feasibility study and definition of the project and the design, manufacture, predelivery, training, set up and start up and after-sales service.

Corporate Culture

Dingzhu’s Vision: to be the worldwide famous brand supplier of providing total solutions to customers requirement.
Dingzhu’s Mission: to improve labors tough working environment, enhance work efficiency, completely help owners to reduce production cost.
Dingzhu’s Philosophy: human-oriented, honest, innovative and make the greatest contribution to society.
Dingzhu’s Service: with excellent technology and products, professional dedication to serve customers.
Dingzhu’s Value: innovation, advanced technology’s R&D, serving China and worldwide’s manufacturing industries.

ADVANTAGES OF COMPANY

1) Most competitive price and quality.

2) Auto working, easy operation, save labour.

3) Short delivery time.

4) Import and Export License.

5)After-sales service:Engineers available to serve overseas and Instant service on line.

DZ is looking forward to cooperating with your company and be an active part to your success.

Our Team

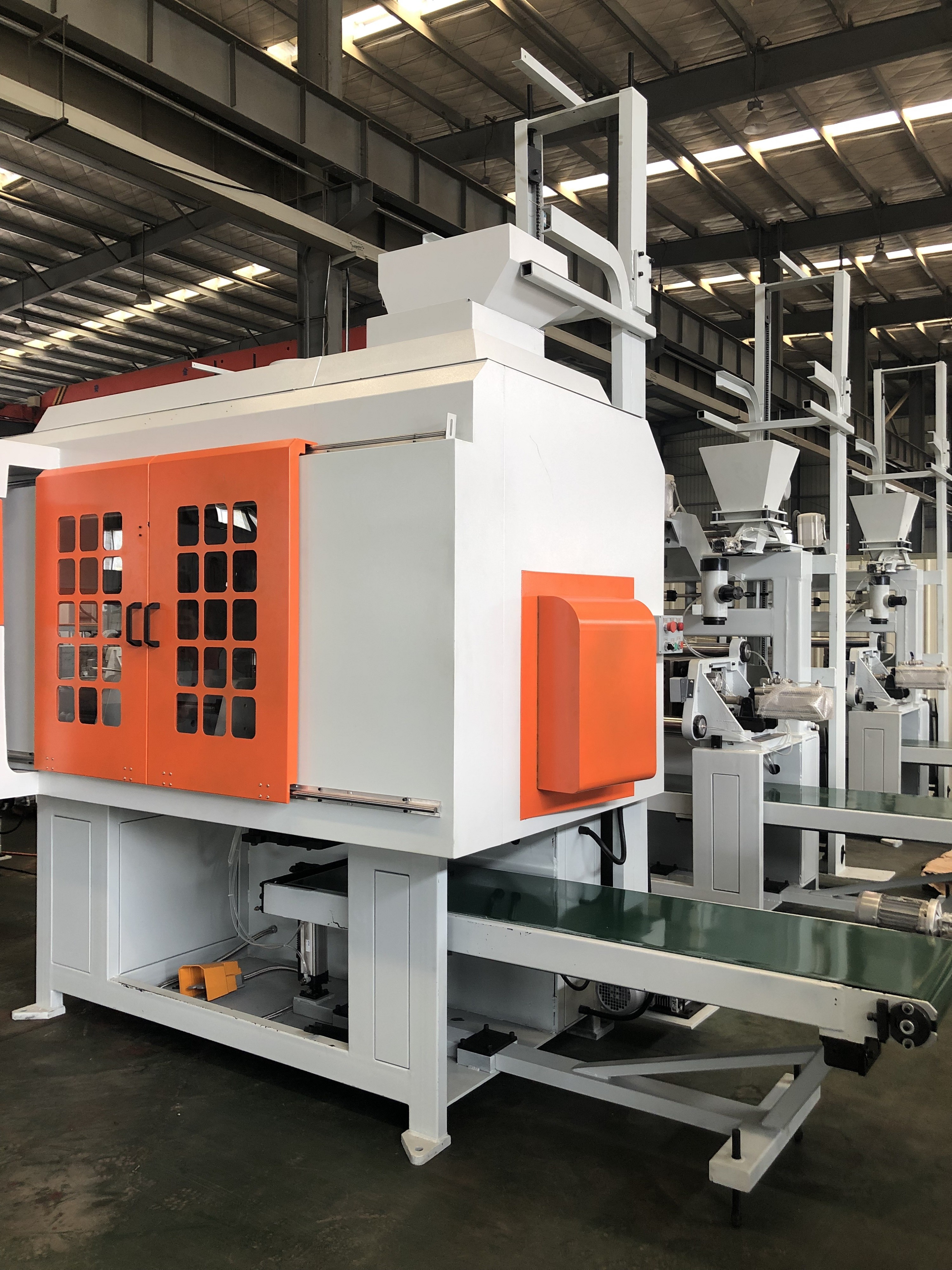

Our Factory

Iran's coustomers visit our factory

India's customers visted our factory
