Corner Rounding End Mill Cutter Bit Carbide Corner Round End Milling Tool for Milling Cutter CNC

Categories Corner Rounding End Mill
Model Number: N550TC
Place of Origin: MADE IN CHINA
Brand Name: KTC
Certification: CCC
MOQ: 10 pcs
Price: Negotiation
Packaging Details: 1PC/ PVC Packing, 10pcs PVC Packing/Pack...
Delivery Time: 1-35days
Payment Terms: T/T, L/C,Paypal...
Supply Ability: 10000pcs/week
Product Name: Corner Rounding End Mill Cutter Bit Carbide Corner Round End Milling Tool for Milling Cutter CNC
Raw Material: YL10.2 / K30
Co: 10%
Coating: TiSiN
Hardness: >91.5HRA
Cutting Diameter: As requested
Upto: HRC55
Suitable for: Aluminum,plastic and other materials
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

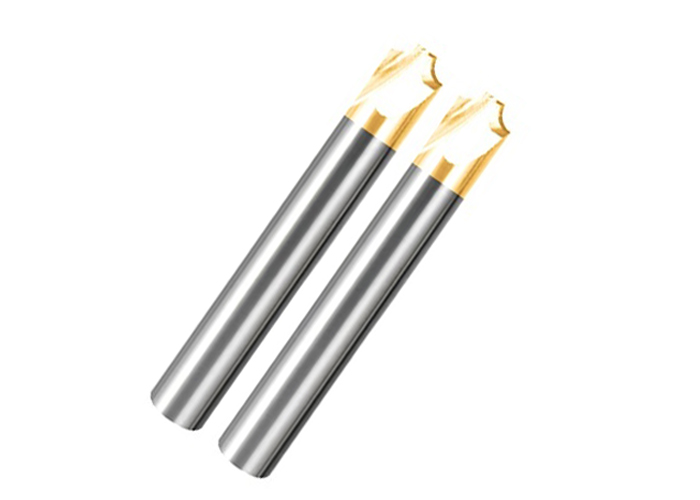

Corner Rounding End Mill Cutter Bit Carbide Corner Round End Milling Tool for Milling Cutter CNC

Corner Rounding End Mill Cutter Bit Carbide Corner Round End Milling Tool for Milling Cutter CNC


The Solid Carbide Corner Rounding End Mills are used for rounding edges of workpieces. The straight flute ensures a precise radius without profile distortion .
The outlet slope of 5 ° at both Sides of the Radius allows a clean and easy produce of round workpiece outer edges.
Our Solid Carbide quarter circle cutters have a corrected landwidth, in the radius range, so that a good stability of the cutting edge is generated .

Specifications


Raw MaterialYL10.2 / K30
WC90%
Co10%
TRS>4100N/mm2
Hardness>91.5HRA
A.O.L50mm-75mm
Grain size0.8μm
UptoHRC55
Flutes No4F
CoatingTiSiN
Suitable forAluminum,plastic and other materials

Standard Sizes

NameSize
Corner Radius End Mills/Milling cuttersφ4*50*Inner R0.5-2T/4T
φ4*50*Inner R0.75-2T/4T
φ4*50*Inner R1-2T/4T
φ6*50*Inner R1-2T/4T
φ6*50*Inner R1.5-2T/4T
φ6*50*Inner R2-2T/4T
φ8*50*Inner R2.5-2T/4T
φ8*50*Inner R3-2T/4T
φ10*60*Inner R4-4T
φ12*60*Inner R5-4T
φ14*75*Inner R6-4T


HISTORY


XINPENG TOOLS is established from 2003, with near 20 years' experience in designing and manufacturing solid carbide end mill cutters and other cutting tools, like CNC insert,thread Mill Cutter, tungsten saw blade, we offer Customized Milling Tools also.

On 16th, June 2003, CHANGZHOU XINPENG TOOLS MANUFACTURING CO.,LTD was formally registered and established.

In October 2003, A professional R&D team was set up to develop new product projects, laying a solid foundation for future development.

In 2005 3 AXIS CNC grinders were imported from Taiwan.

In 2007, XINPENG TOOLS expanded the factory scale from 1000 square meters to 5000 square meters.

In 2009, Zoller Inspection machine was imported from Germany.

In 2011, Dongguan Branch was established to deal with after-sales problems for customers in South China.

In 2012, more high-precision CNC grinding machines and other world-class processing equipment were imported From Germany.

In 2013,tool measuring instruments, fine-tuning instruments,OD run out instruments and other tool detection equipment were imported.

In 2014, The production department continued to increase the number of machines, including grinders and DMG laser machines imported from Germany, and the production capacity of the products reached a new level.

In 2015, The company established the ministry of foreign trade, which is mainly responsible for the foreign market, to increase our company's competition in the same industry abroad.

In 2016, KTC branch was registered and established.

In 2017, We purchased German saacke five-axis CNC machines and haller CNC machines.

In 2019,We invited foreign experts to guide our work and provide theoretical learning for our engineers.
