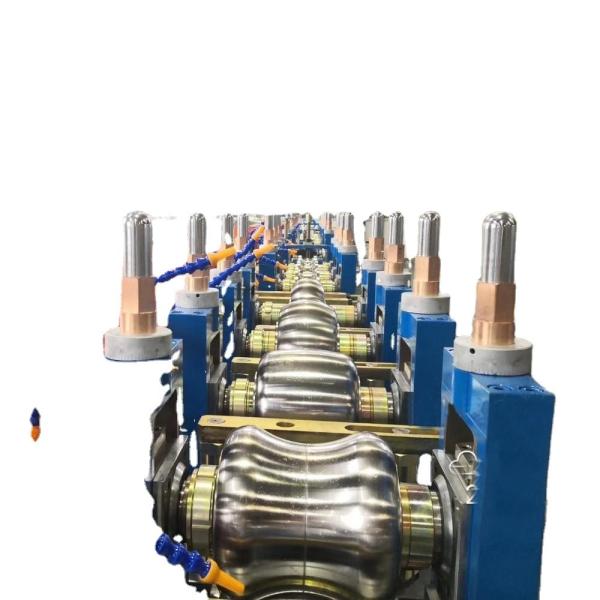

380V 100kw Stainless Steel Pipe Making Machine Tube Mill

380V 100kw Stainless Steel Pipe Making Machine Tube Mill

380V 100kw Stainless Steel Pipe Making Machine Tube Mill
380V 100kw Stainless Steel Pipe Making Machine Tube Mill
Categories Stainless Steel Pipe Making Machine
Place of Origin: Jiangsu, China
Brand Name: HRF
Packaging Details: Naked packaging (0.2-2.2)x(8-38)mm High precise ss tube mill machine steel tube mill tube machine
Supply Ability: 1 Set/Sets per Month
Price: $80,000.00/sets 1-1 sets
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops
Showroom Location: Turkey, France
Video outgoing-inspection: Not Available
Machinery Test Report: Not Available
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: PLC, Engine, Gearbox, Motor, Pressure vessel
Condition: New
Type: Pipe Production Line
Pipe Material: Stainless steel
Application: Energy Supply Pipe
Production Capacity: 5m/min~25m/min
Voltage: 380V
Power: 100kw
Dimension(L*W*H): 20x2x1.5m
Weight: 30 kg
Warranty: 1 Year
Key Selling Points: Long Service Life
After-sales Service Provided: Engineers available to service machinery overseas
Function: welded tube mill
Thickness of Strips: 0.20mm~2.0mm
Size of the diameter: 8mm~38mm
Maxi. Load Weight: ≤4000kgs
Length: 2m~8m
Produce speed: 5m/min~25m/min
I.D. diameter of coil: 450-550mm
O.D. diameter of coil: e.1800 mm Max.
Port: shanghai (0.2-2.2)x(8-38)mm High precise ss tube mill machine steel tube mill tube machine
Contact Now
Company Info.
WUXI HAI ROLL FONE SCIENCE&TECHNOLOGY CO.,LTD.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

380V 100kw Stainless Steel Pipe Making Machine Tube Mill

product description

1.Spiral steel pipe production process: spiral steel pipe made of steel coiled coil as raw material, often heated and extruded, and welded by automatic double wire double-sided submerged arc welding process. 2.The characteristics of spiral steel pipe: straight seam welded pipe has simple production process, high production efficiency, low cost and rapid development. The strength of the spiral welded pipe is generally higher than that of the straight welded pipe. It is possible to produce a welded pipe with a larger diameter by using a narrow blank, and it is also possible to produce a welded pipe of different diameter with a blank of the same width.Most of the smaller diameter welded pipes are straight seam welded, while the large diameter welded pipes are mostly spiral welded. 3.Spiral tube material: Q235A, Q23b, 0Cr13, 1Cr17, 00Cr19Ni11, 1Cr18Ni9, 0Cr18Ni11Nb. Q345 L245 L290 X42 X46 X70 X80

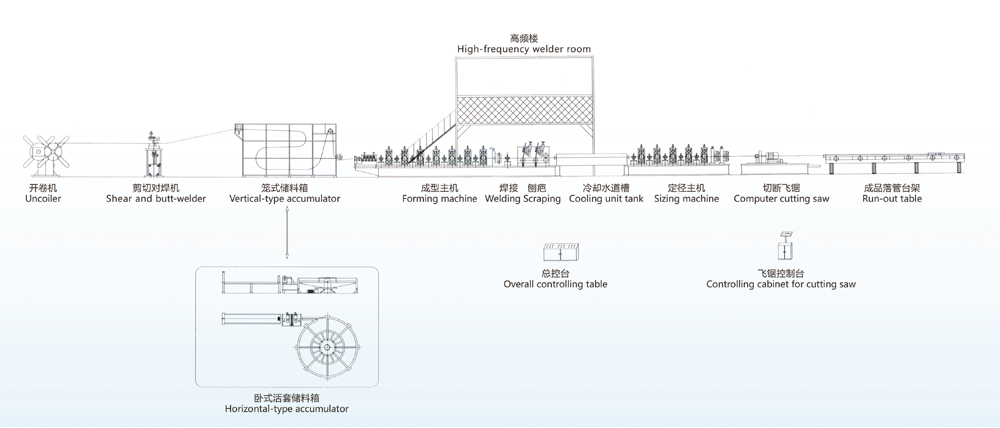

The whole lineflowchart

Raw material (steel coil) → uncoiling →material accumulating → non-power leveling →mill-forming → high-frequency welding → removing burrs outside of weld seam →zinc→ cooling → sizing → roughly straightening → fixed length cutting → run-out table
Main Parameter
NO.
ITEM
WORKING RANGE
REMARK
1
Round pipe diameter
Φ20mm～Φ100mm
2
Round pipe thickness
1.0mm～4.0mm
3
Square tube size
40×40～100×100mm
4
Square tube thickness
1.0mm～4.0mm
5
Produce speed
20M/min～60M/min
6
Length
4M～8M
Steel Strips Specification
NO.
ITEM
WORKING RANGE
REMARK
1
Thickness of strips
1.0mm～4.0mm



Q195,235
2
Width of strips
140～400mm
3
O.D. of steel coil
Φ800mm～Φ1600mm
4
I..D. of steel coil
Φ450mm～Φ550mm
5
Maxi. Load weight
≤10000kgs

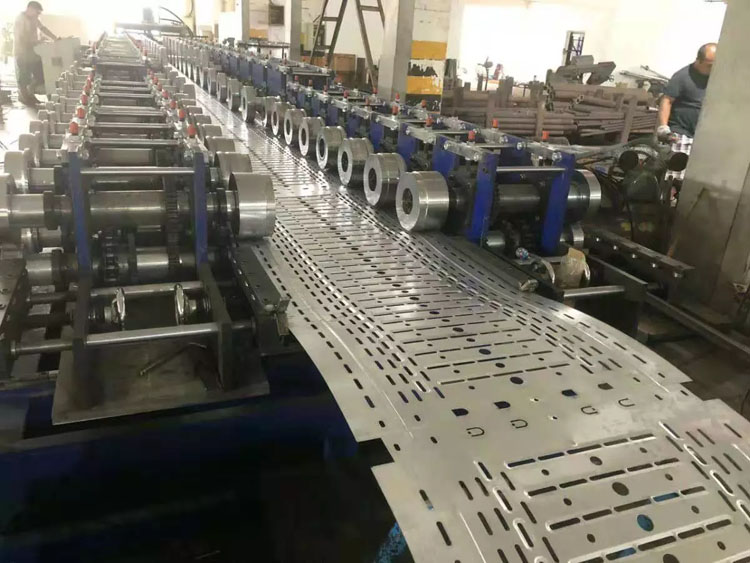

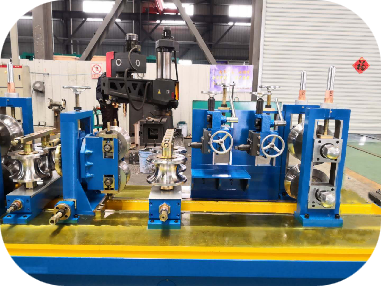

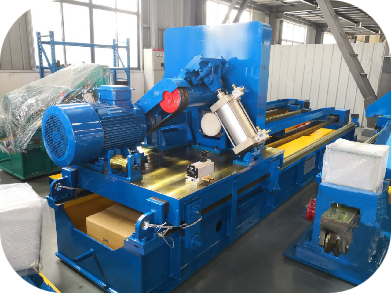

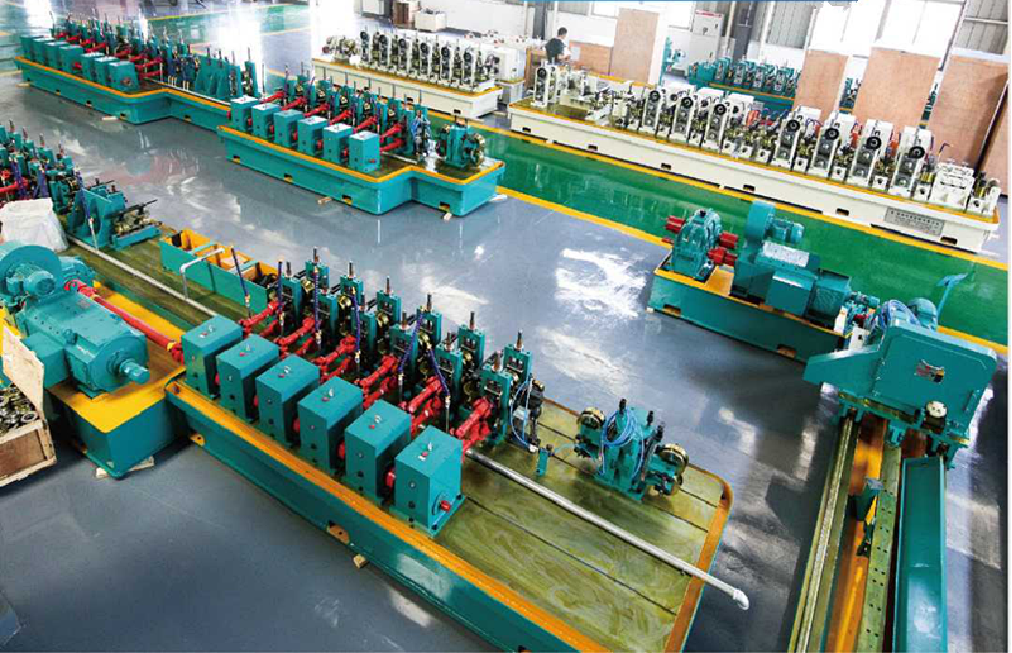

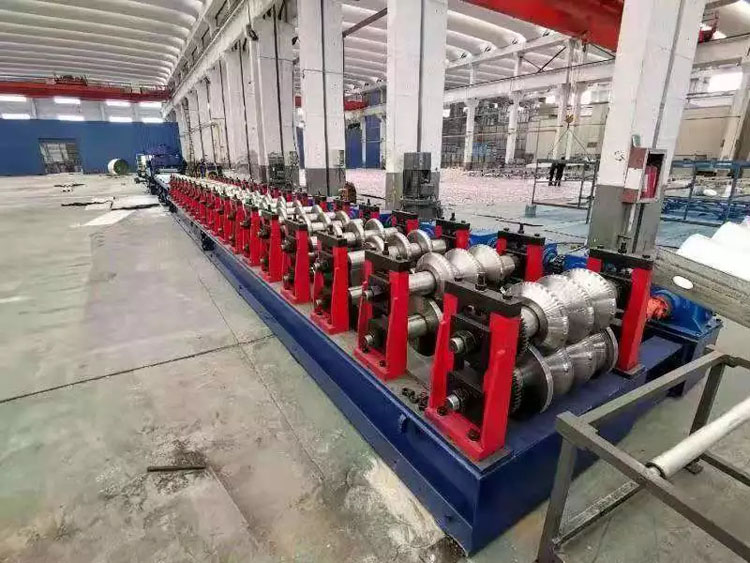

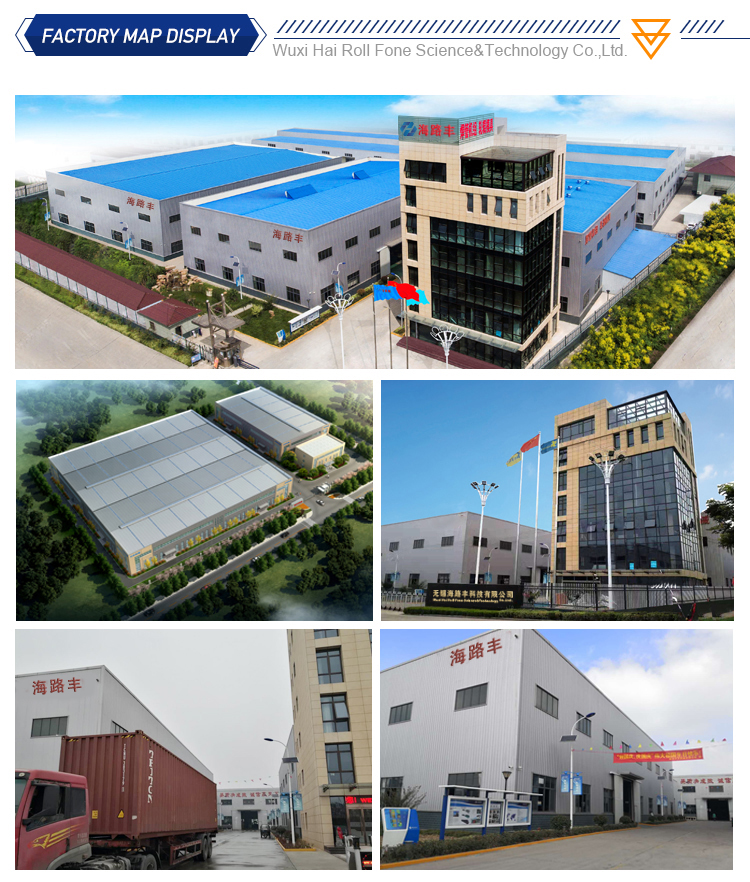

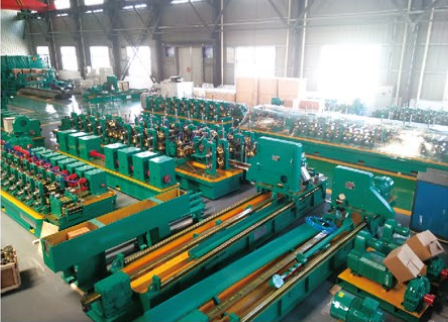

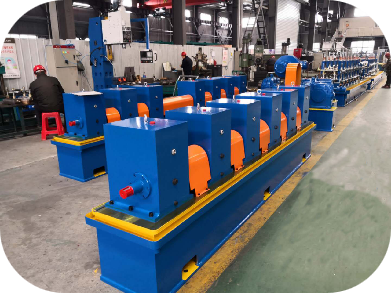

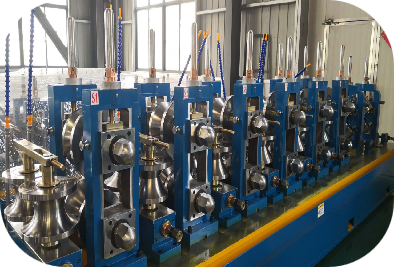

Factory Show

Product Advantage

1.Technological process of the production line is concise, compact layout, advanced technology, put an end to produce defects, comprehensive energy consumption is low, simple operation and maintenance, low operating cost. 2.Production line adopts the standard electrical, instrumentation components and equipment components meet the needs of the buyers,Control system has the maintainability and expansibility; And ensure the advanced technology, during normal operation can automatic complete all real-time detection and adjusting function, have interlocking function to prevent wrong operation, Do all the operation, monitoring on main operating platform .Display and handle the alarm.
Other Products
Click Here Send Me Inquire
Back To Homepage

Company Profile


Wuxi Hail Roll Fone Science&Technology Co., Ltd.is a professional production of mask machines,welded pipe unit, Slitter, rolling mill series equipment manufacturers, with more than 20 years of production history, in the industry. Our equipment has won many, including 4 patented products and 3 high-tech products. Our company is the preferred equipment purchasing unit for large and medium-sized enterprises at home and abroad. The company's products are sold to more than 50 countries around the world and are widely praised by customers.
Wuxi Hail Roll Fone Science&Technology Co., Ltd.is a professional production of mask machines,welded pipe unit, Slitter, rolling mill series equipment manufacturers, with more than 20 years of production history, in the industry. Our equipment has won many, including 4 patented products and 3 high-tech products. Our company is the preferred equipment purchasing unit for large and medium-sized enterprises at home and abroad. The company's products are sold to more than 50 countries around the world and are widely praised by customers.
product Packing

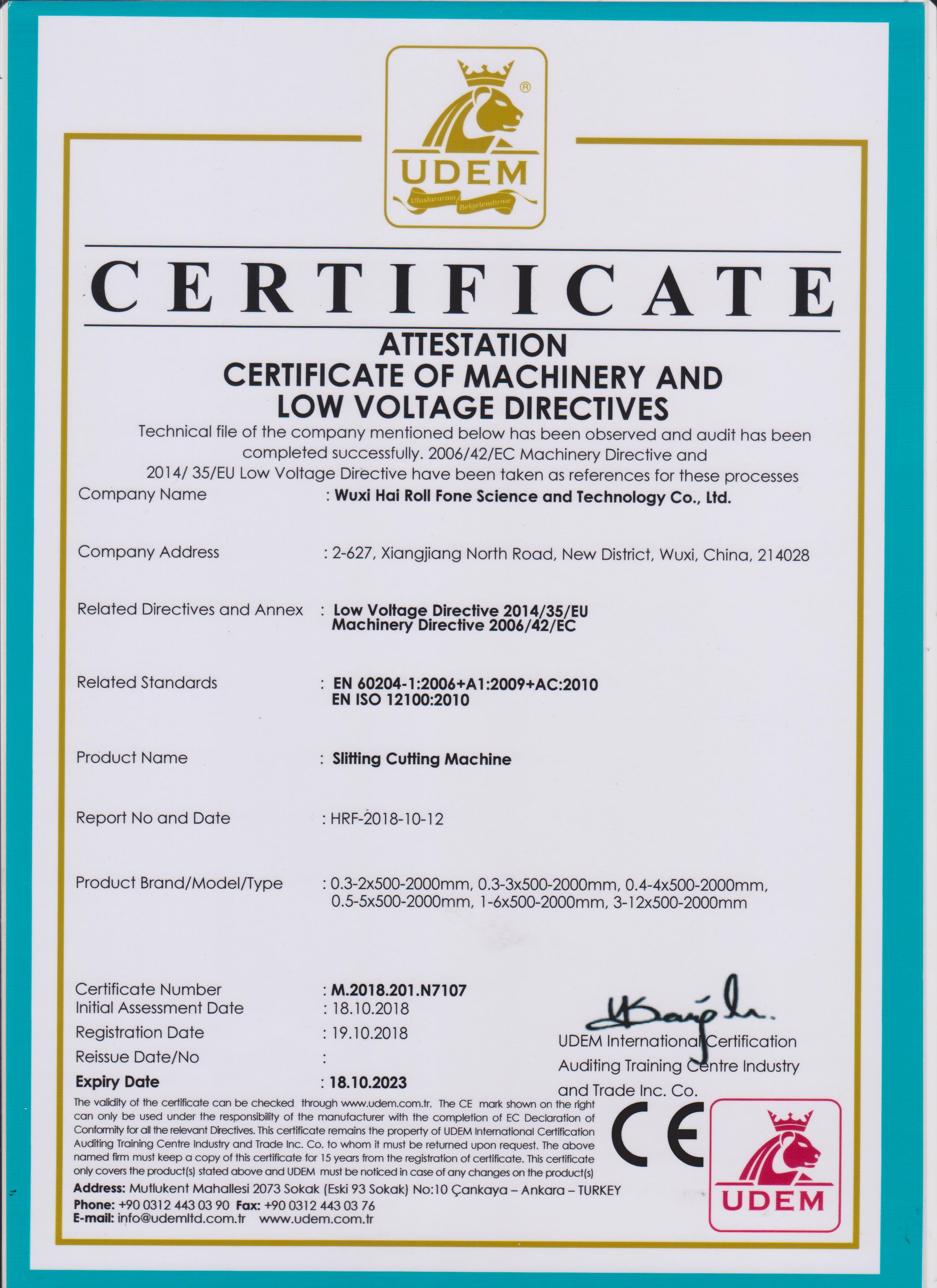

certified product


Customer Photos

FAQ

1.Does one machine can only produce one size? Not exactly, it depends on the machine. 2. Do you have after-sales support? Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed. 3. How to visit your company? We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North. 4. What can you do if the machine is broken? Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment. 5. Can you be responsible for transport? Yes, please tell us the destination port or address. we have rich experience in transport. 6. You are a trade company or factory? We are a Manufacturer. 7. Why your price is higher than others? As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem. 8. Do you have overseas engineers? Yes, we not only provide overseas engineers but also provide technical training. 9. Do you provide customized? Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.
