H13 H14 HEPA And ULPA Filters U15 U16 U17 Mini Pleat HEPA Filter Glass Fiber

H13 H14 HEPA And ULPA Filters U15 U16 U17 Mini Pleat HEPA Filter Glass Fiber

H13 H14 HEPA And ULPA Filters U15 U16 U17 Mini Pleat HEPA Filter Glass Fiber
H13 H14 HEPA And ULPA Filters U15 U16 U17 Mini Pleat HEPA Filter Glass Fiber
Categories HEPA & ULPA Filters
Brand Name: HF
Model Number: HF-WGB
Certification: ISO9001
Place of Origin: Shenzhen China
Filter Frame: Aluminum or Galvanized
Application: Filtering 0.3 microns or less suspended particles in the air
Material: Glass Fiber
Size: 610x610x50(Customize Available)
Feature: Individually scan tested
Recommend Final Pressure Drop: 400Pa
Efficiency: H13(Customize Available)
Rated Air Flow: 1700m³/h
Contact Now
Company Info.
Shenzhen Healthy Filters Co.,LTD
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

H13 H14 HEPA And ULPA Filters U15 U16 U17 Mini Pleat HEPA Filter Glass Fiber

H13 H14 HEPA and ULPA U15 U16 U17 Mini Pleated HEPA Filter Glass Fiber for Supply & Exhaust air systems

SPECIFICATIONS

FILTER FRAME
Aluminum or Galvanized
APPLICATION
Filtering 0.3 microns or less suspended particles in the air
MEDIA
Glass Fiber
EFFICIENCY
H13(Customize Available)
SIZE
610x610x50mm(Customize Available)
RECOMMENDED FINAL PRESSURE DROP
400 Pa
Feature
Individually scan tested

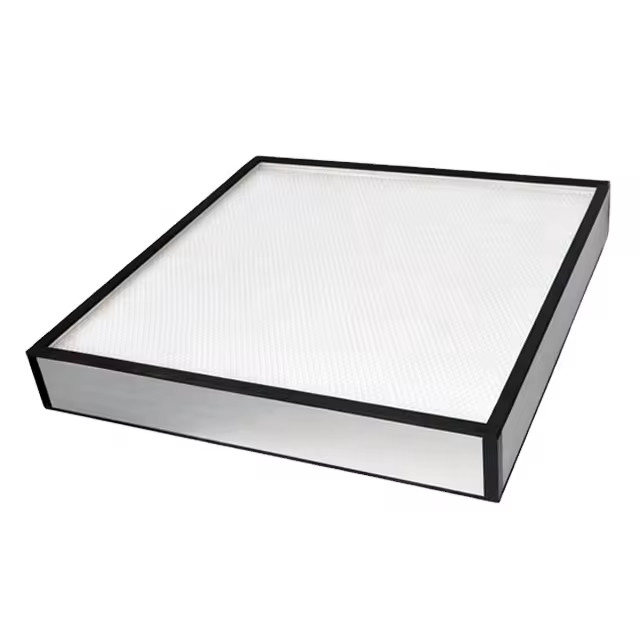

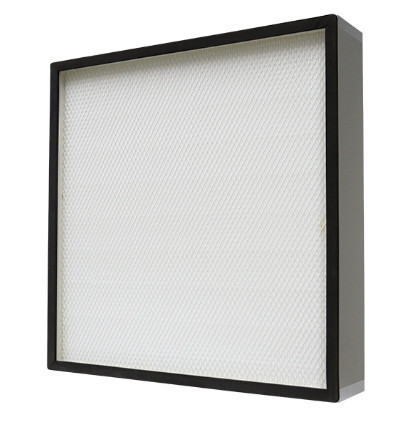

Mini Pleated Hepa Filter
1.Adopting the superfine fiberglass filter paper or PP high efficiency filter paper as the media,separated by hot melt adhesive.
2.Filtering 0.3 microns or less suspended particles in the air.
3.High efficiency,light weight and long service life.
4.Size:Customized

Size(mm)
Rated
Airflow(m3/h)
Filter HFea(m2)
Dust Holding Capacity (g/m2)
Initial Pressure Drop(Pa)
Final Pressure Drop(Pa)
Average
arrestance
484x484x50
500
4.6
300
<220
400
>99.99%
610x610x50
800
7.5
450
<220
400
>99.99%
305x305x69
260
2.5
150
<220
400
>99.99%
484x484x69
700
6.6
400
<220
400
>99.99%
610x610x69
1100
10.7
650
<220
400
>99.99%
915x610x69
1600
16
950
<220
400
>99.99%
1220x610x69
2200
21.3
1000
<220
400
>99.99%
610x610x90
1500
14.9
900
<220
400
>99.99%
915x610x90
2000
22.3
1200
<220
400
>99.99%
1220x610x90
2800
29.8
1800
<220
400
>99.99%
