A high-end device capable of measuring bearing asymmetry
Pushing the boundaries of innovation, the DM600S stands as DALA's
pinnacle in 3D die profile measurement. Harnessing the latest in
optical imaging technology, it sets a new standard for precision
and performance.

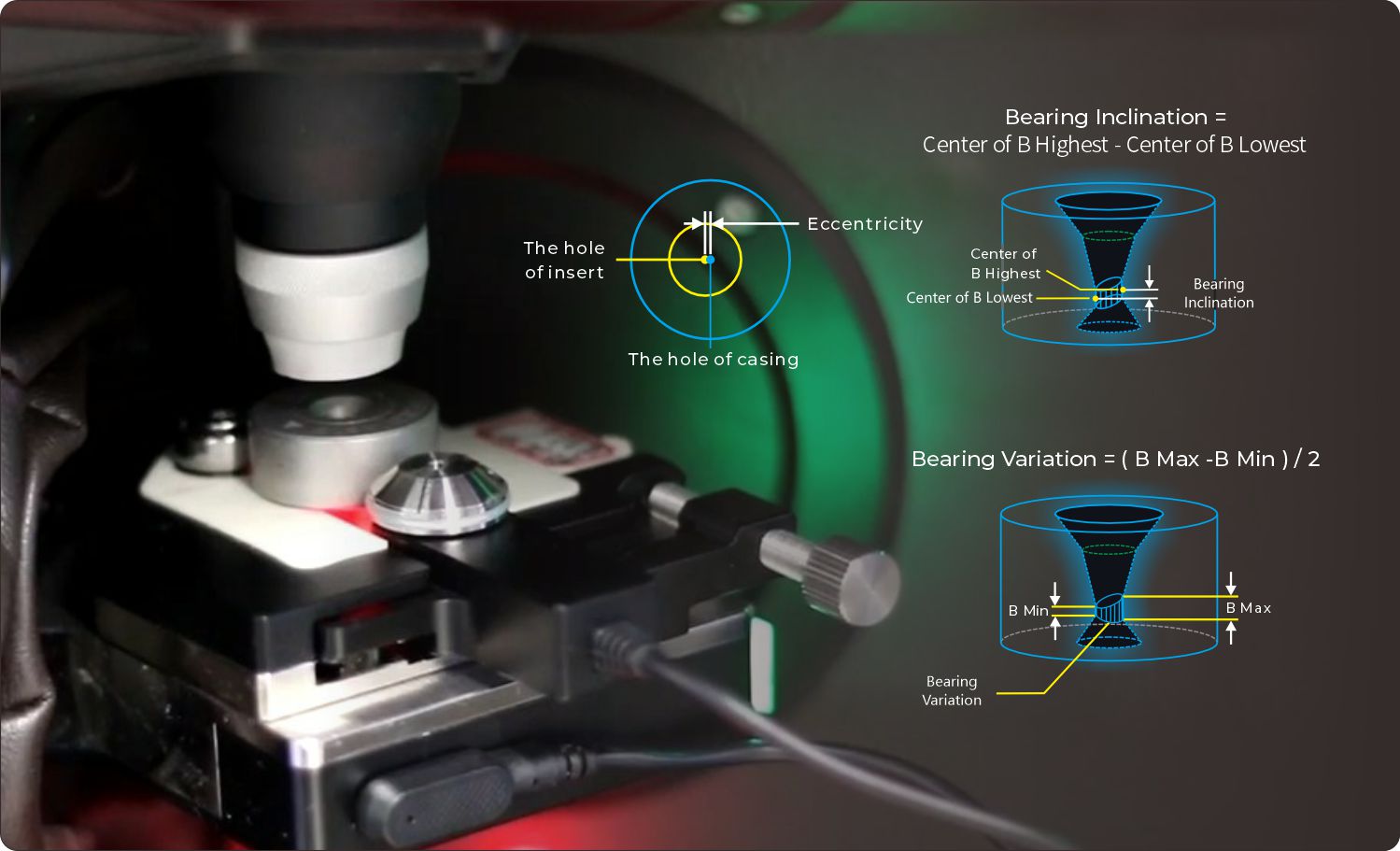

This instrument measures bearing length,reduction cone angle
,diameter and ovality and bearing asymmetry.
Easy to Operate
Operator can monitor the surface of dies(suchas breakage, dust )on
screen.Powerfulvisibility of result displaying
area makes it ispossible to check data at a distance.
High efficiency and accuracy
The software is very easy to operate. Fix the die on the holder,
then single press start button to conduct measurement . The single
profile measurement time is 8 seconds and 4-axis asymmetry
measurement time is about 24 seconds . The operator doesn't need
any
computer professional knowledge to fulfil the measurement .

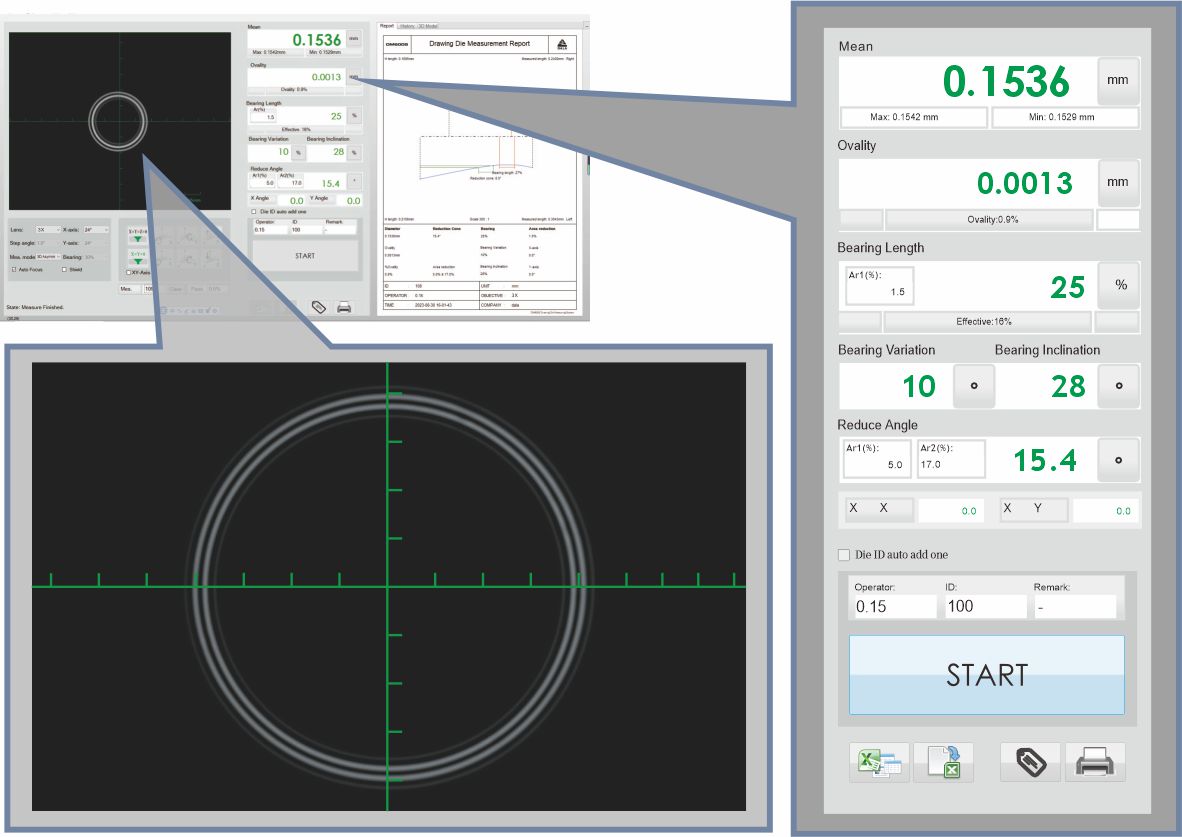

Measurement Report
Parameters
| Objectives | 2D measurement range | 3D measurement range |
|---|
| 20X | 0.015~0.060mm(0.00059~0.0024 inch) | 0.020~0.030mm(0.00079~0.00118 inch) |
| 10x | 0.030~0.450mm(0.00118~0.0177 inch) | 0.030~0.110mm(0.00118~0.0043 inch) |
| 3X | 0.110~1.600mm(0.0044~0.0630 inch) | 0.110~0.800mm(0.0043~0.0315 inch) |
| 1X | 0.350~5.000mm(0.0138~0.1969 inch) | 0.400~4.500mm(0.0157~0.1772 inch) |
| 0.5X | 0.70~10.000mm(0.02756~0.3937 inch) | 0.800~9.000mm(0.0315~0.3543 inch) |
