| Categories | GI Steel Coil |
|---|---|
| Brand Name: | Yinghang |
| Model Number: | 0.15 x665x2400mm |
| Certification: | SGS,ISO |
| Place of Origin: | China |
| MOQ: | 25 tons |
| Price: | according to the material market |
| Supply Ability: | 1000tons per month |
| Delivery Time: | 15days after deposit |
| Packaging Details: | export standard packing |
| Product name: | Galvanized Zinc Courrugated Roofing Sheet |
| Application: | roofing,Construction |
| Surface treatment: | Zinc Coated |
| Technique: | Hot rolled/cold rolled/galvanized Surface Treatment |
| Length: | according to the customer's requirements |
| Width: | 600mm-1500mm |
| Grade: | SGCC/DX51D/DX52D/DX53D |
| Standard: | ASTM,JIS |
| Special use: | corrugated steel sheet |
| Zinc coating: | 30-275g/m2 |
| Surface: | Galvanized Coated |
| Thickness: | 0.13-3mm |
| Spangle: | Big Medium Small Zero |
| Company Info. |
| Hebei Yinghang Trade Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Galvanized Zinc Corrugated Roofing Sheet
Galvanized Corrugated Sheet is produced by galvanized coil.The Type
indlue decking sheet,wave roofing,antique tile and so on.widely
used in warehouse,factory,exhibition center.it can be used both for
wall and roof.
Galvanized Zinc Coated Corrugated Steel Sheet Roofing has the
excellent decorative properties of traditional clay tiles and has
the excellent performance of modern metal tiles. They are light,
strong, and durable. It is the current mainstream roofing material.
Galvanized metal tiles are suitable for roofing works of pitched
roofs of various styles and structures (wood structure, steel
structure, concrete structure), the flat-slope transformation of
existing buildings, the renovation of old roofs, and the partial
decoration of buildings.
Galvanized Steel Roofing Sheet is to prevent corrosion on the
surface of the steel sheet and prolong its service life. The
surface is a steel sheet with a layer of metallic zinc. T This kind
of galvanized steel sheet is called galvanized steel sheet
The Details introduction of Zinc Coated Galvanized Corrugated Steel
Roofing Sheet
.
| Product Name | Zinc Coated Galvanized Corrugated Sheet/Galvanized Corrugated Plate |
| Surface Structure | Galvanized big spangle,regular spangle,minimum spangle, zero spangle |
| Type of coating process | Front: double coated&double drying; Back: double coated&double drying;single coated&double drying; |
| Zinc Layer | 40~275g/m2 |
| Thickness | 0.13~1.0mm |
| Width | 750-1250mm(before corrugation) |
| Length | according to customer's requirement. |
| Material | SGCC / DX51D+Z DC51D+Z DX52D+Z DC52D+Z S220GD-S550GD+Z / Q195 / Q345 / Q235 |
| Standard | GB AISI DIN EN JIS ASTM |
| Certificate | ISO9001,BV |
| Coatting Type | Galvanized, Galvalume, Prepainted coating(PE, SMP, HDP, PVDF) |
| Coating Thickness | Z40-275; AZ30-AZ150; Top: 15 to 25 um (5 um + 12- 20 um) back: 7 +/- 2 um |
| Process | Hot dipped galvanized |
| Special Use | High-strength Steel Plate |
| Hardness | Soft hard(HRB60),medium hard(HRB60-85),full hard(HRB85-95) |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Characteristics | Weather proof;heating insulation;fireproof;anti-rust;sound insulation;long life span:more than 15 years. |
| Application | Suitable for industrial and civil buildings, warehouses, special
buildings, large span steel structure house roof, wall and interior
and external wall decoration, etc. |
| Product description | It has the characteristics of light weight, high strength, rich color and lustre, convenient construction, earthquake resistance,fire prevention, rain proof, long life, free of maintenance and so on, and has been widely promoted and applied. |
| Advantages | 1.low foundation cost |
| Package | Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing, side guard plate,then wrapped by seven steel belt.or according to customer's requirement. |

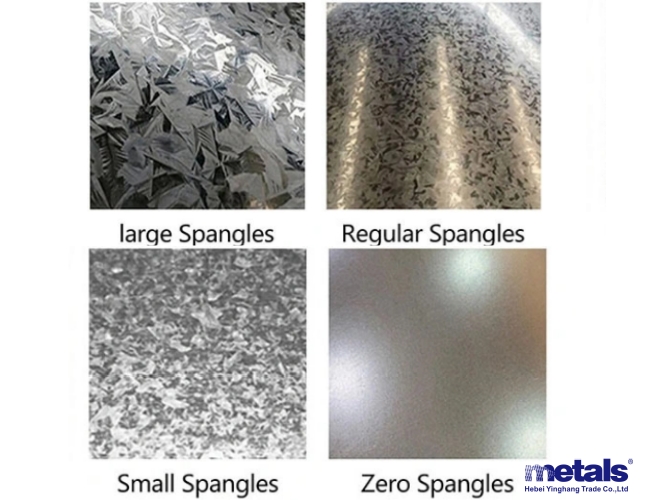

The Available Galvanized Surface Spangle for Corrugated Roofing
Sheet
Wave Type of Galvanized Corrugated Roofing Sheet Reference
|
