Categories | HPE Servers |
---|---|
Products Status: | Stock, Used |
Type: | Rack |
Processor Main Frequency: | 2.7 GHz |
Processor Type: | EPYC 9124 |
Brand Name: | HPE |
Model Number: | HPE ProLiant DL325 Gen11 |
Place of Origin: | Beijing, China |
Servers name: | HPE ProLiant DL325 Gen11 |
CPU: | 4th Generation AMD EPYC Processors |
Number of processors: | 1 |
Minimum dimension: | 42.9mm (H) x 434.6mm (W) x 649.4mm (D) |
DIMM Slots Available: | 12 DIMM slots per processor, 12 channels per processor, |
Smart Array Controllers: | HPE Smart Array E208e-p SR Gen10 |
Optical Drive: | Available on 8 SFF and 4 LFF CTO Servers |
Power Supply: | HPE 500W Flex Slot Platinum Hot Plug |
Drives: | None ship standard |
Warranty: | Original 3 years |
Packaging Details: | HEP Original packing |
Port: | Tianjin/Shanghai/Shenzhen |
Supply Ability: | 10000 Piece/Pieces per Month HPE ProLiant DL325 Gen11 |
MOQ: | 1 unit |
Price: | $3,200.00 - $3,500.00/pieces |
Company Info. |
Beijing Chenxing Huanyu High Technology Development Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

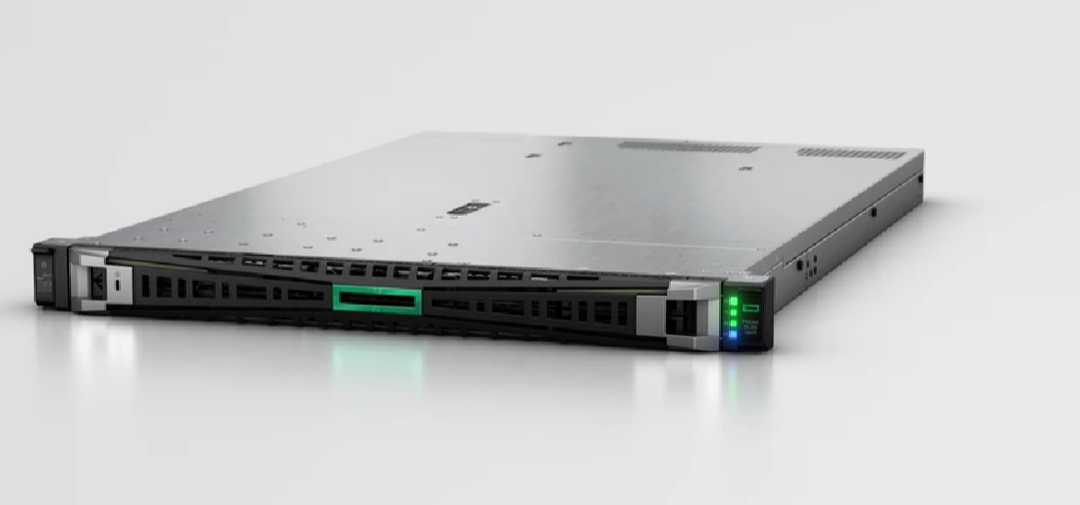

HPE ProLiant DL325 Gen11 Sever
Processor | Supports one AMD EPYC 9004 series processor, each with up to 96 cores and a maximum power of 400W |
Memory | Supports up to 12 DDR5 DIMMs at a maximum rate of 4800MT/s, RDIMMs or LRDIMMs, and supports a maximum memory capacity of 3TB* and CXL 1.1 |
Memory Controller | HPE intelligent array module controller or Tri-Mode array card based on standard PCIe slots can be selected, with a maximum cache of 8GB |
Storage | Supports up to 10 2.5-inch SATA/SAS/NVMe hard drives Supports up to four 3.5-inch SATA/SAS hard disks Supports up to 20 EDSFF E3.S 1T NVMe* NS204i-u Hot-swappable NVMe boot disk (without the PCIe slot) |
Network | Optional Network adapters based on standard PCIe slots Optional 2 OCP 3.0 network adapters (extensible to x16) |
Expansion Slots | Two PCIe 5.0 slots are provided as a standard |
Port | Rear VGA port, 5 USB 3.2 ports |
GPU Support | Up to 2 single width GPU cards or 2 double width GPU cards |
Management | iLO Standard Edition is standard, and iLO Advanced Edition and OneView Advanced Edition are optional Supports HPE iLO 6, SUM, and RESTful interface tools Support for mobile application software APP |
Power Supply And Heat Dissipation | Optional up to 2200W 1+1 hot swap redundant power supply, support up to 96% titanium; Supports hot-swappable redundant fans |
Working Temperature | 10℃ - 35℃ |
Dimensions | 8SFF chassis: 42.9mm (H) x 434.6mm (W) x 649.4mm (D) 4LFF Chassis: 42.8mm (H) x 434.6mm (W) x 708.9mm (D) |
• Supports the 4th Generation AMD EPYC™ Processors that supports up to 96 cores, 400W, and 384MB of L3 Cache.
• 12 DIMM channels per processor for up to 3TB* total DDR5 memory 4800MT/s.
• Advanced data transfer rate and higher network speed from the PCIe Gen5 serial expansion bus
• Includes HPE Integrated Lights-Out 6 (iLO 6) server management software
• Supports hot-pluggable, high-availability RAID M.2 boot options.
• Supports up to 20 EDSFF Drive bay*.
• Supports up to 2x Single Width or 2x Double Width GPU cards at the front chassis*.
Form Factor
• 1U rack
Chassis Types
• 8 SFF with options for aditional 2 SFF drive bay.
• 4 LFF with options for additional optical drive • 20 EDSFF* drive bay.
• 2 Single Width or 2 Double Width GPUs* with 8 EDSFF* drive bay
Processor Notes:
- 6096pin LGA SP5 new socket type.
- 1MB L2/Core, Up to 32MB L3/CCD
- All 4th generation AMD EPYC processors can support up to 3TB of memory each under 1DPC, 12 channel per processor.
- 128 PCIe 5.0 Lanes
- 64 IO Lanes support CXL1.1+ with bifurcations supported down to x4
- The wattage information indicates the cTDP (Configurable TDP) of the processor.
Our service:
warranty:3 years
packaging details:original HPE packing
delivery time:shipped in one day after payment
