| Categories | Concertina Razor Wire |
|---|---|
| Brand Name: | Giant Shuttle |
| Model Number: | WW-00014 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 100 rolls |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 Rolls/Week |
| Delivery Time: | According to order quantity |
| Packaging Details: | In Pallet or In Bulk |
| Name: | Concertina Razor Wire Single |
| Key Words: | Razor Wire |
| Colors: | As required |
| Transport Package: | Rolls and Pallet |
| Blade Style: | BTO-25 BTO-30 |
| Hole Shape: | Square Hole, Round |
| Features: | Sharp Blades, High Tensile Strength, Easy to Install |
| Coil Diameter: | 900 mm |
| Wire Core: | 2.5mm |
| Feature: | Durable |
| Service: | instruction book |
| Specification: | 7-16m |
| Blade Type: | Concertina |
| Barbed Model: | Bto-22, Cbt-65 |
| Port: | tianjin |
| Application: | Security Fence |
| Company Info. |
| Anping Win Win Wire Mesh Manufacturing Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Double Coil Concertina Razor Wire Single / Double Spiral Barbed Wire
Concertina razor wire is the most widely used razor wire type. It is combined with several continuous spiral razor wires. According to different structure, the concertina razor wire can be divided into following types:
Single coil concertina razor wire. Like the following picture
CRW-01, the single spiral concertina wire is combined with several
continuous single spirals, which has a singe structure. At the same
covering area, the single spiral concertina razor wire has lighter
weight than the double spiral concertina wire. It is much more
economical to be used in the common security and protection
applications.
Double coil concertina wire. Connect the neighbor spiral by the
clips, to form a new spiral and several continuous new spirals
forms the double spiral concertina wire. This design can reduce the
spacing between spirals and coils to improve the security
coefficient than the single spiral concertina razor wire. It is
widely used in the military sites, prison, airport and other places
where needs high security.
Specifications of concertina razor wire
Material:
Razor tape: high carbon or middle carbon steel sheet or stainless
steel sheet.
Core wire: high carbon or middle carbon steel sheet or stainless
steel sheet.
Clip: high carbon or middle carbon steel sheet or stainless steel
sheet.
Surface treatment: electric galvanized, hot dipped galvanized, PVC
coating, powder sprayed.
Outer diameter: 450 mm, 500 mm, 600 mm, 700 mm, 800 mm or 900 mm.
Special spirals can be customized according to your requirements or
specified applications.
Coil quantity: commonly is 56 coils
Razor type: BTO-10, BTO-12, BTO-18, BTO-22, BTO-28, BTO-30.
Package of concertina razor wire fence
The concertina razor wire can be packed in various types, the
common packages are as follows:
Waterproof paper.
Woven bag.
Carton.
Pallet.
Other customized package.
Installation and warming tips of concertina razor wire
The installation of concertina razor wire is simple and easy. Just
fasten the concertina razor wire onto wall or holder, all the
projects are completed.
When you install the double spiral concertina razor wire, place an
tension wire or barbed wire in the spiral coils. The barbed wire or
tensile wire can fasten the concertina razor wire better, prevent
concertina razor wire from being blown off and improve the
protecting effect.
In some emergent public events applications, such as activities of
riots or demonstrators, activities of area police and military. You
can adopt the razor wire tailor deployment system. It is an fast
and safe system to pull out and pull back the razor wire in coil.
It has automatic and semi-automatic types. We can supply you the
whole system of trailer deployment. Just tell us your requirements
and we will customize it for you.
Features of Double Coil Concertina Razor Wire Single / Double Spiral Barbed Wire
High tensile strength.
Corrosion and rust resistance.
Good hardness.
Good ductility.
Anti-age. It can be used in the harsh environments with good
property.
Easy to install and uninstall.
Durable and long service life.
Applications of Double Coil Concertina Razor Wire Single / Double Spiral Barbed Wire
Concertina razor wire can be placed in the farmland to prevent
people from destroy the farms.
Concertina razor wire can be used to protect military sites
security.

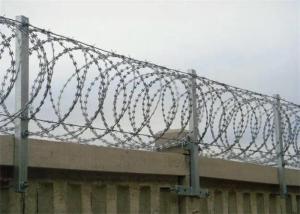

Concertina razor wire can be installed at the top of the wall to
protect residences safe.
Concertina razor wire can be installed at various wire mesh fences
to supply maximum safety coefficient.
Concertina razor wire can be installed on the deck of ships to
prevent pirate from attacking the ship.
Specification of Double Coil Concertina Razor Wire Single / Double Spiral Barbed Wire
| Reference number | Blade style | Thickness (mm) | Wire diameter (mm) | Blade length (mm) | Blade width (mm) | Blade spacing (mm) |
|---|---|---|---|---|---|---|
| BTO-12 |  | 0.5 ± 0.05 | 2.5 ± 0.1 | 12 ± 1 | 15 ± 1 | 26 ± 1 |
| BTO-15 |  | 0.5 ± 0.05 | 2.5 ± 0.1 | 15 ± 1 | 15 ± 1 | 33 ± 1 |
| BTO-22 |  | 0.5 ± 0.05 | 2.5 ± 0.1 | 22 ± 1 | 15 ± 1 | 34 ± 1 |
| BTO-30 |  | 0.5 ± 0.05 | 2.5 ± 0.1 | 30 ± 1 | 18 ± 1 | 45 ± 1 |
| CBT-25 |  | 0.5 ± 0.05 | 2.5 ± 0.1 | 25 ± 1 | 16 ± 1 | 40 ± 1 |
| CBT-60 |  | 0.6 ± 0.05 | 2.5 ± 0.1 | 60 ± 2 | 32 ± 1 | 100 ± 2 |
| CBT-65 |  | 0.6 ± 0.05 | 2.5 ± 0.1 | 65 ± 2 | 21 ± 1 | 100 ± 2 |
| CBT refers to Concertina Barbed Tape. BTO refers to Barbed Tape Obstacle. | ||||||
| Item | Outside diameter (mm) | Quantity of loops | Standard length per coil (m) | Type | Notes |
|---|---|---|---|---|---|
| RZ-01 | 450 | 33 | 7-8 | CBT-60, 65 | Single coil |
| RZ-02 | 500 | 56 | 12-13 | CBT-60, 65 | Single coil |
| RZ-03 | 700 | 56 | 13-14 | CBT-60, 65 | Single coil |
| RZ-04 | 930 | 56 | 14-15 | CBT-60, 65 | Single coil |
| RZ-05 | 450 | 56 | 8-9 (3 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-06 | 500 | 56 | 9-10 (3 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-07 | 600 | 56 | 10-11 (3 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-08 | 600 | 56 | 8-10 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-09 | 700 | 56 | 10-12 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-10 | 800 | 56 | 11-13 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-11 | 900 | 56 | 12-14 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-12 | 960 | 56 | 13-15 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-13 | 980 | 56 | 14-16 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
|
