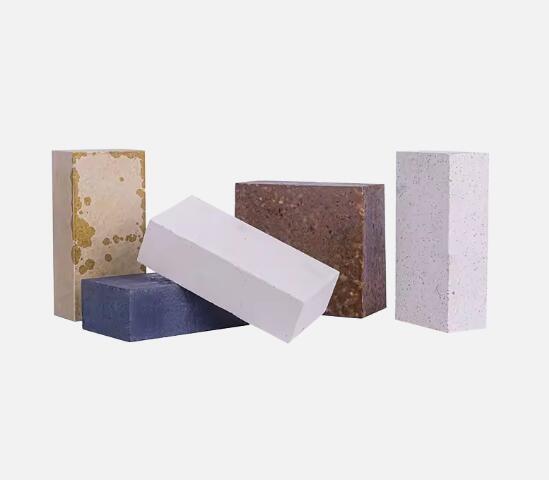

Name: 12001650C Glass Furnace Insulation Brick Lightweight Silicon Insulating Bricks
Brand: RONGSHENG
Price: 1 USD

Home > Fireproofing Materials >

1200-1650C Glass Furnace Insulation Brick Lightweight Silicon Insulating Bricks

Categories	Kiln Refractory Bricks
Brand Name:	RONGSHENG
Certification:	ISO9001
Place of Origin:	Henan, China
MOQ:	1 Ton
Feature:	Thermal Shock
Dimension:	ISO size
Thermal Shock Resistance:	Good
Modulus Of Rupture:	1.5MPa
Cold Compressive St:	Min 100
Transportation:	Shipping
Application:	Kiln lining
Compressive Strength:	≥30MPa
Use:	lime kiln and other kiln project
Porosity:	≤22%
Carbon Content:	99%
Using Temperture:	800℃
Chemical Resistance:	Excellent
Density:	2.3g/cm3
Apparent Porosity:	20~22%

Contact Now

Add to Cart

Company Info.

Zhengzhou Rongsheng Refractory Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

1200-1650C Glass Furnace Insulation Brick Lightweight Silicon Insulating Bricks

Product Description

Description For Silica Brick Silica brick is made of quartz stone material, the content of SiO2
is above 93%. It has good resistance to acid slag and good heat
conductivity. And the refractoriness is 1690~1710°C,long-term use
volume at high temperature is relatively stable.
Stable Capability, High Quality, Excellent Service, Competitive
price is the most important advantage of our products.
Silica Brick Advantage
1. Excellent chemical attack resistance, slag resistance and acid
resistance; 2. No pollution to products (such as molten glass,
etc.); The main component of silicon brick is SiO2, and if there
are blocks or surface droplets during use, the quality of molten
glass will not be affected. 3. Excellent thermal stability, the
product will not explode during hot repair, and the repair
operation can be carried out directly; 4. High temperature volume
stability, no shrink in burn repeatedly. 5. Small bulk density. The
mass of the furnace can be reduced. 6. After repair (hot repair),
there will be no peeling and other phenomena, and it is safe and
reliable for long-term use;

Lightweight Silicon Insulation Brick

1. Silicon oxide is above 95%. 2. Good acid erosion resistance. 3.
High softening point with temperature. 4. No shrink in burn
repeatedly. 5. Temperature of refractoriness under load is above
1650º C.

Product Application

Refractory Silica Brick Application Silica bricks are mainly used for the partition walls of the
carbonization chamber and combustion chamber of coke ovens, the
regenerative chamber of steel making open hearth furnaces, soaking
pits, refractory materials of glass furnaces, Tunnel kilns, rotary
kilns, metallurgical furnaces,and ceramic firing kilns, as well as
other load-bearing parts of kilns. It is also used for
high-temperature load-bearing parts of hot air furnaces and acidic
open hearth furnaces. Silica bricks are also widely used in
construction and equipment in chemical, petroleum, pharmaceutical
and other industries.

Specification

Item	Silicon brick for coke oven		Silicon brick for glass kiln
Item	Furnace bed	others	BG-96A	BG-96B	BG-95A	BG-95B
SiO2% ≥	94		96	96	95	95
Fe2O3 %≥	/		0.8	1.0	1.2	1.2
0.2MPa RUL°C ≥	1650		1680	1670	1660	1650
FUSION INDES: one BRICK<20kg one BRICK ≥20kg	/ /		0.5 0.6	/ /	0.7 0.7	/ /
True density g/cm3 ≤	2.34 2.35		2.34
PLC % 1450°C×2h	+0.2 0		/
AP % ≤	22(23)	24	22(24)
Thermal expansion 1000°C % ≤	1.28	1.30	/
CCS MPa ≥ one brick<20kg one brick≥20kg	30	25	35(30) 30(25)
