O-Ring Mechanical Parallel Spring Seal Type 250 Seals Pillar Mechanical Seal

Categories Industrial Mechanical Seals
Brand Name: JR
Model Number: 250
Certification: ISO9001
Place of Origin: MADE IN CHINA
MOQ: 5PC
Price: Negotiated
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100000PC/Month
Delivery Time: 20-30DAYS
Packaging Details: box as requirement
Material: SIC SIC FKM CAR CER NBR
Function: industrial pump slurry pump
Transport Package: box
HS Code: 848420090
Specification: John Crane type 250
Certificate: ISO9001
Type: 250
Standard: Standard
Style: Mechanical Seal
Application: mechanical seal industry 250
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

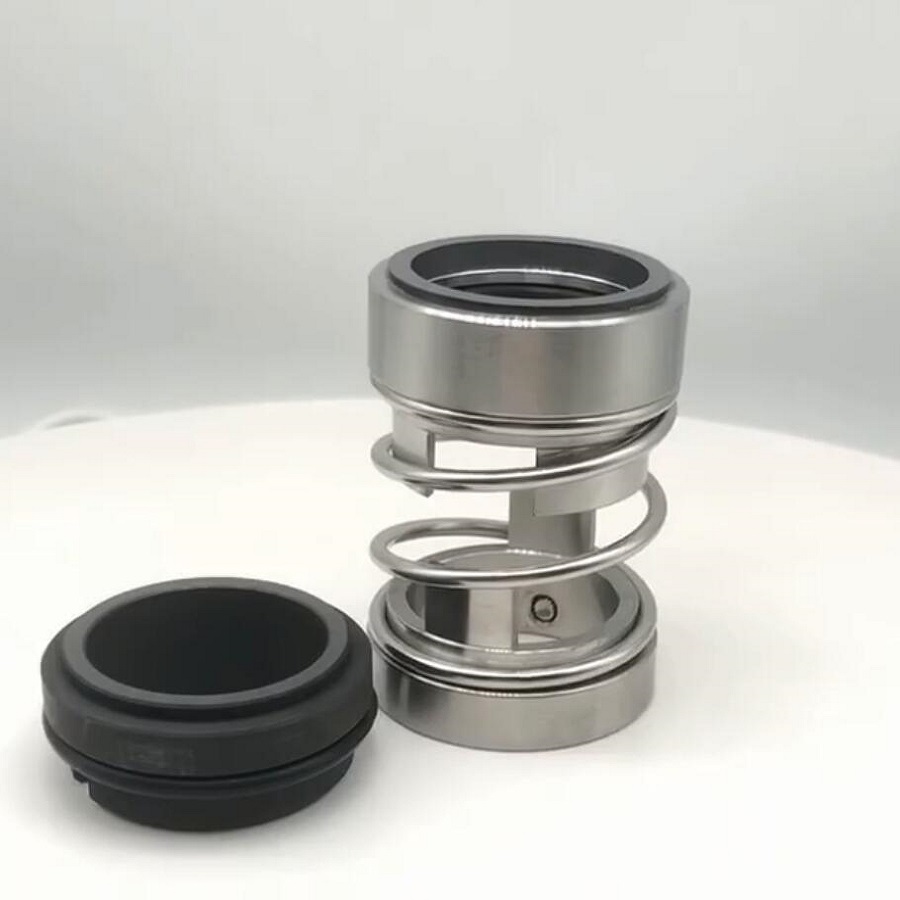

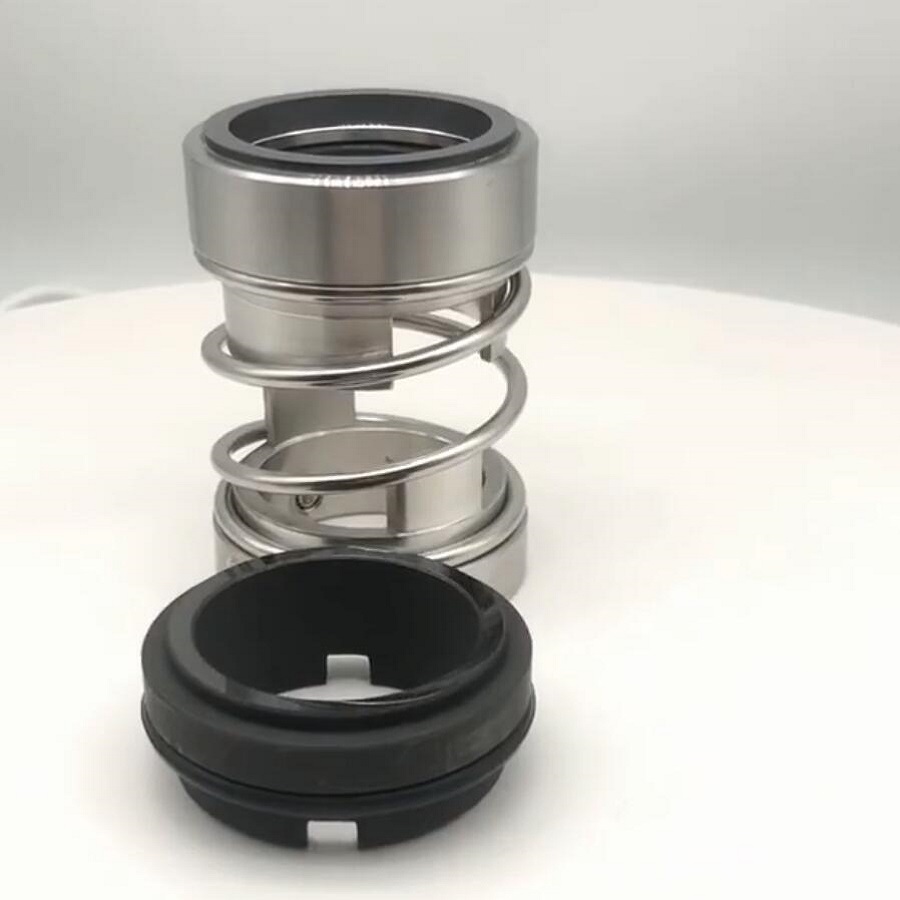

O-Ring Mechanical Parallel Spring Seal Type 250 Seals Pillar Mechanical Seal

Mechanical Seals Type 250 For Mechanical Pump Shaft Seal

Operational Conditions:

  1. EagleBurgmann HA211,TYPE 250, O Ring Mechanical Seals
  2. Max. pressure : 12 bar.
  3. Rotation direction : indifferent.
  4. Speed : 16 m/s.
  5. Temperature : - 10 °C to + 150 °C.

Materials:

  • Stationary Ring (Carbon/Alumina 99%/Alumina 99.5%/SiC/SSiC/TC)
  • Rotary Ring (Carbon/SiC/SSiC/TC)
  • Secondary Seal (NBR/EPDM/FKM)
  • Spring and Punched Parts (SS304/SS304)

Performance Capabilities

250 mechanical seal rotary seal mixer seal
Operational Condtions
Size
Material

Temperature:

-40℃ to 200℃ dependent on the elastomer
20 to 100mm
Face: Carbon, SiC, TC
Pressure:Up to 25 bar
Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Parts : SS304, SS316
  • 1. Our seals can replace the original seals.For industrial pumps
  • Replacing the mechanical seal of Burgman and John Crane
  • 2.Application: seals are primarily used in in Clean water,sewage water,oil and other moderately corrosive fluids etc
  • 3.Standard:the products are in according with Din24960,ISO3069,en12576,API682 standards

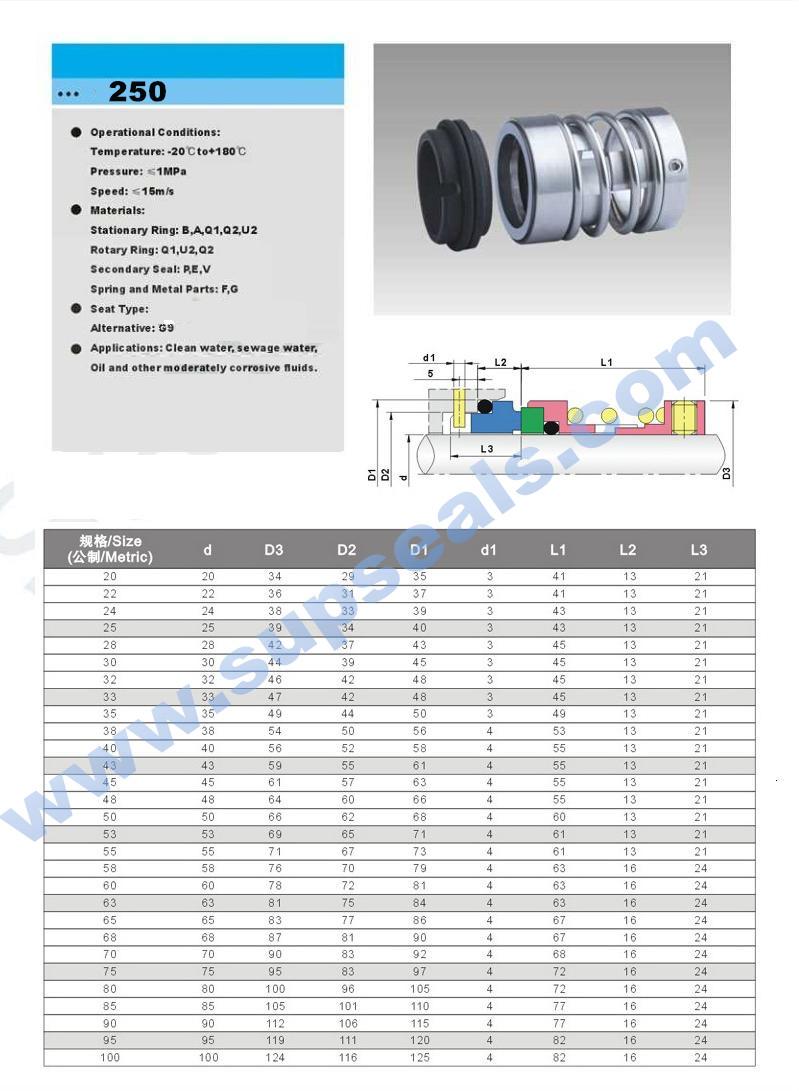

    /SizeD3D2D1d1L1L2L3
    250-2236.031.037.03.041.013.021.0
    250-2438.033.039.03.043.013.021.0
    250-2539.034.040.03.043.013.021.0
    250-3044.039.045.03.045.013.021.0
    250-3246.042.048.03.045.013.021.0
    250-3447.042.048.03.045.013.021.0
    250-3549.044.050.03.049.013.021.0
    250-3854.050.056.04.053.013.021.0
    250-4056.052.058.04.055.013.021.0
    250-4359.055.061.04.055.013.021.0
    250-4561.057.063.04.055.013.021.0
    250-4964.060.066.04.055.013.021.0
    250-5066.062.068.04.060.013.021.0
    250-5369.065.071.04.061.013.021.0
    250-5571.067.073.04.061.013.021.0
    250-5876.070.079.04.063.016.024.0
    250-6078.072.081.04.063.016.024.0
    250-6381.075.084.04.063.016.024.0
    250-6887.081.090.04.067.016.024.0
    250-7090.083.092.04.068.016.024.0
    250-7595.083.097.04.072.016.024.0
    250-80100.096.0105.04.072.016.024.0
    250-85105.0101.0110.04.077.016.024.0
    250-90112.0106.0115.04.077.016.024.0
    250-95119.0111.0120.04.082.016.024.0
    250-100124.0116.0125.04.082.016.024.0

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.


Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.


Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.


Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.


Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.


Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.


Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.


Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
