| Categories | XPD Antenna |
|---|---|
| Place of Origin: | China |
| Brand Name: | Famous |
| Certification: | CE，ISO9001 |
| Model Number: | XPD Antenna |
| MOQ: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | Standard export packaging/customizable packaging |
| Payment Terms: | T/T ， L/C |
| Diameter of Mounting Pole: | φ114 mm |
| Fine Azimuth Adjustment: | Coarse 360°Fine±5° |
| Fine Elevation Adjustment: | Fine±5° |
| Wind Velocity Operational: | 180km/h |
| Wind Velocity Survival: | 200km/h |
| Operational Temperature: | -55~+70℃ |
| Company Info. |
| Wuxi Famous Communication Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

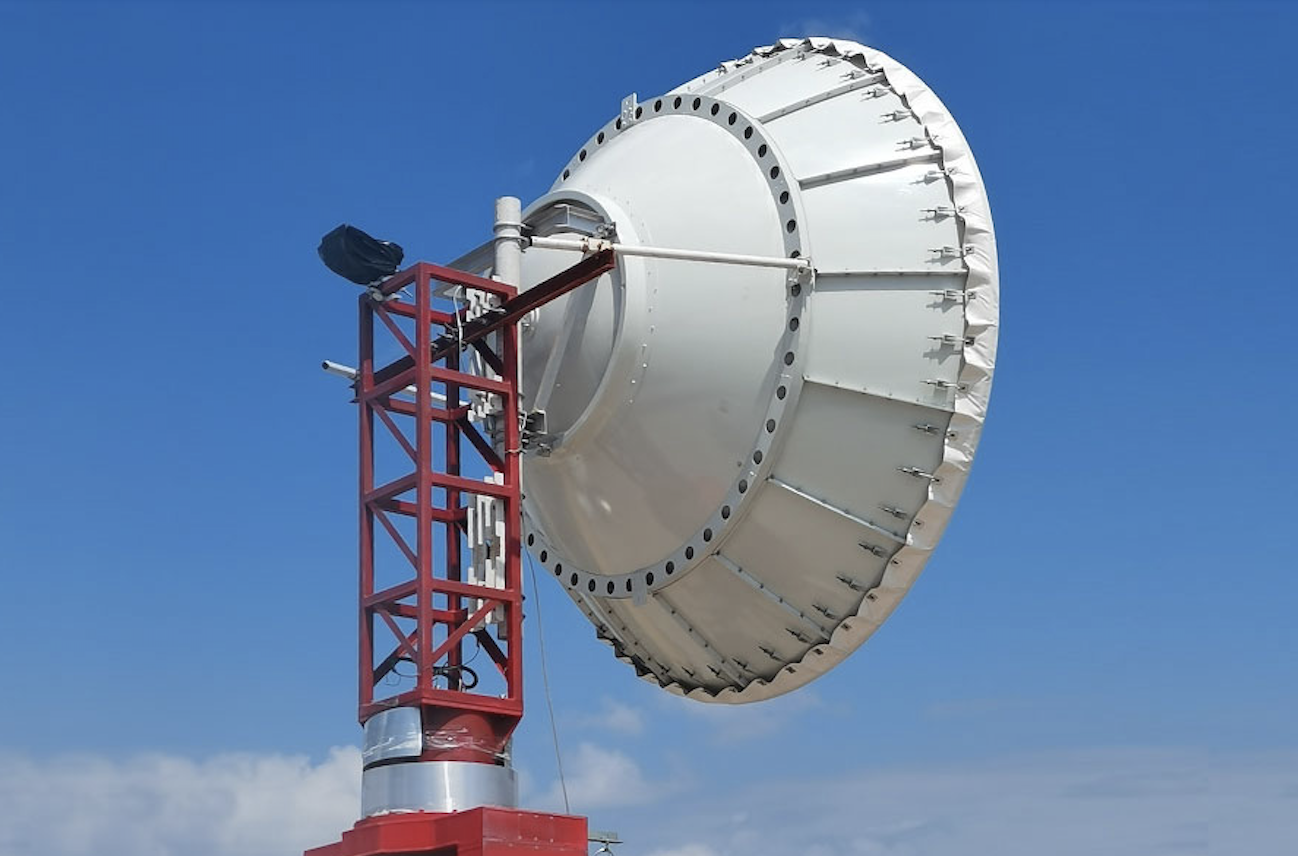

2.4m/8ft Standard Dual-Polarized Microwave Parabolic Antenna
- Our patent split-lobe microwave communication parabolic antenna for large diameter, which can save packaging and transportation costs greatly without any quality compromised；
- High performance ultra high XPD parabolic antennas – Excellent performance for a wide range of applications；
- Simple Assembly – Minimal required assembly simplifies installation on site and guarantees “factory-tested” quality；
Electrical performance:
Antenna Model | Antenna Size(m/ft | Frequency (GHZ | Gain(dBi) | 3dB BW (degs | XPD (dB) | VSWR | F/B radio dB) | ISO | ||
| Low | Mid | Top | ||||||||
| CMP243DA | 2.4m/8ft | 3.6-4.2 | 36.1 | 37.3 | 38 | 2.4 | 30 | 1.15 | 62 | 35 |
| CMP244DA | 2.4m/8ft | 4.4-5.0 | 38.0 | 38.8 | 39.3 | 2.0 | 30 | 1.15 | 63 | 35 |
| CMP246WDA | 2.4m/8ft | 5.925-7.125 | 40.8 | 41.7 | 42.5 | 1.4 | 30 | 1.1 | 67 | 35 |
| CMP247WDA | 2.4m/8ft | 7.125-8.5 | 42.5 | 43.3 | 44.0 | 1.1 | 30 | 1.1 | 69 | 35 |
| CMP2410WDA | 2.4m/8ft | 10-11.7 | 45.5 | 46.1 | 46.8 | 0.8 | 30 | 1.1 | 71 | 35 |
| CMP2413WDA | 2.4m/8ft | 12.2-13.25 | 47.5 | 47.7 | 47.9 | 0.7 | 30 | 1.1 | 72 | 35 |
| CMP2415DA | 2.4m/8ft | 14.4-15.35 | 48.6 | 48.8 | 49.1 | 0.6 | 30 | 1.1 | 74 | 35 |
Mechanical performance:
| Diameter of Mounting Pole | φ114 mm |
| Fine Azimuth Adjustment | Coarse 360°Fine±5° |
| Fine Elevation Adjustment | Fine±5° |
| Wind Velocity Operational | 180km/h |
| Wind Velocity Survival | 200km/h |
| Ice-load | 25.4 mm |
| Operational Temperature | -55~+70℃ |
1.The low/mid/high gain has≤-0.5dBi tolerance is within the normal range;
2.F/Bradio:Denotes highest radiation relative to the main beam,at 180°±40°,across the band.Production antennas do not exceed rated values by more than 2 dB unless stated otherwise;
|
