A4E IPMSM ACIM Motor Controller 24V 700A For Counter Balance Truck,Sightseeing Vehicle,Aerial Work Platform

Ac Electric Motor Speed Control 24V Current 700A A4E-2701 ACIM IPMSM control

Product Description:

The A4E series controller boasts unparalleled safety and reliability, adhering to the latest international safety standards through its advanced Dual Microprocessor architecture and compliance with multiple international safety regulations.
In addition to its robust safety features, the A4E series offers exceptional flexibility, seamlessly compatible with a wide range of motors and encoders available in the global market. From a software perspective, it's programmable for both traction and pump applications in vehicles, making it a versatile solution across various industries.

Features:

  1. It has undergone rigorous certifications, including EN 13849-1:2015, EN1175-2020, and TSG-81:2022.
  2. Supports both Serial and CAN communication protocols, ensuring superior compatibility.
  3. Designed with a plethora of peripheral connections such as small power outputs, throttle inputs, digital inputs, analog voltage output, etc., facilitating versatile and flexible application scenarios.
  4. Equipped with a larger number of MOSFETs and capacitors compared to its competitors, providing enhanced discharge capacity.
  5. It adopts the C2000+ and Cortex-M0+ processors for superior performance.

Safety and Reliability

  1. The isolated CAN interface ensures heightened reliability.
  2. Advanced failure detection for power supply components ensures safety in the event of power failure.
  3. A comprehensive range of protection measures is implemented, including Over-voltage cutback, thermal cutback, short-circuit protection, etc., adhering to the latest industrial standards.
  4. Its isolated minus-voltage driven mechanism provides improved traction drive reliability.

Specifications :

ContentParameters
ModelA4E-2701
Nominal Input Voltage24
2 Min RMS Current Rating (Arms)700A
CertificationEN1175:2020
EncoderTypeIncremental encoder, Absolute encoder, sin/cos encoder, rotary encoder (optional)
CommunicationCAN / Serial
Working Ambient
Temperature Range		-40℃~55℃
Storage Ambient Temperature-40℃~85℃
Insulation PropertiesLeakage current to ground ≤ 0.05mA (500VDC), insulation resistance > 10MΩ
Protection GradeIP65
Efficiency≥97%
Vibration StandardGB/T2423
Motor Control MethodVector Control
Thermal RequirementsInstallation in a well-ventilated environment, otherwise air-cooler must be added
Motor TypeACIM/PMSM/IPM

Typical Applications:

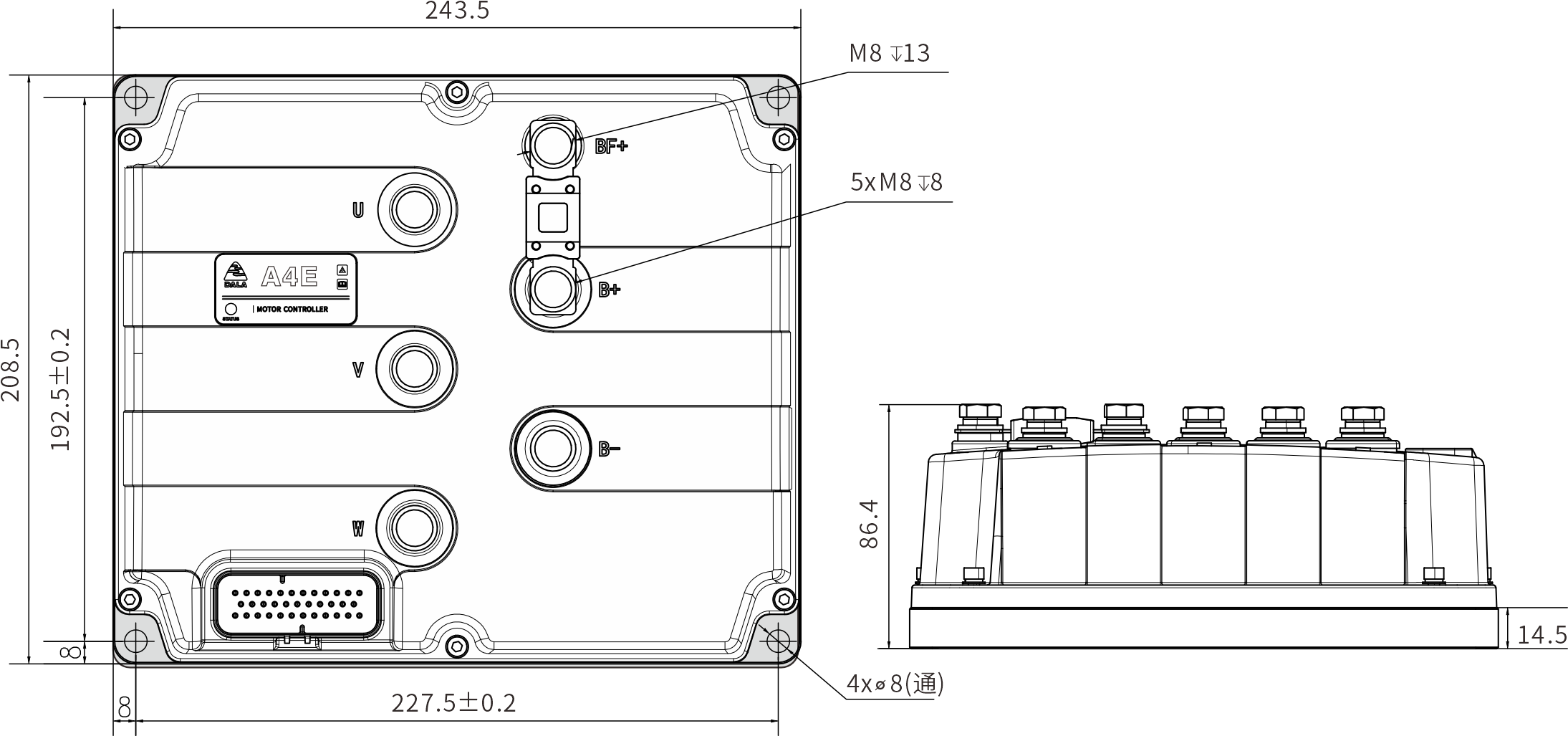

Dimensions:
