75w 1064nm Picosecond Ir Laser Brittle Material Processing

Categories Picosecond IR Laser
Place of Origin: China
Brand Name: BWT
Certification: ISO9001
Model Number: Topaz-1064-75
MOQ: 1 Piece/Pieces
Delivery Time: 4-8weeks
Payment Terms: T/T
Supply Ability: 100,000/year
Product Name: 75W Picosecond IR Laser
Power: 75W
Wavelength: 1064nm,
Applications: Brittle material processing
Maximum Pulse Energe: 750μJ@100kHz at burst counts 4
Pulse Repetition Rate: 5KHz
Company Info.
BWT Beijing Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

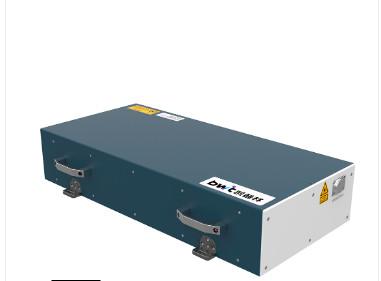

75w 1064nm Picosecond Ir Laser Brittle Material Processing

75W Picosecond IR Laser


Features:


Stable output power and pulse energy
Compact Design
High Beam Quality
Pulse Width:<15ps
Max Energy:>750μJ@100kHz at burst counts 4 2mJ customized
Power:﹥75W@100kHz at burst counts 4

Applications:


Brittle material processing


Parameters


Unit


Topaz-1064-75
MinimumTypicalMaximum
Optical DataCW-Output PowerW75--
Center Wavelengthnm1064
Pulse Repetition RateKHz5-1000
pulse widthps--15
Average PowerW500μJ@100kHz at burst counts 4--
Maximum Pulse EnergeμJ750μJ@100kHz at burst counts 4--
Aouerage Powrer Stabitity---2.0%o rms
Pulse-to-Pulse Instability--3.0%o rms
Spatial Mode-TEMO0[<1.40]
Beam Roundness-85%
Beam Divergencemrad2.0mrad [Full Angle]
Polarization Direction--Horizontal-
Polarization Ratio-100:1--
Electrical DataOperation voltageV110-260

Others

Parameter

warm-up Timemin--20
Ambient Temperature15-30
Relative Humidity-10%-80%
storage Temperature(2)-10-50
cooling Approach--Water-cooling
