Paper Testing Equipment , Ring Crush Strength Tester For Paper

Categories Paper Testing Equipments
Brand Name: Gaoxin
Model Number: GX-6030-A
Certification: ISO 2008
Place of Origin: China
MOQ: 1set
Price: negotiation
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Delivery Time: 15 working days
Packaging Details: Non-fumigation wooden box
material: 304# stainless steel
color: silver
displayer: Micro computer
capacity: 200kg
feature: high capacity; double columns
usage: test compression resistance of carton
applicable object: carton, other packaging box
speed: 12.7mm / min
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

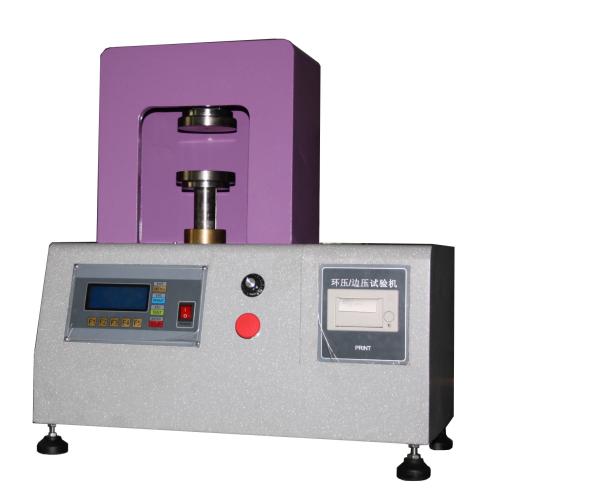

Paper Testing Equipment , Ring Crush Strength Tester For Paper


Paper Testing Equipment , Ring Crush Strength Tester for paper


1. Quick Details


Alternative name

Ring crush strength testing machine

Function

Test compression resistance of kraft paper, core paper from vertical direction

Feature

Electronic controller

Weight

92kg

Volume

45×35×67mm

Test standard

TAPPI-T472,JIS-P8126,GB-T2679.8


2. Description


The ring crush strength tester is applied for ring pressure test on corrugated paper or leather paper

below 1mm.

Through the test, get vertical compression resistance of the specimen paper.

With high precision roll ball rod to drive pressure plate working, and the high precision conductor can

get the pressure signal and show the test data on digital displayer.

combined with the other accessories, the tester can check the strength under horizontal pressure, flat

pressure and adhesive pressure.


3. Features


(1). Test vertical compression strength of kraft paper, core paper.

(2). High precision load cell responses pressure change.

(3). The tester can test strength of horizontal pressure, flat pressure and adhesive pressure.

(4). Simple structure and easy to operate


4. Specifications


Model

GX-6030-A

Capacity (optional)

200KG

Unit (switchable)

Kg/N/Lb

Load induction

Load cell

Load resolution

1/10000

Test speed

12.7mm/min

Accuracy

±1%

Pressure plate

100×100 mm (or depends on the specimen diameter for flat pressure)

Effective space

150mm

Power supply

1∮,220V 1.5A
