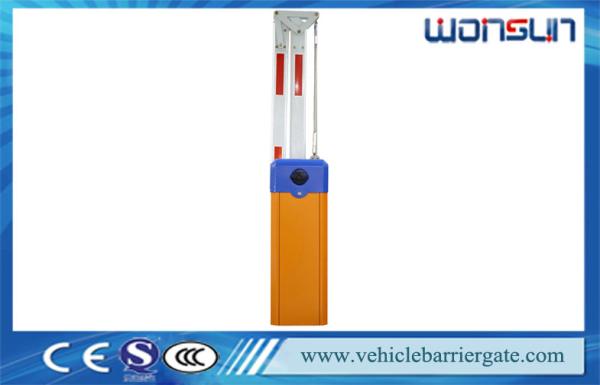

180 Degree Folding Arm Car Park Barriers With RS485 Transition
Interface For Parking System
Quick Detail:
Name: Car park barriers
Speed:6 seconds
Feature:Straight boom
CE approved barrier gate
100% heavy duty
factory price
stable performance
Model Selection and Differences
Model | Boom Shape | Max Boom Length | Speed |
WST11521 | 90 degree, Articulated boom | 5m | 6 seconds |
WST11522 | 90 degree, Articulated boom | 3m | 3 seconds |
WST11561 | 180 degree, Articulated boom | 5m | 6 seconds |
WST11562 | 180 degree, Articulated boom | 3m | 3 seconds |
Functions & Features
1) Manual release
2) Machine core with compression spring, effectively avoids the
accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal
radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit
switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function
(optional)
9) Support the external and internal VEHICLE LOOP DETECTOR
(optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Specifications
Model | WST1151 |
Working Temperature | -40℃～+75℃ |
Voltage | 220V±10%, 110V±10%, 50/60HZ |
Rated power | 80W |
Relative humidity | ≤90% |
Remote control distance | ≥30m |
Net weight | 48kgs |
Speed | 1S,1.8S,3S, 6S |
Max boom length | 6 meters |
Motor Rotational speed | 1400rmp |
Protection Degree | IP44 |
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty
well.Our thinking is beyond the short-term.We are conceiving,
designing and creating high-tech solutions that are as advanced and
effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are
innovative,that will improve your performance and enhance your
skills;and that will make your business easier, increasing its
profitability.
Because our focus is on Quality with a capital Q.We just won’t
settle for less.
1. One of leading ISO 9001:2008 certified manufacturer of Vehicle
Access Control System(Parking Management System, Barrier Gate, &
Parking Lock) in China with 13 years.
2. Develop both hardware and software to make simple operation,
customized solution available.
3. Worldwide reference: Australia, UK, Chile, Mexico, Ciudad Mall
VENEZUELA, Peru, Sweden, Ukraine, Southeast Asia, DUBAI Lulu
hypermarket, P9 Residences in Thailand, India Peninsula Mall,
Mumbai Nirmal Lifestyle Mall, Guatemala ,Canada, Seychelles ,
Rwanda, Mozambique International airport, Iran, Poland, HK, Macro,
Chinese mainland etc. ,also ready for you now.
4. Warranty: 1 year labor and parts?Certificates: CE marking
5. Lead time : 5 working days after deposite received; contact our
sales for lead time of customized orders and bulky orders
Car Park Barriers packing List
| Packing list | |||
| Name | Specifications | Quantity | Remarks |
| Machine core | Good in working | 1 | Main part |
| Barrier arm | Straight, folding or fence arm | 1 | Optional |
| Boom press board | 1 | Fixing the boom | |
| Self-tapoing screw | ST4*16 | Fixing the boom | |
| Self-tapoing screw | st3*10 | 4 | Fixing the boom |
| Supporting pole | 1 | Fupporting the boom | |
| Expanion bolt | M16*150 | 4 | Fixing the case |
| Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
| Clutch key | 1 | clutch device | |
| Case Key | 2 | for case and cover locking | |
| Balance spring | According to length of barrier arm | 1 | for sapre usage |
| Remote emitter | less than 30m is available | 1 | For remote control |
| Remote conrol handles | less than 30m is available | 2 | For remote control |
| Instruction | in English | 1 | For reference |
| RS485 interface | 1 | Optional | |
| Disc | 1 | Optional | |
| Communication Mould | 1 | Optional | |
| Cover head | 1 | 3 years without fading | |
| Expanion nut | M8 | 4 | Fixing the supporting pole |
