Field Installable Quick Assembly Connector SC SM

CATV Fast Field Installable Connector SC SM, Quick Assembly Connector

Sell point:

1. pre-polished and curing ceramic ferrule

2. pre-embedded fiber optic fiber G657A1

3. Length: 53 mm (boot to the top of the dust cap )

4. Cable stripper length: 18mm / 10mm

5. SC/APC,SC/UPC,LC/UPC,LC/APC,FC/UPC can be choose

Description

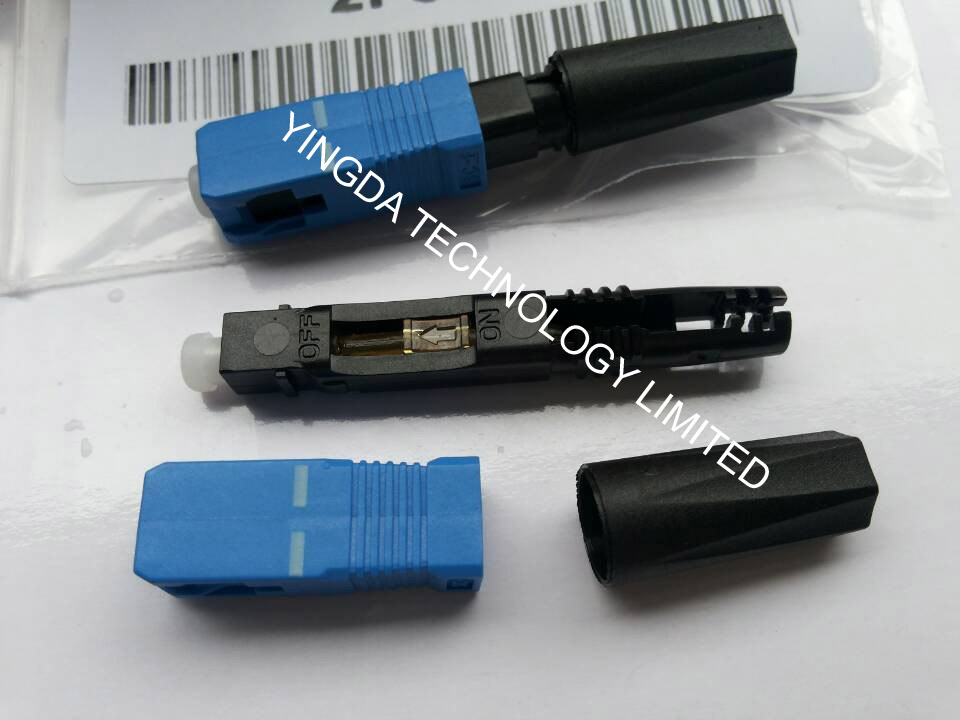

SC/UPC Fast Field Installation Assembly also called Mechanical Quick Assemblyb connector,

most people call it fast connector for short. It is a kind of connector, it is used in field wiring

operation and FTTH projectwhere need fast and stable connection. Because it has embedded

fiber and pre-polished and heat oven ferrule, so no need additional glue curing or grinding, thus

offer quicker help to installation, maintenance,repair and fiber to the home for engineers.

The pre-embedded fiber and prepolished and cured ferrule ensures the ferrule end face

good quality, and effectively protect the user equipment interface from damage, reduce

the connection attenuation loss.

Features

1. Can be used as a connector and attenuator

2. Can made any length of fiber optic patch cord on-site

3. On-site installation, simple and quick operation, only 2 minutes

4. With pre-embedded optical fiber and the end face is pre-polished and heat oven, without any adhesive and polishing process

5. Do not need hot melt, save power supply

6. High performance, good reliability

7. Mechanical and environmental performance conforms to GR-326-CORE standard.

Application

1. Fiber Optic Test
2. Fiber Optic Distribution Frame use
3. FTTH network
4. CATV / LAN network
5. Fiber Optic Telecommunication system
6. Fiber Data Transmission network

Specification

Order information

1. Connector: SC/UPC, SC/APC, FC/UPC,FC/APC,ST, LC/UPC,LC/APC
2. Cable type: drop cable , indoor cable 0.9mm, 2.0mm
3. Connector color: Blue,Green, Black
4. Fiber type: G652D, G657A1, G657A2

Fast Connector connect with drop cable then can do patch cord as below:

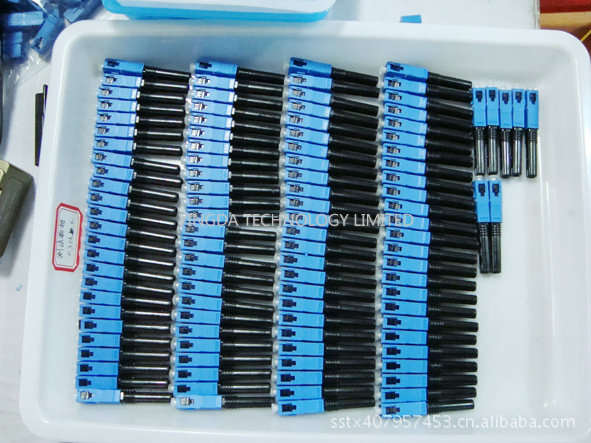

Package methods:
