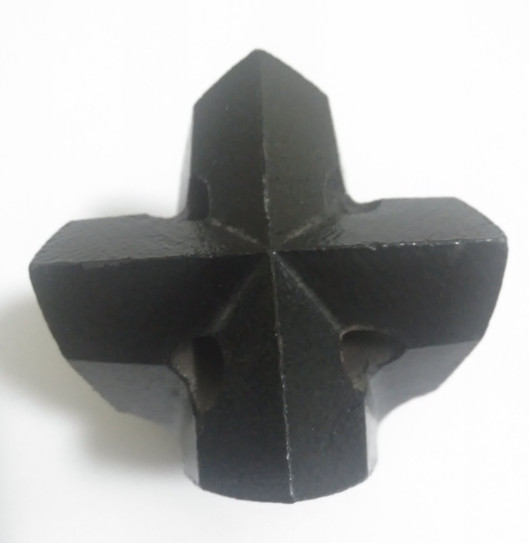

R32S T-thread Self Drilling Bolts with Bolt / Plate / Coupling / Bit / Nut

Products information

The SelfDrilling Anchor (SDA) is unique anchoring system and fulfills current and increasing demands ofthetunneling industry and ground engineering for safer and faster production. The system provides advantages for all areas of its applications, where boreholes would require

the time consuming drilling with casing systems in unconsolidated or cohesive soil.

Features of hollow grounting anchor bolt

• Particularly suitable for difficult ground conditions.

• A high rate of installation since drilling, placing and grouting can be performed in one single operation.

• Self drilling system eliminates the requirement for a cased borehole.

• Installation with simultaneous drilling and grouting possible.

• Easy installation in all directions, also upwards.

• Suitable for working in limited space, height and in areas of difficult access.

• Simple post grouting system. • Hot-dipped galvanizing for corrosion protection

Applications in Tunneling & Ground Engineering

• Radial bolting

• Slope stabilization

• Forepoling

• Micro injection pile

• Face stabilization

• Temporary support anchor

• Portal preparation

• Soil nailing

Self-Drilling Anchor Bolt Description


	R25N	R32N	R32S	R38N	R51L	R51N	T76N	T76S
Outside Diameter (mm)	25	32	32	38	51	51	76	76
Internal Diameter (mm)	14	19	16	19	36	33	52	45
Ultimate Load Capacity (kN)	200	280	360	500	550	800	1600	1900
Yield Load Capacity (kN)	150	230	280	400	450	630	1200	1500
Tensile Strength, Rm (N/mm2)	800	800	800	800	800	800	800	800
Yield Strength, Rp0.2 (N/mm2)	650	650	650	650	650	650	650	650
Weight (Kg/m)	2.3	3.2	3.6	5.5	6.5	8.0	16.0	19.7
Thread Type (left-hand)	ISO10208				ISO1720		MAI T76 Standard
Steel Grade	EN10083-1 (Alloy Structure Steel)
Steel Grade	Compared to carbon steel, alloy structure steel has high anti-corrosion capacity and high mechanical.

Anchor Bar	T40/20	T40/16
Outside Diameter(mm)	40	40
Internal Diameter (mm )	20	16
Cross sectional area (mm²)	713	910
Ultimate load (kN)	540	660
Yield load (kN)	430	525
Weight (kg/m)	5.6	7.15
Thread type	T International Standard
Thread (Left /right hand)	Left or Right
Length (m)	(1) x2, x3, x4, x5, x6

Anchor Nut	T40/20	T40/16
Key Size (mm)	60
Length (mm)	50
Hardness (HRC)	25-30
Thread type	T International Standard
Type of steel	CK45
Unit Weight (kg)	0.85
Thread (Left /right hand)	Left or Right

Anchor Plate	T40/20	T40/16
Size (mm)	200 x 200	200 x 200
Thickness (mm)	12	15
Hole Diameter (mm)	54	54
Unit Weight (kg)	3.5	4.58

Company Information

KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.

Product Tags:


*From:	Your email address is incorrect!
*To:	KSQ Technologies (Beijing) Co. Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Self Drilling Anchor Bolt
Brand Name:	MIROC
Model Number:	Hollow Grounted Anchor
Certification:	ISO
Place of Origin:	ShanDong China(Mainland)
MOQ:	100
Price:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	9000000 KG Per month
Delivery Time:	1-5 days
Packaging Details:	Carton / Wooden Box or Based on Customers
Material:	40Cr steel
Capacity:	200KN-8000KN
Type:	Anchor Bolt, Self Drilling Anchor
Diameter:	25mm-130mm
Color:	Based on customers
Length:	1m - 8m
