10A / 15A Rectifier 48V DC Power Supply System Uninterruptible

Categories Telecom Solar Power Systems
Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
MOQ: 1PCS
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Model Number: 48V 10A & 15A Rectifier Power Supply System
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

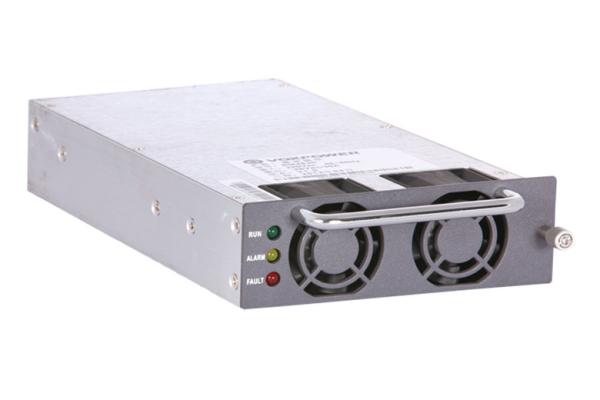

10A / 15A Rectifier 48V DC Power Supply System Uninterruptible

10A / 15A Rectifier 48V DC Power Supply System Uninterruptible

Key Features:

High power density
The efficiency is no less than 92% and the power factor is no less than 0.99, which meets the requirements of energy conservation and environment protection.
The operating voltage is within 90~300Vac
The operating temperature is within -40° C~+75° C


SR4810&4815 Rectifier Modular Series - 1U Main Technical Parameters

1. AC Input

Rated voltage: 230V

Voltage range: 85V-350VAC/90V-380VDC

Frequency range; 45-65HZ

Max. Current: 10A(30A), 7.5A(20A), 5.6A(15A), 3.7(10A)

Efficiency: >92%

Dimensions(W. H. D): 126*44(1U)*213.4(mm)

Weight(Kg); 1.5kg


2. DC Input

Standard voltage; 48V

Voltage range: 43-59V

Current Ratings; 30A, 20A, 15A, 10A

Source effect; ≤ ± 0.1%

Load effect; ≤ ± 0.5%

Stabilized voltage precision; ≤ ± 0.6%

Soft-startup Time; 6s
