High Performance Spark Plug Wire Set , High Voltage Ignition Cable Set TY0007C04

Categories Ignition Wire Set
Brand Name: TY
Model Number: TY0007C04
Certification: ISO/TS 16949:2009
Place of Origin: CHINA
MOQ: 500 Set
Price: Negotiation
Payment Terms: T/T, Western Union
Supply Ability: 100,000 pcs per month
Delivery Time: 15 working days after payment
Packaging Details: Based on customer's demand
Type: Assembly parts
Feature: Heat and cold resistance
Standard: ISO 6856 / ISO 3808
Customers: JANMOR etc.
Breakdown voltage: ≥30KV
Usage temp: -20℃~155℃
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Performance Spark Plug Wire Set , High Voltage Ignition Cable Set TY0007C04

Linking Spark Plug and Ignition Coil , Ignition Wire Set with Stable Performance


Cable properties:

  • Cable tensile strength: ≥230N
  • Shore hardness: 75±3 SH
  • Diameter of cable: 7±0.3mm
  • Usage temp range: -20℃-155℃

Product features:

  • Insertion and removal forces: 20N-70N
  • Withstand voltage: ≥30KV
  • Connector ends one: Straight part with shield, 5KΩ±20%
  • Connector ends two: Bended part,1KΩ±20%
  • Tensile strength of the cable and terminal: ≥100N

Description:

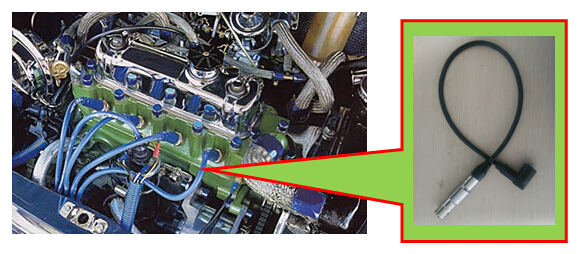

  • The product is called auto high voltage ignition wire set, also called points cylinder line or distributor cable.
  • One end of high voltage ignition cable is the terminal connecting spark plug and dustproof insulating boot, the other is the terminal connecting ignition coil and dustproof insulating sheath.
  • Usage temp of the product is -20℃~155℃.
  • Appearance of cable:smooth and flat surface, uniform color, clear writing, and no defect
  • Lifetime is not less than 50,000km or 3 years.
  • The product can be designed and developed according to customer’s requirements.

Applications:

  • The product applies to the ignition system of auto engine.
