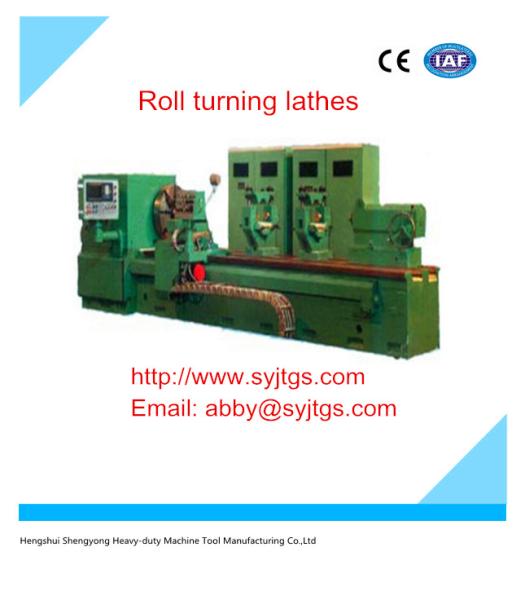

| Categories | Roll turning lathe |
|---|---|
| Place of Origin: | China |
| Brand Name: | Shengyong |
| Model Number: | Roller turning lathe |
| Certification: | iso |
| Price: | as requsted |
| Packaging Details: | as requsted |
| Delivery Time: | in stock |
| Payment Terms: | L/C |
| Supply Ability: | 3set |
| MOQ: | 1set |
Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co.,Ltdspecializes in the researches, developments, manufactures and sells of metalworking machines: turning cutting lathe,vertical Turning Lathe, vertical turret lathe，cnc turret lathe ,cnc lathe machine,Singlecolumn vertical lathe , Double columnvertical lathe machine ,Heavy duty horizontal lathe machine,Gantry milling machine,boring milling machine etc.
NO: | Title | Unit | CK84160×L/W |
1 | Max.turning diameter of workpiece | mm | 550-1800 or 550-1600 |
2 | Max.length of workpiece | dm | |
3 | Max.weight of workpiece | t | 63/80 |
4 | Height of center | mm | 1050 |
5 | Dia of faceplate | mm | 200 |
6 | Max.torque of faceplate | KN.m | 125 |
7 | Range of spindle speeds | r/min | 0.4-60 |
8 | Max cutting force of carriage | KN | 160 |
9 | Range of feed rates ( long) | mm/min | 1-4000 |
10 | Range of feed rates(Trans) | mm/min | 1-4000 |
11 | Travel of tailstock quill | mm | 250 |
12 | Dimensions of mode steady supporting | mm | 350-600 |
13 | Power of main motor | Kw | 100 |
14 | Machine weight(Approx) | t | 86(L=70) |
15 | Overall dimensions(L×W×H) | cm | 1680×402×241 |
|
