Durable Omega Shape Metal Stud Roll Forming Machine / 5.5KW Main Motor Power Furring Channel Equipment

Categories Stud And Track Roll Forming Machine
Brand Name: Sussman
Model Number: SS-MF
Certification: SGS, ISO9001, CE
Place of Origin: Wuxi Jiangsu China
MOQ: 1 set
Price: negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets per month
Delivery Time: 35-40 days
Packaging Details: Standard packing
Material: Zinc steel or color panited steel
Thickness: 0.5-0.6 mm
Forming speed: 10-15m/min
Forming stations: 11 stations
Cutting way: hydraulic cutting
Transmission: 1 inc chain drive
Hydraulic power: 4 Kw
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Durable Omega Shape Metal Stud Roll Forming Machine / 5.5KW Main Motor Power Furring Channel Equipment

Durable Omega Shape Metal Stud Roll Forming Machine / 5.5KW Main Motor Power Furring Channel Equipment


Advantage


1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable


Applications


Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss...

Technical parameter


ItemTechnical data
Steel sheet thickness0.4-0.8mm (depend on requirement )
Hydraulic power4kw
Transmission waychain
Chain1 inc chain
Capacity of Decoiler3 Ton passive decoiler
Forming Speed10-12m/min
Roller Groupsabout 13 stes main roller
Roller Material45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62
Roller Diameter100mm
Principal Axis45# high grade steel with quenching treatment
Main Motor Power5.5 Kw
Dimension5500*600*1000mm

Main Components

Machine nameQuantity
3 ton manual Decoiler1 set
Main roll forming machine1 set
Hydraulic station1 set
Hydraulic cutting device1 set
Finished poducts tabels2 stes
PLC control system1 set
Ebossing roller1 set

Furring Channel Working Flow


De-coiler—→feedingwithguide—→main roll forming machine—→cutting—→ run out table



Furring Channel Profile Drawing

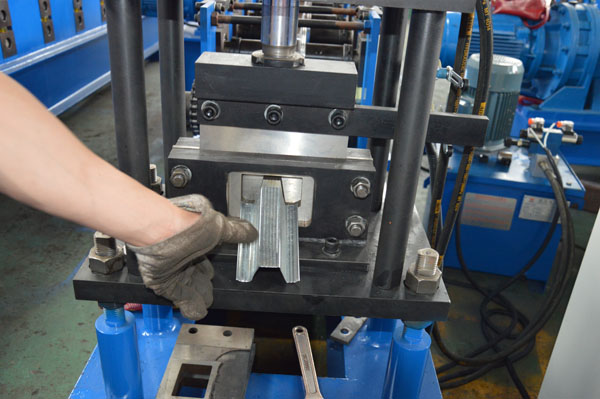

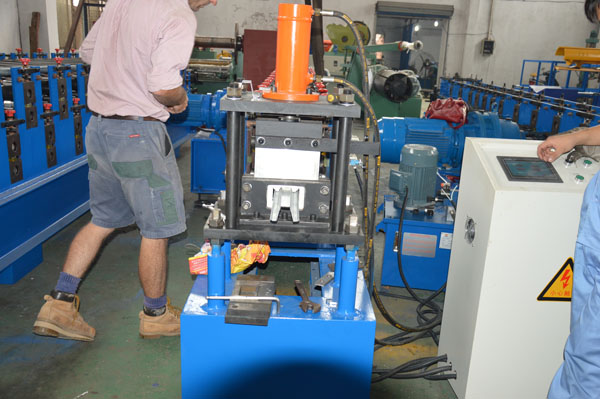

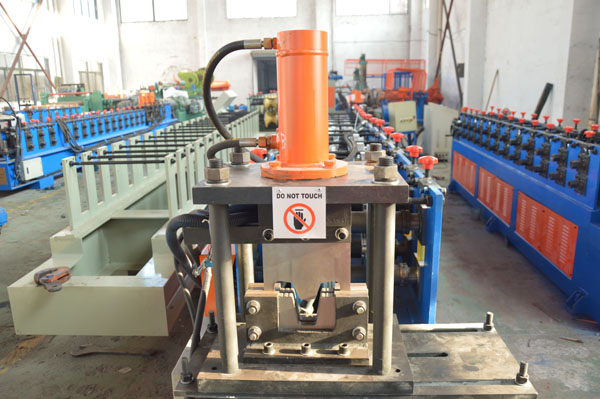

Machine Photo







Cheap Durable Omega  Shape Metal Stud Roll Forming Machine / 5.5KW Main Motor Power Furring Channel Equipment for sale
