Customized Automatic Roll Former Ridge Cap Roll Forming Machine 5.5Kw Main Motor Power

Customized Automatic Roll Former Ridge Cap Roll Forming Machine 5.5Kw Main Motor Power

Ridge Cap Technical Parameter

1. Steel Sheet Thickness: 0.3-0.8mm (depend on requirement )

2. Hydraulic power: 4Kw

3. Transmission way: 1.2 inch single chain

4. Material of blad: Cr12, quenching treatment

5. Capacity of Decoiler: 3 ton manual decoiler

6. Forming Speed: 5-10m/min (not include cutting and punching stop time)

7. Roller Groups: 16 stations

8. Roller Material: GCr15 grade steel, quenching treatment

9. Material: galvanized steel or color-coated steel

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 5.5 Kw

Ridge Cap Main Components

Working Flow of Ridge Cap

Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables

Profiles of Ridge Cap

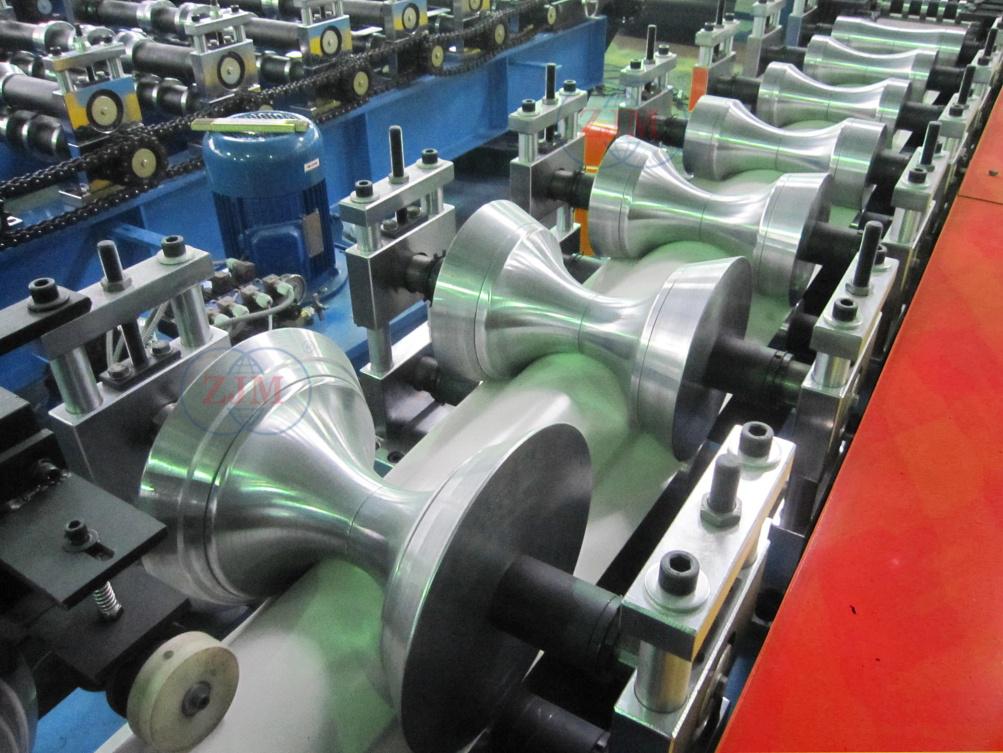

Machine pictures

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
