| Categories | 50 Ohm Coaxial Cable |
|---|---|
| Place of Origin: | China |
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, CE, RoHS, UL |
| Model Number: | Signal Coaxial Cable 670 - 141 |
| MOQ: | 1 KM |
| Packaging Details: | 100M, 300M, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Silver Plated Copper Clad Steel |
| Dielectric: | PTFE |
| Shield: | Tin Soaked Copper Braiding |
| Package: | 100M, 300M, Wooden Reel, Carton |
| Company Info. |
| HANGZHOU ZION COMMUNICATION CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Quick Detail:
Applications:
Military airborne,shipboard, and landbased microwave communications,electronic warfare and radar
systems.
Commercial communications infrastructure.
Mobile terminals.
Commercial and military satellites.

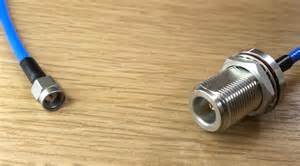

| KT0804 670-141 Semi Flexible Cable, 0.93mm Silver Plated CCS Conductor, 3.00mm PTFE Dielectric | ||
| Construction Parameters: | ||
| Inner Conductor | 0.93mm | Silver Plated Copper Clad Steel |
| Dielectric | 3.00mm | PTFE |
| Outer Conductor | Nom.3.50mm | Tin Soaked Copper Braid |
| Electrical Characteristics: | ||
| Capacitance | 95.1 pF/m | |
| Impedance | 50 Ω | |
| Velocity of Propagation | 0.695 | |
| Operating Frequency (GHz) | 34 | |
| Time Delay(ns/m) | 4.7 | |
| Max. Operating Voltage (kVrms) | 1.9 | |
| Mechanical and Environmental: | ||
| Min. Bending Radius (mm) | 8 | |
| Min.Repeated Bending Radius (mm) | 40 | |
| Operating Temp.(℃) | -55 to +125 ℃ | |
| Attenuation(20℃): | ||
| Frequency (GHZ) | Attenuation (dB/100m) | Power(Watts CW) |
| 0.5 | 26.00 | 436.50 |
| 1.0 | 39.00 | 303.40 |
| 5.0 | 92.00 | 126.70 |
| 10.0 | 138.00 | 85.50 |
| 20.0 | 210.00 | 56.60 |
| Order Informations: | ||
| Marking | Zion communication 670-141 XXX M | |
| Inner Package | 100m,305m/Wooden Spool (or Per customer's request) | |
| Outer Package | Carton, Color Box, Pallet (or Per customer's request) | |
| Delivery time | Normally 25 days after received the deposit. | |
| More informations | please contact with us. | |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and Zion communication.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
|
