| Place of Origin: | China |
| Brand Name: | BONAD |
| Model Number: | BND-12 |
| MOQ: | 1 |
| Price: | USD50-USD100 |
| Packaging Details: | aluminia box+carton box |
| Delivery Time: | 7-14days |
| Payment Terms: | T/T, PAYPAL, MONEYGRAM, WESTERNUNION |
| Supply Ability: | 1000 |

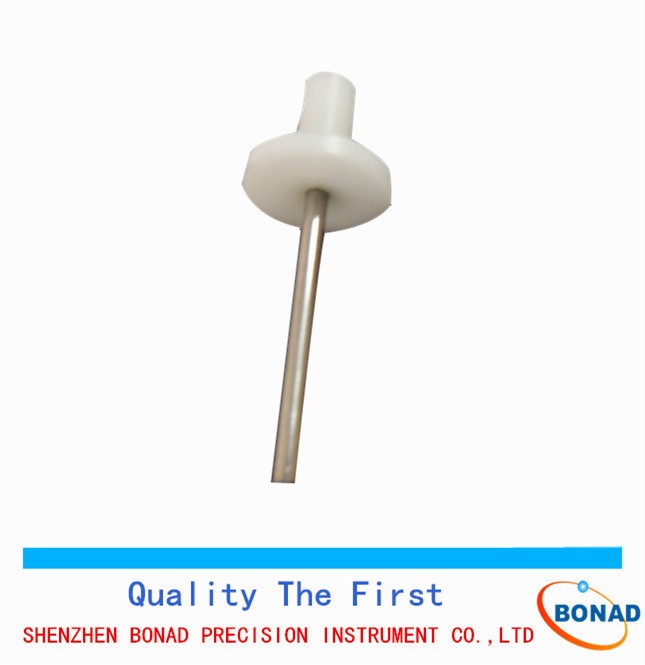

IEC60065 test pin with 50mm length for preventing the electrocute shock
Article NO.:BND-12
Technical parameters
1, The probe Diameter :4mm
2, The probe Length:50mm
3,Dam- board Diameter:25mm
4, Dam- board Length:4mm
5,Reference Standard: IEC61032:1997 in figure 8
Appliance:
The long test pin meets to the standard requirements of IEC 61032 &GB 16842, it is used for simulating screwdriver or similar sharp knife tools in the test. It is mainly used to check whether the live parts of type 0 device and type Ⅱdevice are touched .The handle dimensions (Ø 10 and 20) are not critical.
NOTE: The test pin dimensions are those given in Figure 9, test probe 13 of IEC 61032. In some cases the tolerances are different.
How to order
1. Place the order and pay directly if you have no question to the product. 2. If you have some questions, don't bother to send me a message to ask. 3. After you have paid the money, we will deliver the goods as soon as possible. |
Packaging and Shipping
1. Aluminium box and carton box, careful and tight package, make sure the package is intact. 2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order. 3. The shipping time is different, it depends on the distance bewteen us. At usual, exclude the preparing time, the goods would be sent to you in 5days. |
|
