AC 220 Volt Room Temperature Thermostat 5W , NTC Thermostat 2 Position Controlled

Categories Room Thermostat
Brand Name: Winston/OEM
Model Number: WST-6000 RCT70
Certification: CE,ROSH
Place of Origin: China,Zhejiang
MOQ: 1PCS
Payment Terms: T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability: 10000PCS/Month
Delivery Time: 3-15days after get payment.
Packaging Details: Export standard carton box
Material: Self-exting uishing PC
Voltage: 220VAC
Power: 5W
Temperature range: 10℃~40℃
OEM: Yes
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

AC 220 Volt Room Temperature Thermostat 5W , NTC Thermostat 2 Position Controlled

AC 220 Volt Room Temperature Thermostat 5W , NTC Thermostat 2 Position Controlled


Summary

The RTC70.XX is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or internally in the thermostat
The thermostat acquires the room temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.

Application

For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings…

Features

LED indicator is light when heating is on
With manual switch and knob for easy operation
On/off control output for heating device
Setback function when connecting with a programmable timer (RTC70.33&RTC70.36)
Temperature limitation function for protecting the floor (RTC70.33&RTC70.36)

Technical Parameters

Voltage: AC230V (AC110V / AC24V available)
Power consumption: 5W
Setting range: 4℃~45℃
Limitation scale: 25℃~50℃ (RTC70.33&RTC70.36)
Setback temperature: 5℃ (RTC70.33&RTC70.36)
Switching differential: ±0.5K
Ambient temperature: -5℃~50℃
Protective housing: IP20
Housing material: self-extinguishing PC
Floor sensor: rubber-thermoplastic NTC sensor,
cable length is 3m

Selection table

Model No.

Current

Sensor

Temperature limitation function

Setback function

Loading (PCS/Carton)

RTC70.13

3A

Built-in sensor

No

No

100

RTC70.16

16A

Built-in sensor

No

No

100

RTC70.26
16A
Floor sensor
No
No
100
RTC70.33
3A
Built-in & floor sensor (optional)
Yes
Yes
100
RTC70.36
16A
Built-in & floor sensor (recommend)
Yes
Yes
100

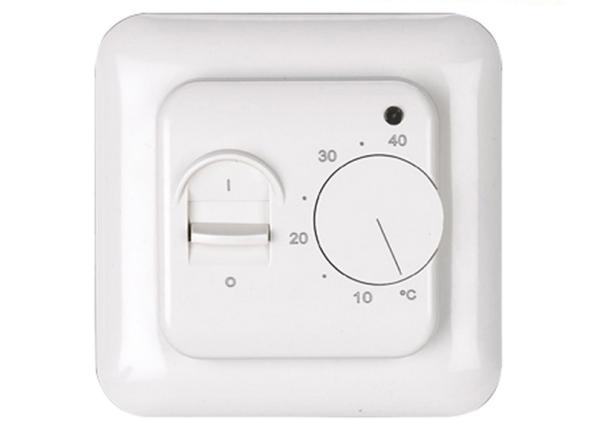

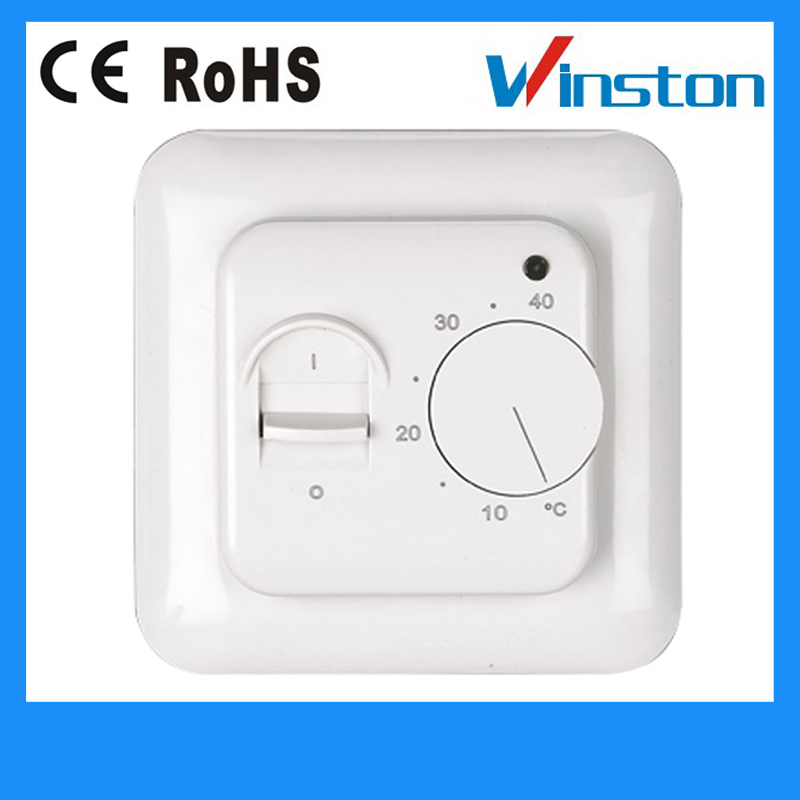

PRODUCT PICTURE



Our Services
  • Customized Samples are acceptable
  • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
  • Welcome and accept 100% customers factory inspection before the production
  • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
  • We provide 7 days 24 hours service!
