| Categories | Magnesium Anode |
|---|---|
| Brand Name: | OEM |
| Model Number: | OEM Custom-made high quality American standard C/D/S shape Mg anode , Zn anode, Al anode for cathodic protection |
| Certification: | ASTM G-97, ISO, DNV |
| Place of Origin: | China |
| MOQ: | 10 Kilograms |
| Price: | negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal |
| Supply Ability: | 300 Metric Ton/Metric Tons per Month |
| Delivery Time: | 1 FCL:14 Days |
| Packaging Details: | On pallet with steel bundles |
| Name: | ASTM C/D/S shape Magnesium anode/Zinc anode/Aluminium anode |
| Type: | American standard Magnesium anode,Aluminum Anode,Zinc Anode |
| Usage: | Anti-corrosion/Cathodic Protection Magnesium anode with backfill |
| Dimensions: | AZ63C Magnesium anode with backfill |
| Shape: | cylinder, square,D shape,ribbon ,rod,bar etc. |
| Key Words: | magnesium Anode Aluminium Anode Zinc Anode for Cathodic protection |
| Category: | High potential Mg anode for corrosion control |
| Packing inner: | Plastic waterproof |
| Company Info. |
| China Hunan High Broad New Material Co.Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
(1) Product: Magnesium Packaged Anode;Packaged Mg Anode;
(2) Material: Magnesium Alloy;
(3) Finish: Forge,Cast;
(4) Size:Standard or customized size;
(5) Standard:AZ63 or MGM1C;
(6) Characteristics: strong, stylish, durable, corrosion-resistant.

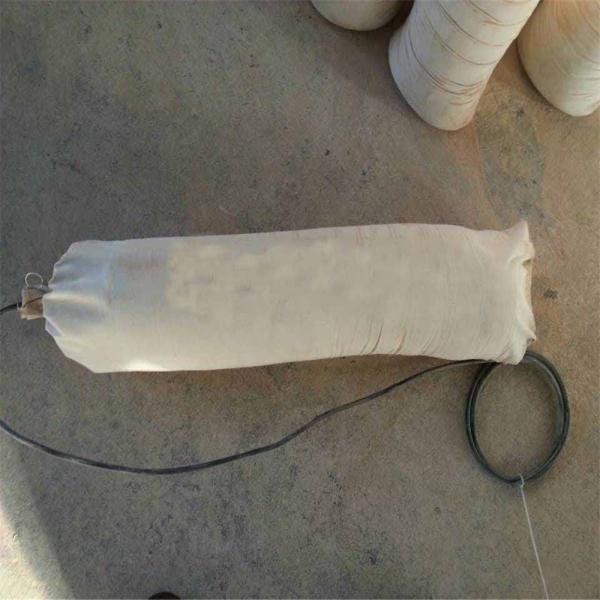

Pre-packaged Mg Anode are widely used in the Cathodic Protection(CP) industry.
- Anode assembly with cable, backfill, epoxy resin seal and
packaged in a cotton bag.
- Recyclable and easily decomposable materials.
- Environmentally safe. Harmful elements in backfill lower than
specified allowable limits.
- Composition of Backfill: Gypsum 75%, Bentonite 20%, Anhydrous
Sodium Sulphate 5%.
Backfill Pollutants Tolerance
Available Cabling Insulation/Sheath
• PVC/PVC, XLPE/PVC, HMWPE
Cable Size
• 6 mm2, 10 mm2, 16 mm2
Anode to Cable Connection Resistance
• 0.001 ohm max
Anode to Cable Pull Out Strength
• 5 x prepackage anode weight min
Application:
The corrosion of metal in salt or fresh water or in soil can be prevented by the use of galvanic anodes in a cathodic protection system. Magnesium anodes are used in such systems, most commonly to protect underground gas, oil and water pipelines.
Vivian Jiang
-----------------------------------------------
China Hunan High Broad New Material Co.Ltd.
70 Chezhan North Road,Changsha, China 410100
Tel:+86-731-85717705 Fax:+86-731-85716569
Mobile/Whatsapp: +86-139-7488-3816
Email: vivian@hbnewmaterial.com
Skype: vivian.jjy
|
