Large Diameter Bundled Conductor Stringing Block Pulley For Cable Pulling and Stringing

Categories Transmission Line Stringing Tools
Brand Name: XINYA
Model Number: FH
Certification: ISO
Place of Origin: Jiangsu,China
MOQ: 1set
Price: get latest price
Payment Terms: L/C, T/T,
Packaging Details: 1000 sets per month
Application: Overhead Transmission Line
frame: steel
size: 508/660/916mm
Usage: stringing
Type: Block And Tackle
Material: Nylon or Aluminum sheave
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

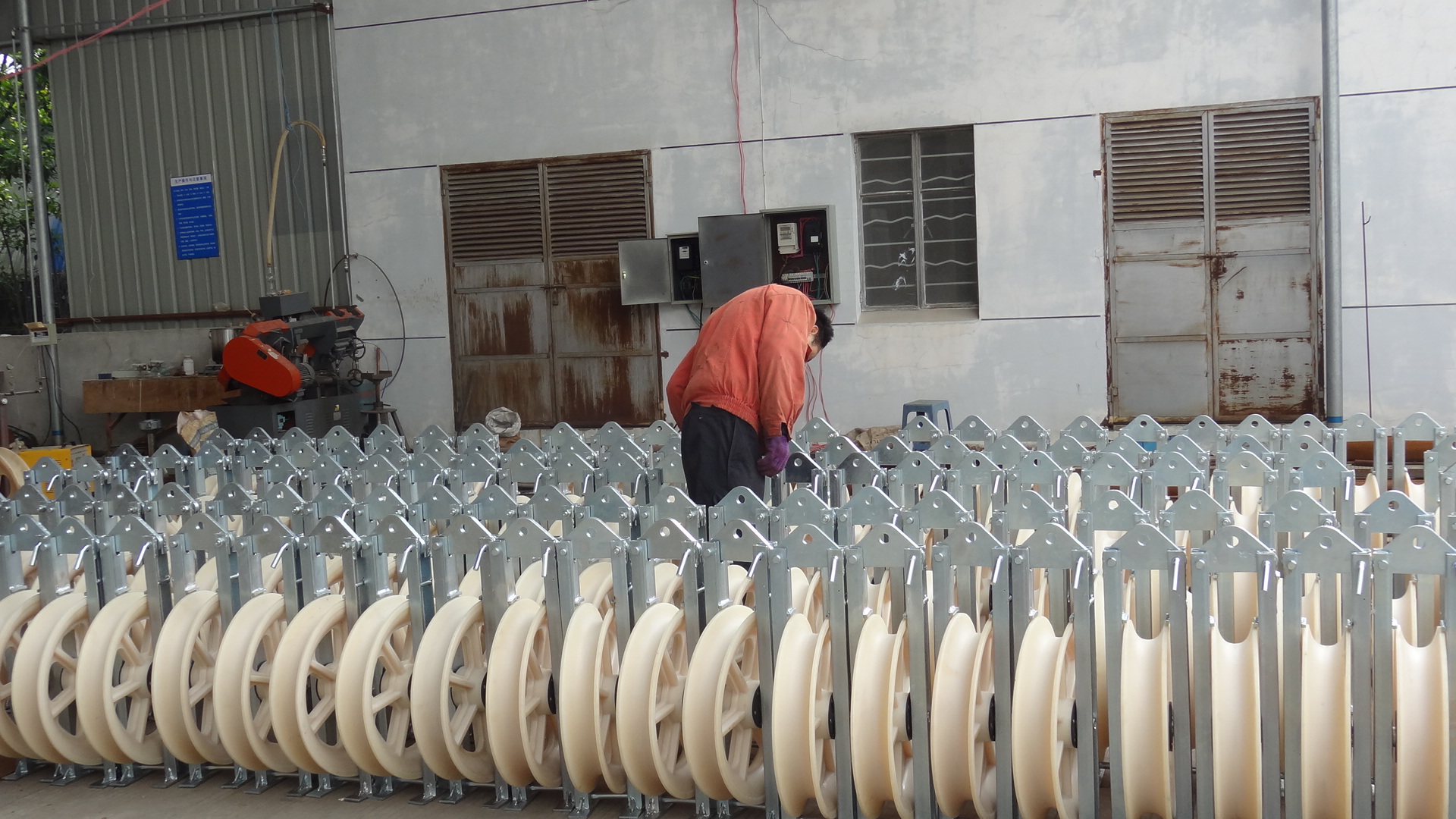

Large Diameter Bundled Conductor Stringing Block Pulley For Cable Pulling and Stringing

Large Diameter Bundled Conductor Stringing Block Pulley For Cable Pulling and Stringing


Uses: Apply to paying off single conductor, twin bundled conductor or four bundled conductor on overhead transmission line construction.
Specification: Product can be made of aluminum wheel with rubber liner, MC nylon wheel with rubber liner or strengther nylon wheel with PU liner.

Item No.
Model No.
Sheave Number
Rate Load
(KN)

Unit Weight
(KG)
Sheave Features
0357
SHD508
Single
20
18
Aluminum wheel with rubber liner
0358
SHDN508
Single
20
16
MC nylon wheel
0359
SHSLN508
Three
40
47
Middle: MC nylon wheel
Condctor: Aluminum wheel with rubber liner
0360
SHWLN508
Five
60
79
0361
SHSQN508
Three
40
43
MC nylon wheel
0362
SHWQN508
Five
60
70

Note:

1. Max applicable conductor is ACSR400.
2. Sheave diameter(external diamter x groove diameter x width) is Ф508 x Ф408 x 75 mm.


Item No.
Model No.
Sheave Number
Rate Load
(KN)
Unit Weight
(KG)
Sheave Features
0363
SHD660
Single
20
30
Aluminum wheel with rubber liner
0364
SHDN660
Single
20
24
MC nylon wheel
0365
SHSLN660
Three
40
92
Middle:MC nylon wheel
Conductor: Aluminum wheel with rubber liner
0366
SHWLN660
Five
60
120
0367
SHSQN660
Three
40
76
MC nylon wheel
0368
SHWQN660
Five
60
110

Note:

1.Max applicable conductor is ACSR500.
2.Sheave diameter(external diamter x groove diameter x width) is Ф660 x Ф560 x 100 mm.


Item No.
Model No.
Sheave Number
Rate Load
(KN)
Unit Weight
(KG)
Sheave Features
0369
SHDN822
Single
30
25
MC nylon wheel
0370
SHSQN822
Three
60
118
0371
SHWQN822
Five
120
180

Note:

1.Max applicable conductor is ACSR630.
2.Sheave diameter(external diamter x groove diameter x width) is Ф822x Ф710 x 110 mm.



Packing & Delivery

Packing Details : Usually, the products should be bulk pack into wooden board carton.
Delivery Details : We always making stock of regular items in order to satisfy market demand so the delivery time is very
quick.
