Perforated Cable Tray Manufacturing Machine , Roll Forming Equipment Low Noise

Perforated Cable Tray Roll Forming Machine


Main features

Our cable tray roll forming machine is capable of making different sizes of cable trays through automatic adjust and replacing punching mold. The cable trays produced by this roll forming production line are extensively used in petroleum, chemical, electric power, light industry, television, and telecommunications.

In order to improve punching precision, we adopt servo feeding technology to make sure that the punching accuracy can reach more or less than 0.15 mm.In consideration of decreasing sheet distortion caused by rear cutting, cable tray roll forming machine is designed with front cutting device. This roll forming production line is also equipped with a proper guiding device to ensure that the front-cutting sheet can be fed into the roll former correctly.


Working flow

Decoiler——Feeding——Punching&Cutting——Roll forming——Output table



Technical parameter

Raw materialGalvanized steel sheet; thickness:0.8-2mm
Forming speedAbout 10-20m/min.
Production speedAbout 6-8m/min.
Material of forming rollersGcr15, quenched treatment

Material of cutter,

punching die

Cr12Mov HRC58-60
Material of shaft

High quality 45# steel with heat treatment.

Roller grinder milling.

Type of cuttingAfter roll-formed and length-set cutting
Total motor powerabout 50Kw
Control systemMitsubishi /Siemens PLC

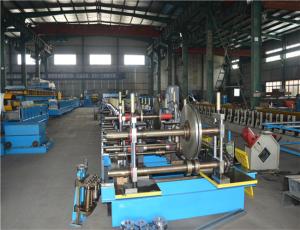

Machine picture



Machine components

1. (Hydraulic) De-coiler------------------------------1set

2. Leveler------------------------------------------------1set

3. Punching machine----------------------------------1set

4. Cutting device ---------------------------------------1set

5. Forming machine------------------------------------1set

6. PLC control box -------------------------------------1set

7. Hydraulic pump station-----------------------------1set

8. Production support table---------------------------1set


Profile drawing
