Brand Name: | YOMIN |
Model Number: | MR series |
Certification: | CE / RoHS |
Place of Origin: | Zhejiang , China ( Mainland ) |
MOQ: | 50 Piece |
Price: | Negotiation |
Payment Terms: | L/C , T/T , Western Union , Paypal |
Supply Ability: | 1000 Pieces Per Week |
Delivery Time: | 5 - 20 working days after received your payment |
Packaging Details: | Export carton , 4 Pieces / Carton |
Primary current: | 100A-5000A |
Secondary current: | 5A, 1A |
Phase: | Single phase |
Coil Number: | Autotransformer |
Frequency: | 50/60Hz |
Burden: | 2.5VA ~ 30VA |
Coil Structure:: | Toroidal |
Rated security coefficient: | Fs<5 |
Company Info. |
YUEQING YOMIN ELECTRIC CO., LTD |
View Contact Details |
Product List |
High Precision DP Series Split Core Current Transformer Clamp On Current Transformer
Description :
MR model Current Transformer is A range of (6 standard silicon steel core models) tape
wrapping current transformer, low cost, widely used in southeast Asia. It can be used with or
without foot and plastic cover.
Advantage:
1. Small size,
2. high accuracy,
3.good consistency,
4. for current and power measurement

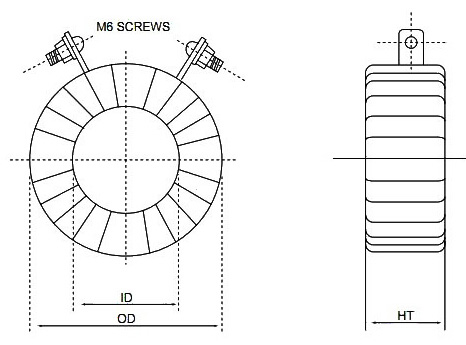

Model | Specification | ID | OD | HT |
MR-28 | 30/5A-60/5A | 28 | 70 | 40 |
MR-42 | 100/5A-250/5A | 42 | 80 | 30 |
MR-45 | 300/5A | 45 | 80 | 30 |
MR-60 | 400/5A | 60 | 100 | 30 |
MR-60 | 500/5A-600/5A | 60 | 100 | 30 |
MR-85 | 800/5A-1600/5A | 85 | 120 | 20 |
MR-125 | 2000/5A | 125 | 165 | 20 |
![]() |
