Underground Low Profile Dump Truck Reliability Articulated Dump Truck

Categories Low Profile Dump Truck
Brand Name: MIROC
Model Number: Underground Mining Dump Truck
Certification: CE
Place of Origin: AnHui,China
MOQ: 1 Set
Price: negotiation
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 40 Set/Sets per Month
Delivery Time: 30-60 Days after receiving payment and order confirmation
Packaging Details: Nude Packed or Based on Customers
Type: Underground Mining Dump Truck
Color: Yellow,Orange
Volume Capacity: 6m3,7.5m3
Tramming Capacity: 12000KG,15000KG
After-sales Service Provided: Engineers available to service machinery overseas
Engine: DEUTZ BF6L914 Turbocharged air cooled diesel engine
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Underground Low Profile Dump Truck Reliability Articulated Dump Truck

Underground Low Profile Dump Truck Reliability Articulated Dump Truck

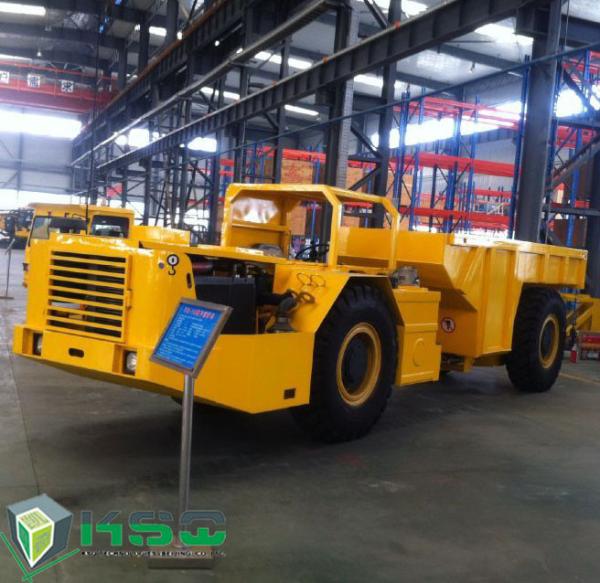

The RT-12 Low Profile Dump Truck is ideal for medium scale rock excavation operations that
require high haulage productivity. Works perfectly with the RL-2 LHD Machine. The RT-12
maintains the simple yet very robust design tenets of what a mining equipment should be
- it has a small footprint and turning radius suitable for small envelope sizes, high proven
reliability, and straight-forward mechanical components that are easy to maintain.

Main DimensionsLength7956mm
Width1804mm
Height2150mm
Turning RadiusInside3600mm
Outside6057mm
Volume Capacity6m3
Tramming Capacity12000kg
EngineDEUTZ BF6L914 Turbocharged air cooled diesel engine
Torque ConverterDANA C273
TransmissionDANA R24000
AxlesMERITOR CY-2J
Tires14.00-24.00 E3

Applications of Low Profile Dump Truck

Underground Mining
Hydropower Tunneling
Roadway/Railway Tunneling


Specification of Low Profile Dump Truck

Low Profile Dump Truck
TypeMain Dimensions (L*W*H)Volume CapacityTramming CapacityEngineTorque ConverterTransmissionAxles
RT-12

7956*18

04 *2150mm

6m312000 kgDEUTZ BF6L914 diesel engineDANA C273DANA R24000MERITOR CY-2J
RT-15

7956*18

04*2150mm

7.5m315000 kgDEUTZ BF6L914C diesel engineDANA C273DANA R32000DANA 16D
RT-20

9046*22

80*2325mm

10m320000 kgDEUTZ BF6M1013FC diesel engineDANA CL5000DANA R36000DANA 19D
MT30D

10150*27

00*2600mm

16m333000 kgCUMMINS QSX15 diesel engineDANA CL8000DANA 6000KESSLER D91
Our Services


ROXMECH® Rock Excavation and Service/Support Equipment include:
RL-1 Load-Haul-Dump Machine
RL-2 Load-Haul-Dump Machine
RL-3 Load-Haul Dump Machine
RL-4 Load-Haul Dump Machine
RT-12 Low Profile Dump Truck
RT-15 Low Profile Dump Truck
RT-20 Low Profile Dump Truck
MT30D Low Profile Dump Truck
RS-3 Service Vehicle Series

MG-64A-SB Shotcrete Batcher
MT30M Low Profile Transmixer

Company Information

ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
Service Vehicles, and Personnel Carriers.
ROXMECH® was developed through years of exchanges and hands-on work with mining
operations in China and some parts of the world where mining is the lifeblood of the econ-
omy. In every product we build, our reputation and experience can be seen. That’s the rea-
son to choose us if you are looking to improve your productivity and reduce costs.
