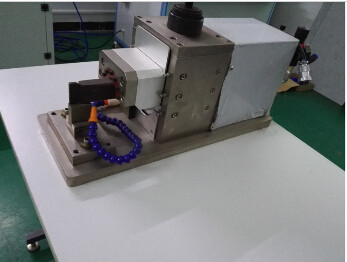

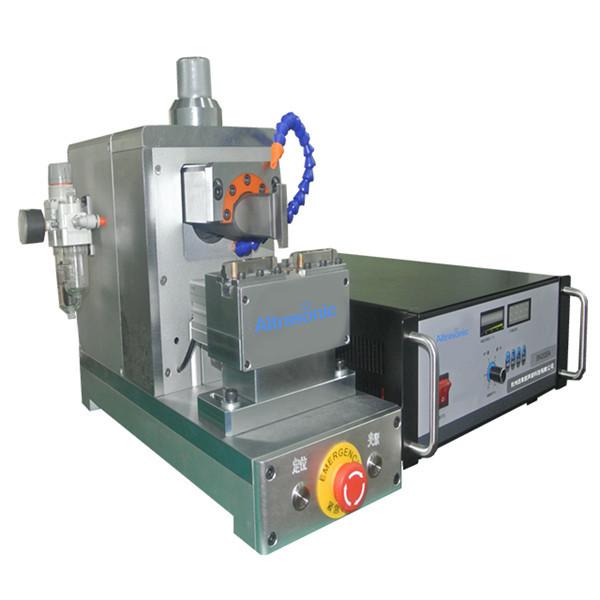

Low Energy Demand Ultrasonic Metal Welding Machine

Low Energy Demand Ultrasonic Metal Welding Machine For Joining Nonferrous Metals

Description:

ultrasonic metal welding machine is the high frequency vibration between the work piece surface, until the contact surface heating and welding together. As copper, silver, nickel chromium canwelding to dot or strip, which can be widely applied to the silicon chip fuses, quick fuse melts melting, electrical wire terminals, lithium ion, nickel metal hydride, nickel cadmium battery pole piece such as dot, strip welding.

Specification:

Principle:

By using the ultrasonic high frequeccy vibration principle, the ultrasonic metal welder converts the ultrasonic vibration energy into friction energy to transfer the metal’s surface. Under condition of producing the heat by the friction and putting apressure to the metal, The metal pieces will fuse.

Application:

1, nickel oxide and nickel battery nickel screen films each melt.

2, lithium batteries, polymer batteries each melt copper and nickel films, aluminum foil and aluminum melting each other.

3, wires melt each other, forming a partial melt with more than each other.

4, wires and various electronic components, contacts, connectors, each melt.

5, various household appliances, automotive supplies, large-scale cooling block.

6, electromagnetic switches, non-fuse switch high current contact, dissimilar metal sheets of mutual melting.

7, the metal tube end sealing, cutting can be water, gas-tight.

Main Advantage:

1. Fast Heating: The minimum rate of heating is less than one second(rate of heating is available for adjustment and control)

2. Wide Coverage of Heating: It can be used to heat various metal parts (replace removable induction coil as per different shape).

3. Easy Installation: It can be used once it is connected with power source, induction coil as well as water supply pipe and rising pipe; it is small in size and light in weight.

4. Easy Operation: You can learn to operate it within several minutes.

5. Fast start-up: It can be started to perform heating operation on condition that water and power supply is available.

6. Low Power Consumption: As compared with conventional vacuum tube high frequency equipments, it can save the power by approximately 70%. The smaller the size of the work pieces, the lower power consumption would be.

7. High Effectiveness: It has such features as uniform heating ( it is applicable to adjust the spacing of the induction coil to ensure the appropriate temperature as required by each part of work piece ), fast warming and limited oxic horizon, and can gurad against any waste after annealing.

8. Comprehensive Protection: It has such functions as overvoltage, over-current, overheat and water shortage alarm indications as well as automatic control and protection.

9. Controllable Temperature: It is applicable to control the temperature for heating work pieces as per the preset heating time, and thereby control the heating temperature at a certain technical point.

10. Comprehensive Full Load Design: It can work continuously for 24 hours

11. Small Size And Light Weight: It has a weight of only several dozens of kilograms, of which, the limited floor space can effectively save the workshop space. Sound operational environment: it is favorable for environmental protection, conservation of energy and safety operation, which is free of any noise, exhaust gas and dust.

12. Elimination of High Voltage: it requires no step-up transformer which may produce approximately ten thousand voltage, and thus can ensure the maximum safety.

Ultrasonic Metal Welder for Joining Nonferrous Metals with Low Energy Demand, Generate minimal Component Heat
