PPR Hot / Cold Water Pipe Plastic Extrusion Machine 16 - 200mm Pipe

Categories Plastic Extrusion Machine
Brand Name: AORUI
Model Number: SJ-90/30
Certification: CE UL CSA ISO9001
Place of Origin: China
MOQ: One set
Price: Negotiable
Payment Terms: T/T L/C Western Union
Supply Ability: 10 Sets per month
Delivery Time: 30 days
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
screw type: single screw
type: PPR pipe extruder
certificate: CE,ISO9001
feature: high speed and capacity
product pipe: hot and cold water pipe
pipe range: according to customer
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

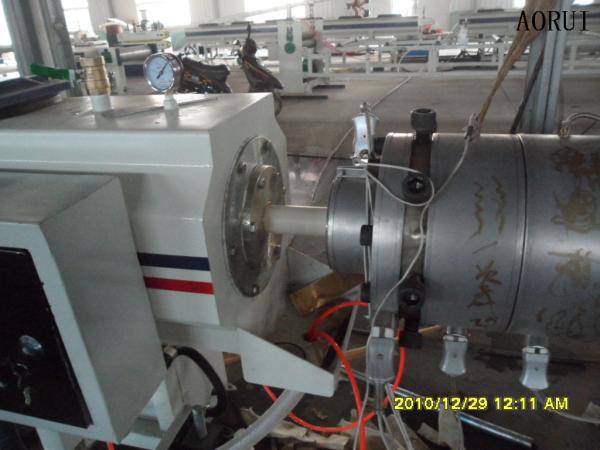

PPR Hot / Cold Water Pipe Plastic Extrusion Machine 16 - 200mm Pipe

PPR Hot / Cold Water Pipe Plastic Extrusion Machine 16 - 200mm Pipe ​


Quick detail:


1. PPR pipe extrusion line can be used to produce three-layer PP-R pipe, in the middle, it is fibre glass or Aluminum


2. PPR pipe extrusion line can be used to produce PE-RT pipes


3. application:Hot and cold water pipe


Description:


PPR Pipe Extrusion Machine/ppr pipe extusion line is mainly used to produce pipe material whose raw material is mainly PP-R resin. It is also suitable for producing pipe materials of PP, PPB, PPC, and PEresin.


Raw material+master batches →mixing → vacuum feeding→material dryness → single screw extruder → color string extruder → spiral mould → calibrator → spray vacuum calibration tank → spray cooling water tank →spray-code printer → belt haul-off → no-dust cutter → pipe rack → finished product inspecting&packing


1. Diameter: 16~160mm
2. Pipe material:PPR
3. Line length: 30m~38m

it can also be equipped with length-measuring and thickness increasing instruments . this line is characterized of reliable performance and high production efficiency . anti-noise spiral pipe and foam core pipe production lines are also available according to customers requirement.


Applications:


1. building hot and colde water system, including central heating system;
2. building heating system, including floor,wall and radiant heating system;
3. can be directly used in purfied water drinking water supply system.
4. Central air condition system'
5. Adopts co-extrusion die head and adds marking line for pipes


Specifications


Model/Spec.

Diameter range (mm)

Extruder model

Line speed (m/min)

Max. Capacity (kg/h)

Installed power (KW)

LPSG110

50-110

LSJ65/30

0.5-2m/min

100

50

LPSG200

75-200

LSJ90/30

0.5-2 m/min

140

80


Competitive Advantage:


1. Super quality and competitive price
2. With a variety of models


Cheap PPR Hot / Cold Water Pipe Plastic Extrusion Machine 16 - 200mm Pipe for sale
