Electrical Thermocouple Components , Thermocouple Ceramic Alumina Insulator

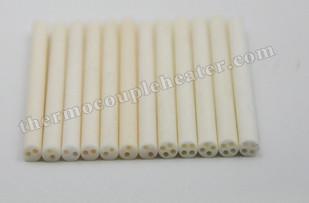

Alumina Thermocouple Ceramic Insulator

1. Thermocouple Ceramic Insulator Brief Introduction

They are used to provide electrical insulation to the couple which is used for sensing the temperature inside the furnace. These are single, twin , Four hole bore . These are generally used in small lengths of 25mm. However longer lengths are sometime preferred in critical applications

Al2O3 content determines the measuring temperature level, Al2O3 content higher, the temperature is higher.

Alumina has a wide application due to its versatility and low material cost. Alumina possesses a high melting point, strong hardness, and good chemical stability, making it a good material to withstand high temperature and chemical corrosion. Call for any custom production request.

2. Thermocouple Ceramic Insulator Characteristics

• Available in Wide Range of Sizes
• Single Hole, Two Hole and Four Hole Insulator
• Service temperature up to 1800°c
• Various processing methods make right tubes for different usage, including extruding, casting, pressing etc.
• Tubes can be grinding, drilling holes etc according to the requirements of customers.

3. Thermocouple Ceramic Insulator Parameter.

4. Thermocouple Ceramic Insulator Application

• Furnace tube for resistance furnaces, heat treatment furnaces
• Chemical analysis for steel and iron
• Various insulationg parts for high temperature resistance and etching resistance
• Temperature measuring meters
• Protection and insulation for thermocouples and thermometers

5. Transportation

Wuhan Global Metal Engineering Co., Ltd (GME) specialize in the supply of heating elements and  temperature sensors(thermocouples & RTDs) for a vast array of industries since year 1995.

Our main products include but not limited to Coil heater, Cartridge heater, Flexible Tubular heater, Cast-in Heater, Band heater, Thermocouple, RTD’s, Thermocouple extension wire, Thermocouple connection head , Mineral Insulated thermocouple cables , thermowell, etc.

After 20 years growth, we have more than 200 employees in the factory including 50 sophisticated technicians. Our products have been exported to many countries including North America, South America, Europe, Middle East ,South Asia, etc.

More details, you can also visit our website: http://www.gmemetal.com
