Reinforcement bar Couplers, weldable coupler connecting bars

Categories Hex. Nuts and Couplers
Place of Origin: China
Brand Name: Longquan
Certification: ISO9001:2008
Model Number: LQ-076
MOQ: None
Price: Ask LQ
Packaging Details: Hex. nuts in bags
Delivery Time: 20 days
Payment Terms: T/T; L/C
Supply Ability: Large Qty.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

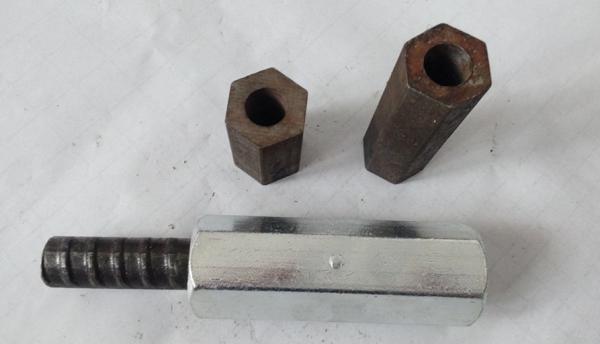

Reinforcement bar Couplers, weldable coupler connecting bars

Steel Hex. nuts, Hexagonal nut with stop pin, bar coupler, connecting nuts, square nuts

Article No.Bar Ø
(mm)
Length
(mm)
Hex
(mm)
Weight
(kg)
LQ-076/30-151530300.15
LQ-076/50-151550300.22
LQ-076/70-151570300.30
LQ-076/30-202030360.16

LQ-076/70-20

LQ-076/110-20

20

20

70

110

41

36

0.60

0.64

Cast, galvanized; Customized size available.
For barØ15, working load 90KN to DIN 18216, breaking load>190KN
For barØ20, working load 150KN to DIN 18216, breaking load>350KN
Hex Nut L=30 are for securing connection, not for taking bar load.

Material: Carbor steel

We, Hebei Longquan Industry Co., Ltd. (formworkparts), are the manufacturer of formwork parts and scaffolding accessories from China. We mainly supply wing nuts, tie rod, water stop, hex. nuts, bar couplers, rapid clamps, frame formwork clamps, jack base, U head jack, prop nuts, prop sleeves, and other scaffolding fittings.
