Westfalia Structure High Speed Automatic Continuous CIP Disc Stack Centrifuges Filtration Systems For Coconut Oil

Categories Disc Stack Centrifuges
Brand Name: Peony
Model Number: PDSC-204SD
Certification: ISO
Place of Origin: China
MOQ: 1
Price: USD32000
Delivery Time: 20-60working days
Packaging Details: virgin coconut oil extraction machine + Film + Standard Export Wooden Case
Payment Terms: D/A, D/P, L/C, Western Union, MoneyGram, T/T
Name: 3Phase Coconut Oil Separator Centrifuge
Capacity: <1000L/Hr
Workding dia of bowl: 230mm
RPM: 11200
Discharge: Self-cleaning (PLC control)
Noise: ≤85dB(A)
Vibration: ≤2.8mm/s
Starting Mode: Frequency Startup
Driving Mode: Belt Drive
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Westfalia Structure High Speed Automatic Continuous CIP Disc Stack Centrifuges Filtration Systems For Coconut Oil

Westfalia Structure High Speed Automatic Continuous CIP Disc Stack Centrifuges Filtration Systems For Coconut Oil


Product overview:


The drum body, drum cover, and valve of the separator are made of high-strength stainless steel, while other parts are constructed from high-quality stainless steel. The disc stack and separator shell utilize SS304 stainless steel.


The drive structure support incorporates SKF bearings and is designed optimally to reduce the center of gravity of the drum. This design effectively minimizes vibration levels throughout the separator, enhances equipment reliability, and increases overall stability.


During disassembly and maintenance, the drum parts can be hoisted as a single unit, making it more convenient to remove the main lock ring. This streamlined process saves time and labor, facilitating easy drum installation.


The separator undergoes precise dynamic balancing of the drum, resulting in reduced vibration and improved stability.


The separator employs separation factor technology, enabling the separation of challenging products. Despite its compact size, the machine offers significant capacity and high separation efficiency.


The separator incorporates an advanced belt drive system, which enhances reliability and maintainability while reducing the cost of spare parts.


Technical specification:


Capacity

< 1000L/h

Working diameter of bowl

Φ230mm

RPM

11200rpm

Discharge type

Self-cleaning (PLC control)

Vibration

≤2.8mm/s

Noise

≤85dB(A)

Starting Mode

Frequency Startup

Driving Mode

Belt Drive

N.W.

371kg

Dimension (L*W*H)

930×750×1050mm

Motor

Power

7.5kW


The details, pls kindly check PSWDB204SD-01.pdf for reference, thank you.

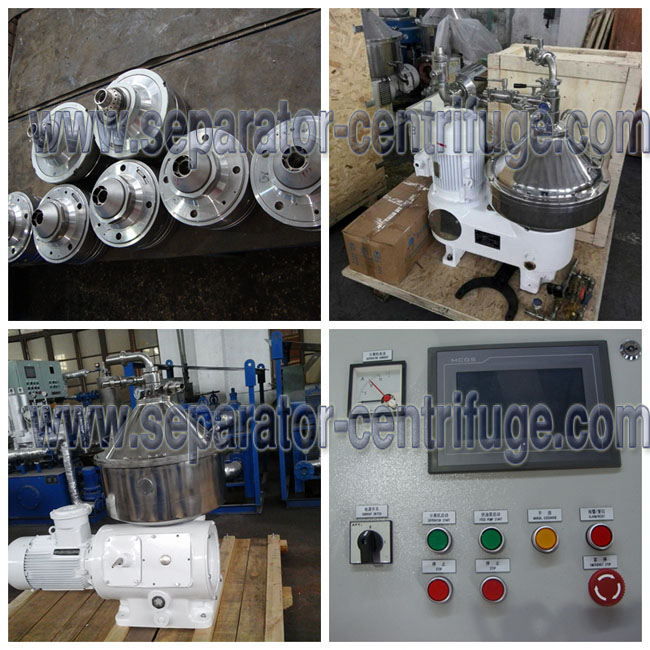

Pictures:


Cheap Westfalia Structure High Speed Automatic Continuous CIP Disc Stack Centrifuges Filtration Systems For Coconut Oil for sale
