| Categories | JIS Marine Bronze Valve |
|---|---|
| Place of Origin: | Qingdao |
| Brand Name: | CXD &OEM |
| Model Number: | JIS F7398 |
| Standard or Nonstandard: | Standard |
| Structure: | Angle |
| Port Size: | DN15--DN80 |
| Certification: | BV/ABS/CCS/GL/DNV |
| MOQ: | 1 |
| Packaging Details: | exprot packing |
| Delivery Time: | 1-15 days |
| Payment Terms: | T/T ,LC/ |

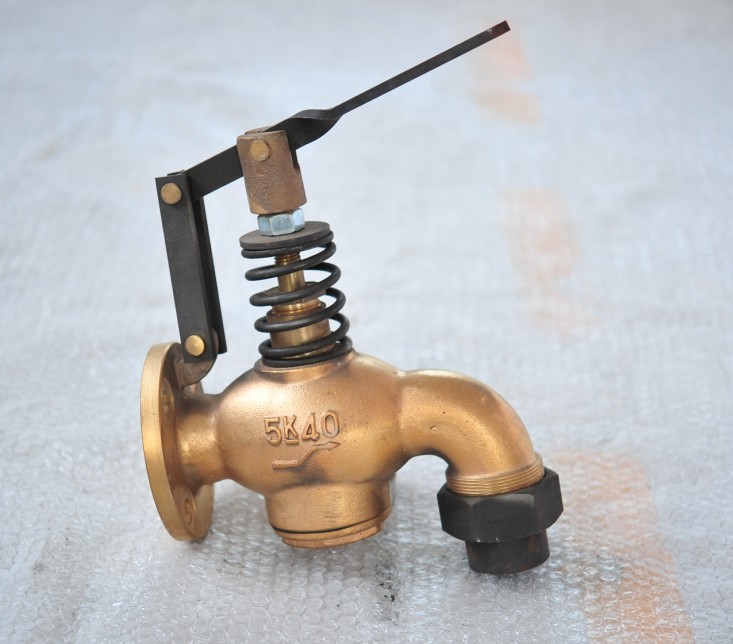

Marine Bronze Fuel oil Tank Self-Closing Drain Valve JIS F7398 has two types,
U type and F type.
The pressure can be 5K or 10k, and the operation type can be lever or push button.
Design Standard: JIS F7398-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body-0.15Mpa, Seal-0.11Mpa
Flange size as per JIS B2220 - 5K or 10K
1.Body: Bronze (BC6)
2.Bonnet: Bronze (BC6)
3.Disc: Bronze (BC6)
4.Stem: Brass (C3771BD)
5. Gasket: non-asbestos
| 5K Bronze Spring Loaded Drain Valve (U-Type) self closing drain valve F7398 | 15A |
| 20A | |
| 25A | |
| 40A | |
| 50A | |
| 65A | |
| 10K Bronze Spring Loaded Drain Valve (U-Type) | 15 |
| 20 | |
| 25 | |
| 32 | |
| 50 |
