Made-in-China M16 Anchor Bolt Extension Galvanised,expansion bolt, expansion anchor bolt

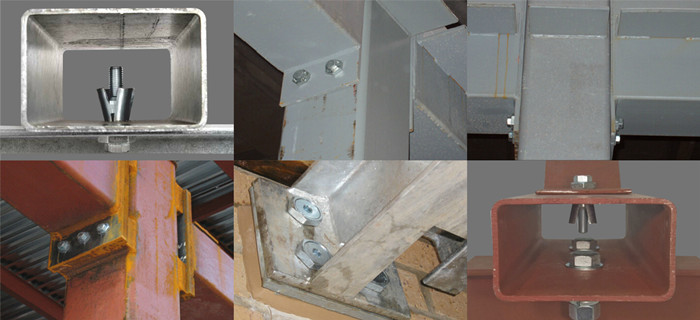

Our Beishuo expansion bolt for structural steel tubeis suitable for use with rectangular, square and circular steelwork sections, or other types of metalwork where access is restricted to one side only.

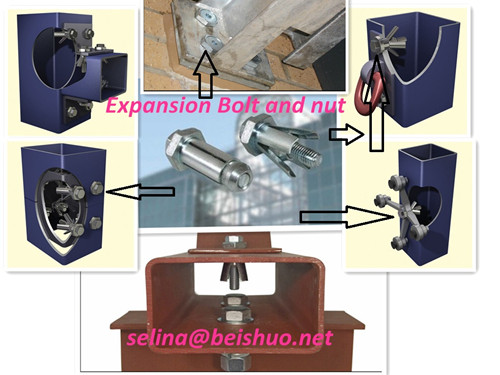

Our Beishuo expansion bolt for structural steel tubeis ablind bolt connectorthat can be tightened down from one side. The hexagonal sleeve allows it to be held in position with an open ended wrench while a torque wrench is used to tighten the core bolt. As the core bolt is tightened the threaded wedge is drawn up inside the body, the fins expand, and a secure connection is made.
Product Description:
Boxbolt is a fully tested and approved blind fixing solution for
connecting to hollow section steelwork or to general ones or where
access is restricted to one side only. The Boxbolt fixing is
suitable for use with rectangular,square and even circular hollow
sections with Large overlapping fixing Range and safety.
The Boxbolt is available in three finishes: Zinc, Hot Galvanised,
Stainless steel.
Product details:Factory made-in-china M16x26x120mm anchor bolt extension suitable
for use with rectangular
Product Description
Boxbolt is a fully tested and approved blind fixing solution for
connecting to hollow section steelwork or to general ones or where
access is restricted to one side only. The Boxbolt fixing is
suitable for use with rectangular,square and even circular hollow
sections with Large overlapping fixing Range and safety.
The Boxbolt is available in three finishes: Zinc, Hot Galvanised,
Stainless steel.
Sizes:M16X26X100mm
Diameter:26mm
Length:100mm
Material: Carbon steel
Finish:galvanised
Weight:421.2g
Packing: Small box packing or customized
| Part No.&description | dimensional information | load information | |||||||||||
| bolt size | code | size | length(mm) | fixing range (dim x) | across of shoulder (mm) | shoulder thickness (mm) | DimA | DimB | Hole size | bolt dia | safe working loads(kn) | torque(Nm) | |
| min | max | shear | |||||||||||
| M6 | BS1_06 | 1 | 45 | 3 | 29 | 18 | 5 | 30 | 11 | 11 +1.0,-0.25 | M6 | 5 | 19 |
| M8 | BS1_08 | 1 | 50 | 3 | 26 | 22 | 6 | 35 | 13 | 14 +1.0,-0.25 | M8 | 7 | 25 |
| BS2_08 | 2 | 70 | 12 | 46 | |||||||||
| BS3_08 | 3 | 90 | 24 | 66 | |||||||||
| M10 | BS1_10 | 1 | 50 | 3 | 23 | 24 | 7 | 40 | 15 | 18 +1.0,-0.25 | M10 | 13 | 45 |
| BS2_10 | 2 | 70 | 15 | 43 | |||||||||
| BS3_10 | 3 | 90 | 30 | 63 | |||||||||
| M12 | BS1_12 | 1 | 55 | 3 | 25 | 26 | 8 | 50 | 18 | 20 +1.0,-0.25 | M12 | 15 | 80 |
| BS2_12 | 2 | 80 | 18 | 50 | |||||||||
| BS3_12 | 3 | 100 | 36 | 70 | |||||||||
| M16 | BS1_16 | 1 | 75 | 3 | 35 | 36 | 9 | 55 | 20 | 26 +2.0,-0.25 | M16 | 35 | 190 |
| BS2_16 | 2 | 100 | 24 | 60 | |||||||||
| BS3_16 | 3 | 120 | 48 | 80 | |||||||||
| M20 | BS1_20 | 1 | 100 | 3 | 42 | 46 | 11 | 70 | 25 | 33 +2.0,-0.25 | M20 | 40 | 300 |
| BS2_20 | 2 | 130 | 30 | 72 | |||||||||
| BS2_20 | 3 | 150 | 60 | 102 | |||||||||
Install:
Test Equipment:
Company Information:
Yuyao BeiShuo Hardware Co., Ltd. is specialized in wheel lug nuts,
wheel lug bolts, wheel locks, wheel adapter, wheel spacer, hub
centre ring, socket spanner, pressing and plastic products.
How to contact us:
Contact: Selina
email: selina@beishuo.net
skype: holybase01
Mob: 86-18661621169
|
