High Speed Safty Paper Tea Cup Making Machine With Self Lubrication System

Categories Paper Tea Cup Making Machine
Brand Name: Mingyuan
Model Number: JBZ-X12
Certification: CE
Place of Origin: China
MOQ: 1 Set
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30 Sets each Month
Delivery Time: 35 - 40 days

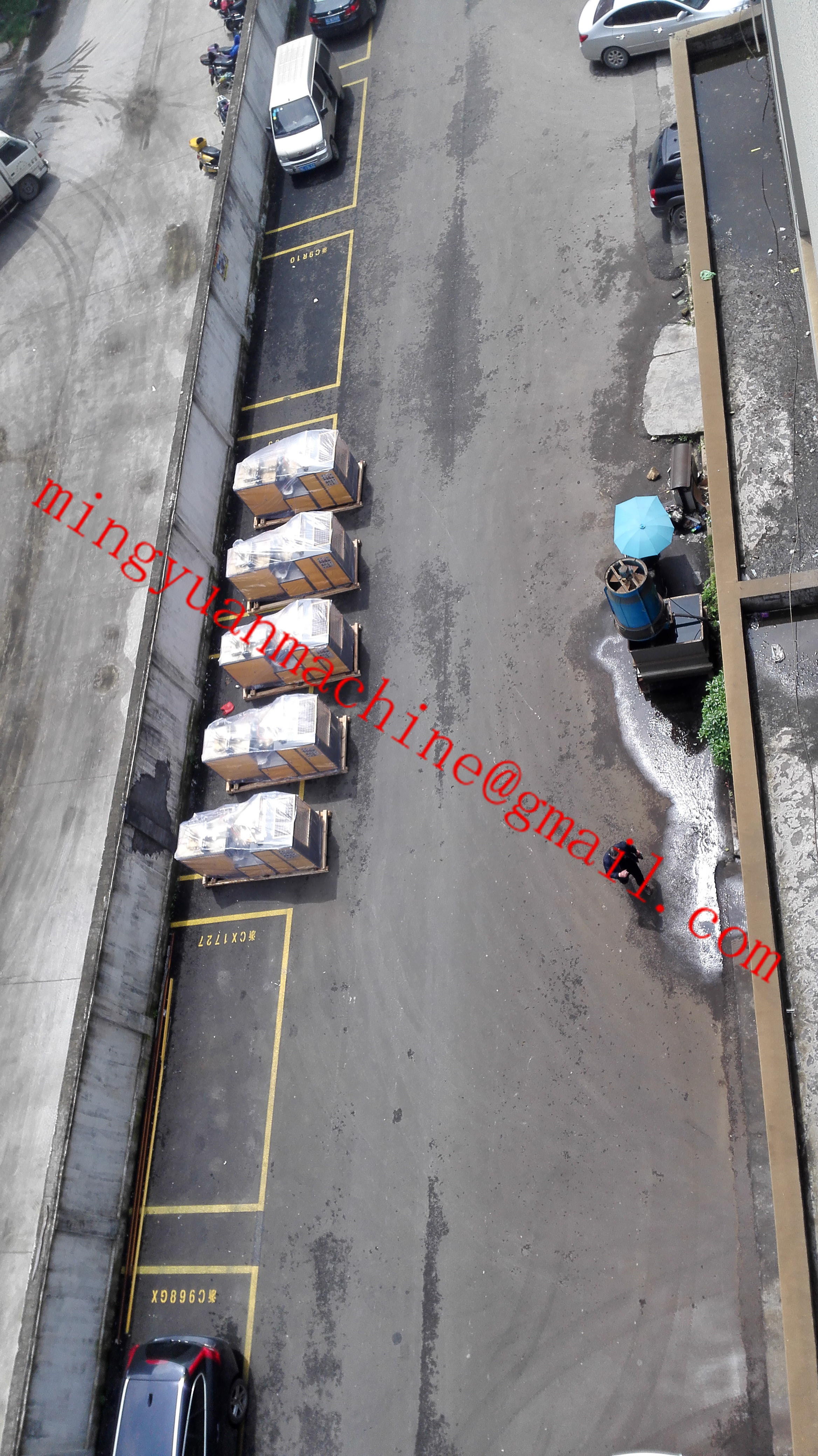

Packaging Details: Export Standard Wooden Case, Inner packing by shrink film
Model No.: JBZ-X12 High Speed Paper Cup Machine
Voltage: 220V/380V 50Hz or Other require voltage
Power: 3.3 KW
Support Machine: Air Compressor
Function: Ultrasonic System or Electric System Base on Client Choose
Size of Cups: 2OZo 12OZ, If bigger Size need custom design machine
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Speed Safty Paper Tea Cup Making Machine With Self Lubrication System

High Speed Safty Paper Tea Cup Making Machine With Self Lubrication System


Quick Details


Type: High Speed Paper Cup Machine

Applications: Fast Forming Paper Coffee Cup, Juice Cup, Ice Cream Cup

Raw Material: PE Coated Paper, Cardboard Paper

Paper cup size: 3oz-12oz (mold exchangeable), Bigger Cup size need custom Produce Machine

Production Capacity: 60 to 75 Pcs / Min

Packaging detail: Plywood case is the usual exporting packing , also can packing according to the customer's requirements

Delivery Time: 35days after got Your down payment

after-sales service: Free training, Engineers available to service machinery overseas


Description


High Speed paper cup forming machine is a multi station automatic machine producing both single and double pe coated drink cups, ice cream cups through continuous process of automatic paper feeding,

sealing,oil injection,bottom cutting,heating,knurling,curling and stacking.


The machine adopting hot air system PLC control,servo motor driving,fullautomatic failure warning,counting,detection,stopping,etc.


1. Different from other paper cup machine, use special steel heavy

and good quality,much stably when running.


2. Itelligent design,PLC automatic control,servo motor driving,fullautomatic failure

warning,counting,detection,stopping etc(optional)


A:the main motor use the best gear reduction unit

B:two times bottom paper feeding

C:operate panel use toch screen controlled.


3. Adopt full-automatic sealed lubricating system,which ensures the long-term uninterrupted high speed running of the machine


4. The parts all adopt standard production,have high generality and good exchange performance,and facilitate euipment maintenance.


5. all of our cams are nitrided.have high hardness and wear resistant strongly,make sure you use long time.


6. Pendulum using plug-in and link widened to improve the stability;


7. Feed cam is independent, so can be more flexible to adjust for changes in the size of the cup.


Specification


ModelJBZ-X12 high speed paper cup machine
Paper Cup Size3oz-12oz (mold exchangeable)
Raw Material

One-side PE (polyethylene) film coated / laminated paper

Ultrasonic machine can be produce single and double pe paper

Suitable paper weight180-300 gsm
Productivity60-75 pcs/ minute
Power Source220V/380V 50Hz or other required
Total Power3.3KW
Total Weight2300KGS
Package Size(L x W x H)2600x1200x1850mm
Working Air Source0.4 Mpa, Air Out-put:0.6 m3/minute
Making Double PE coated paper cups, need to buy an air compressor

Features


Paper Cup Shaper is the automatic machine with multi-running positions. The production of paper cups and other containers completes after this machine runs a whole procedure of paper-feeding, gluing, oiling, bottom-punching heating, rolling, rimming, rounding and tripping.


Produce coffee cups , ice cream cups and other drink cups.


Workshop
