Brand Name: | WDY |
Model Number: | WL-750-4 |
Certification: | ISO9001:2008 |
Place of Origin: | Foshan, China |
MOQ: | 1 set |
Price: | Negotiable |
Delivery Time: | Within 25 days after the advance payment is made |
Packaging Details: | Film and wooden case |
Supply Ability: | 15pcs per month |
Swivel outer diameter(mm): | 1750 |
Ore size(mm), (-200 %): | -1.2(30-100) |
Ore density(%): | 10-40 |
Ore pulp transit capability(m³/h): | 50-100 75-150 |
Dry ore throughput(t/h): | 30-50 |
Rated background magnetic field(T): | 1.0 |
Rated energizing current (A): | 1200 |
Rated energizing voltage(V): | 31 |
Rated exciting power(Kw): | 37 |
Rotaing pulsation power(Kw): | 4 |
Pulse stroke(mm): | 1-30 |
Company Info. |
Foshan Zhongtai Machinery Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

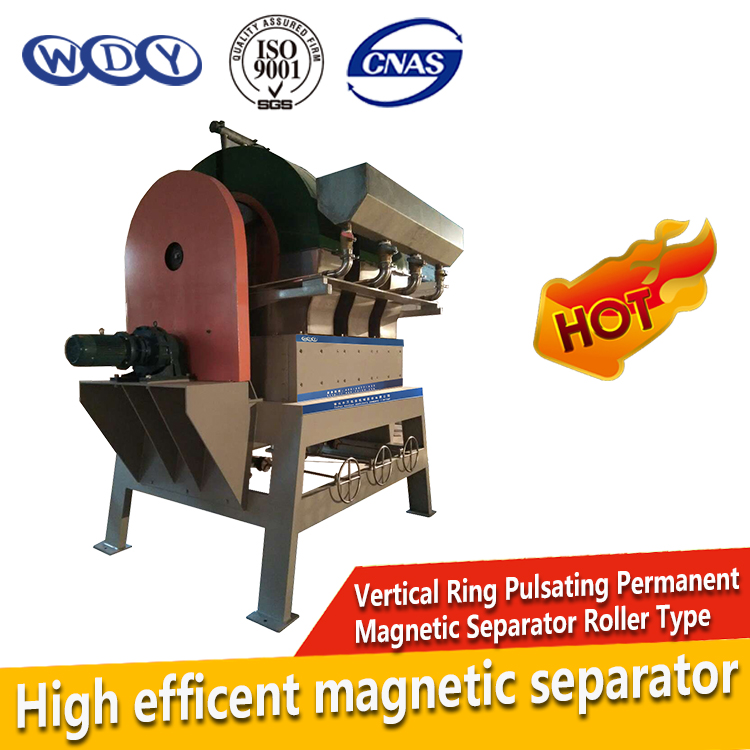

High efficient permanent magnetic vertical ring separator
This is the new type equipment is developed by Foshan Wandaye Machinery Equipment Co., Ltd.
Features:
1. Not easy to be blocked for the magnet medium.
2. The magnetic system is made of neodymium iron boron permanent magnetic material, which has longer life span.
3. Wider magnetic area, higher efficient.
Techinical data:
Model | WL-1750-4 |
Power(KW) | 0.75-1.5 |
dimension(length x wide x height,mm) | 3900x3300x3800 |
weight of biggest parts(T) | 11 |
Cooling water processing(m³/h) | 4-5 |
Water consumption(m³/h) | 80-120 |
Water supplied speed(Mpa) | 0.2-0.3 |
Application Scope:
It is used to purify the non-metallic minerals and seperate the low intensity magnetic minerals. The non-metallic minerals includes quartz, feldspar, nepeline, fuolite, spodumene, kaolin. The low intensity magnetic minerals includes hemitite, limonite, ilmenite, wolframite and tantalum-niobium ores.
After-sales service:
One year free installation and debugging.
Enjoy door-to-door after sales service.
![]() |
