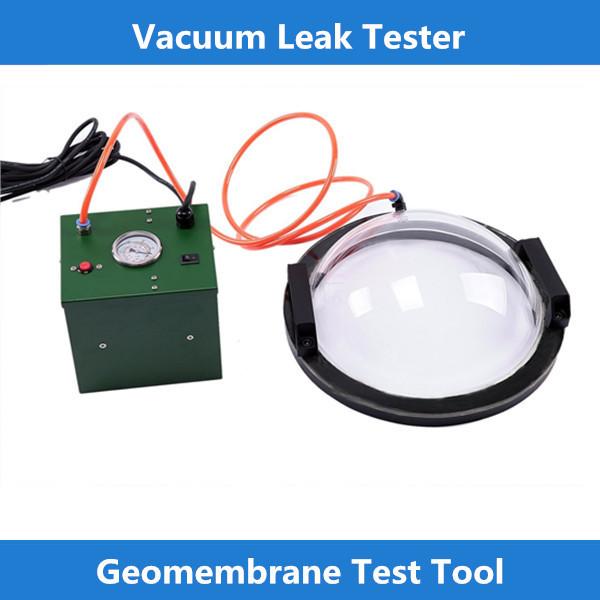

CX-NS003 Geomembrane Vacuum Leak Testing Hood

CX-NS003 Geomembrane Vacuum Leak Testing Hood

Vaccum leak tester is designed as CJJ113-2007 standard from National construction department,which is small body and strong negative pressure.The vaccum part is of blow moulding acrylic.The whole vaccum is clean and strong resistant,connected with special strip seal.It is used in disposal landfill project and roof waterproofing check.

CX-NS003 Geomembrane Vacuum Leak Testing Hood

Basic parameter:

Voltage:	230V
Frequency:	50/60HZ
Max. negative pressure:	60kpa
Normal testing negative pressure:	20-40kpa
Effective leak testing size:	Φ280mm
Size of the vaccum:	Φ360mm
Connecting way bewteen vaccum and pump:	quick connector
Weight:	5.8kgs
Shape:	Hemispherical

Working principles:

Start Vacuum pump and vacuumize the hood,then close the valve.After some minutes,if the pointer doesn't move that means the pressure don't change and leak.

Features:Vacuum quickly,high vacuum,carry coveniently,lightweight,durable,safe and reliable

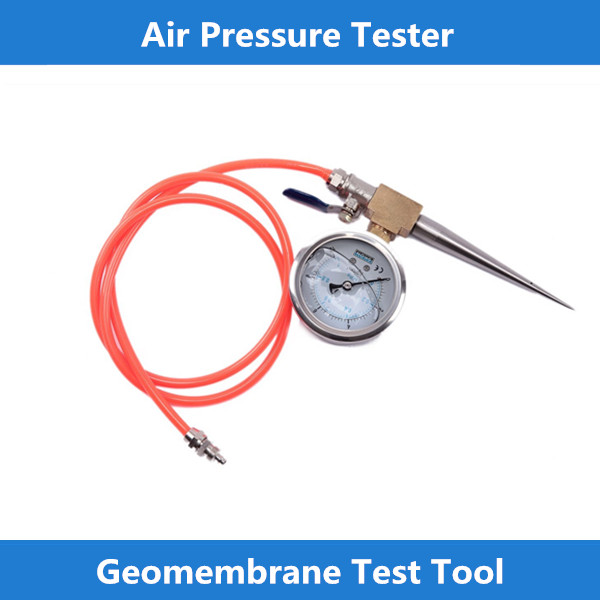

CX-NS001 Geomembrane Air Pressure Tester

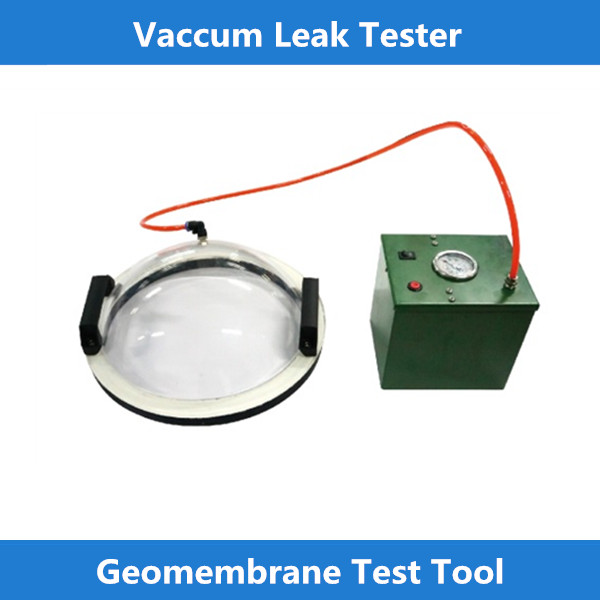

CX-NS003 Vaccum Leak Tester

3.Precautions

(1)Test pin should be properly and cleanly kept .

Shall handled carefully to avoid damage.

(2)Generally the pressure of needle is appropriate at 3/ 4 of cap,

not necessary full . The instrument should be checked regularly to ensure the accuracy..

4.Packing List

(1) pressure testing needle 1 set

(2) Manual 1copy
