4.8 Inch NEC LCD Panel Portrait Type NL2432DR22-11B With Lcd Screen Module

Categories NEC LCD Panel
Brand Name: NEC lcd panel
Model Number: NL2432DR22-11B
Certification: ISO9001
Place of Origin: China
MOQ: 1
Payment Terms: T/T, Paypal, Western Union, MoneyGram
Supply Ability: 500PCS/DAY
Delivery Time: 2-3 Working Holiday
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model: NL2432DR22-11B Compatible model
Surface: Hard coating (3H)
Brightness: 50 cd/m² (Typ.)
Aspect Ratio: 16 : 9 ( H : V )
Display Colors: 262K (6-bit)
Display Mode: TN, Normallly Whte, TMR
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

4.8 Inch NEC LCD Panel Portrait Type NL2432DR22-11B With Lcd Screen Module

4.8 Inch NEC LCD Panel Portrait Type NL2432DR22-11B With Lcd Screen Module


Specifications:


Model:NL2432DR22-11B
a-Si TFT-LCD , Panel
3.5 inch
240(RGB)×320 , QVGA
TN, Normally White, Reflective


Features:

Pixel Density : 113 PPI
Aspect Ratio : 3:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0745×0.2235 mm (H×V)
Pixel Pitch : 0.2235×0.2235 mm (H×V)
Weight : 39.5/42g (Typ./Max.)
Surface : Hard coating (3H)
Active Area : 53.64×71.52 mm (H×V)
Bezel Area : 56.6×75.0 mm (H×V)

Outline Dimension : 66.2×91 mm (H×V)
Outline Depth : 4.4/4.7 (Typ./Max.) mm
Landscape or Portrait : Portrait type
Touch Panel : Embeded (4-wire Resistive)


Application

• Automotive display

• Industry application


NEC NL2432DR22-11B Optical Features :

<

Display Mode :TN, Normally White, Reflective
Brightness :50 cd/m² (Typ.)
Contrast Ratio :10:1 (Typ. light on); 10:1 (Typ. light off) (Reflective)
Display Color :262K (6-bit)
Response Time :15/17 (Typ.)(Tr/Td)
Reflectance Ratio :30/40% (Min./Typ.)
Sunlight Readable :Sunlight Readable

What is Our Advantages?


1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.

2. We can provide the one-stop purchase service.

3. As a result, our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

5. Fast delivery.

6. Reasonable price.


As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

  1. AUO LCD Screen
  2. Samsung LCD Display
  3. LG LCD Screen replacements
  4. Sharp LCD panels & Chimei LCD Parts.
  5. Innolux LCD Modules & BOE LCD Screen.

Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.


We can do for you:


  1. Provide excellent LCD screen replacements with competitive price.
  2. Safe, quick and efficient supply chain.
  3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
  4. Your problems will be replied within 24 hours.

Keep pace with the times and mutual benefit is our philosophy. We expect being your purchasing assistant in the LCD Screen Panel Replacements area.

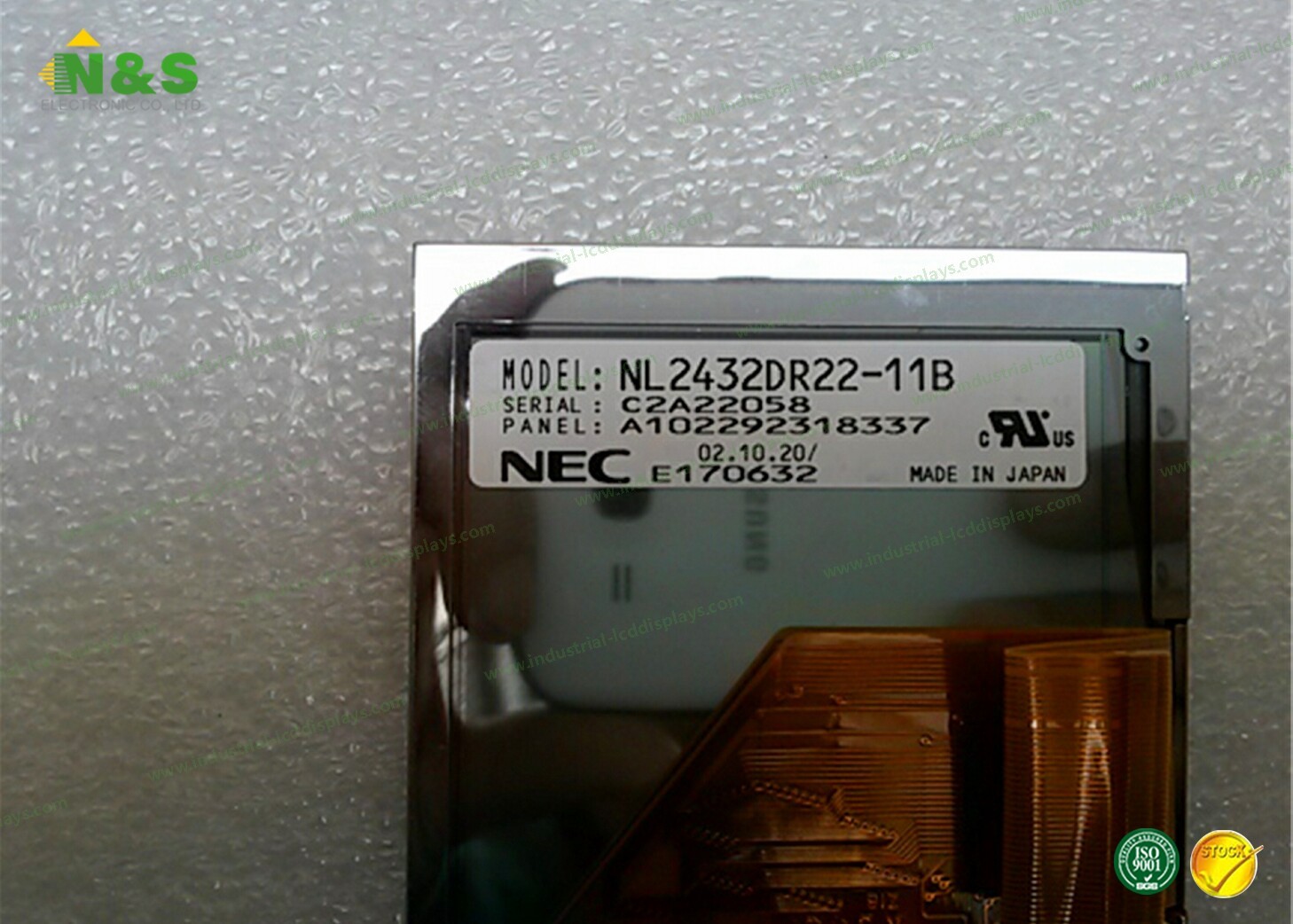

Picture Show for NL2432DR22-11B LCD Display Panels:
