220VAC 50Hz Magnetic Door Lock Power Supply With Timer Delay , Silver Color

Special power supply for access control system 12V 3A output

Model: JS-801A

This kind of power supply are specail for access control stsyem, EM locks, with timer delay.

Parameter:

Features:

1. With No/NC relay, suitable any type of Electric lock,

2. Built-in current circuit to prevent electric lock inductance reverse, Reduce the load on the access controller

3. Built-in adjustment knob to control timer of lock open, Adjustment range 0-10S

4. With Exit button signal input, contact directly with exit button

5. With Automatic protection function with Fuse.

6. Special Design, Suitable for Access Control.
7. Produced with High Quality Element.
8. Multifunctional Output Contact,Suitable for Multifunctional Request.
9. The Best Choice of Access Control.

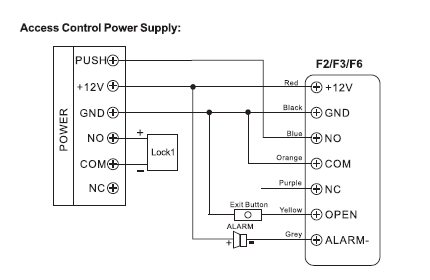

Drawing for connector with access control

JUNSON Security Fair show

Quality Guarantee:

Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years

warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information,

please browse our service center.

We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt

lock,

Electronic lock. Door lock. Access control.
