| Categories | 2phase hybrid stepper motor |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | Jingbo |
| Model Number: | J42HB33-01 |
| Certification: | CE |
| Step Angle(degree): | 1.8 |
| Holding torque(N.m): | 0.16 |
| Current(A/Phases): | 0.95 |
| Delivery Time: | in stock |
| Payment Terms: | T/T, Paypal, Western Union |
| Supply Ability: | 500pcs per week |
| MOQ: | 1pc |

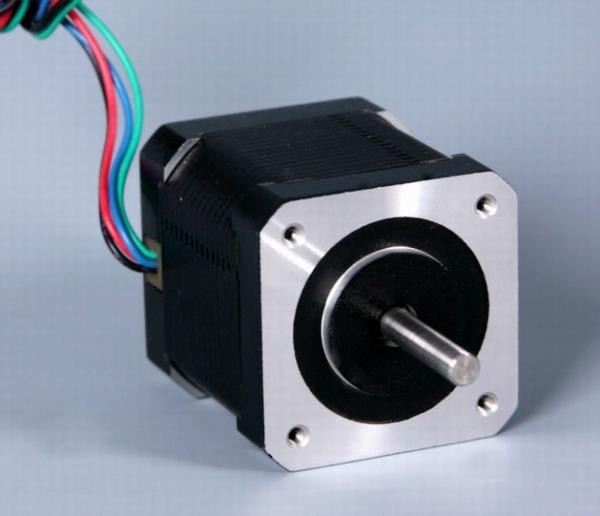

NEMA 17 Stepper Motor J42HB33-01
General specifications
Model | Step Angle (°) | Length L(mm) | Holding Torque (N.m) | Current (A/Phase) | Resistance (Ω) | Inductance (mH) | Rotor inertia (g.cm2) | Weight (Kg) |
J42HB33-01 | 1.8 | 33 | 0.16 | 0.95 | 4.2 | 2.5 | 38 | 0.2 |
J42HB38-01 | 38 | 0.26 | 1.2 | 3.3 | 3.2 | 54 | 0.28 | |
J42HB47-01 | 47 | 0.32 | 1.2 | 3.3 | 2.8 | 68 | 0.35 | |
J42HB60-01 (Series) | 60 | 0.8 | 0.85 | 12 | 28 | 102 | 0.5 | |
J42HB60-01 (Unipolar) | 60 | 0.56 | 1.2 | 6.0 | 7 | 102 | 0.5 |

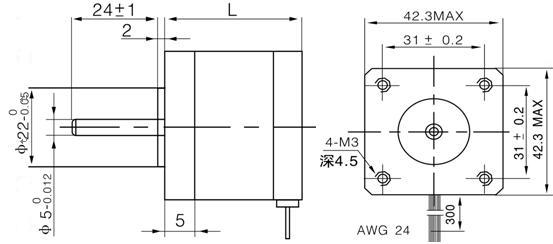

■Dimension
Model | Shaft diameter |
J42HB33-01 | 5mm |
J42HB38-01 | 5mm |
J42HB47-01 | 5mm |
J42HB60-01 (Series) | 5mm |
J42HB60-01 (Unipolar) | 5mm |

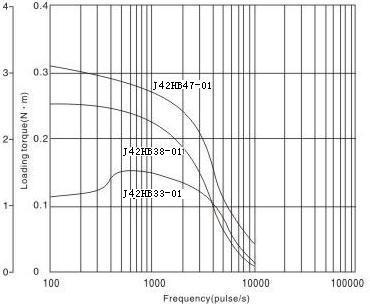

■Frequancy-torque characteristics

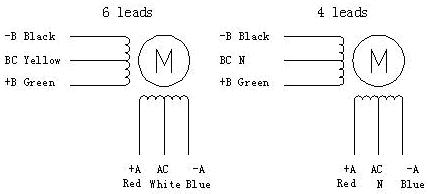

■Connections)
|
