Waterproof Industrial Pointing Device Rugged Laser Module Trackball No Noisy Operation

Categories Industrial Pointing Device
Brand Name: CNKHTECH
Model Number: KH-M25-80
Certification: CE/ROHS/FCC
Place of Origin: China
MOQ: 1pcs
Price: Negotiation
Payment Terms: T/T, Paypal
Supply Ability: 5000pcs/month
Delivery Time: 1-2 weeks
Packaging Details: 1pc/EPE/white box, 30boxes/ctn
Material: Stainless steel
Protection Level: IP65
Mounting Method: Rear panel w/hole mounting solution
Dimensions: 80 x 110 mm (Front panel)
Interface: PS/2 or USB
Operating Temperature: -20º C to + 60º C
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

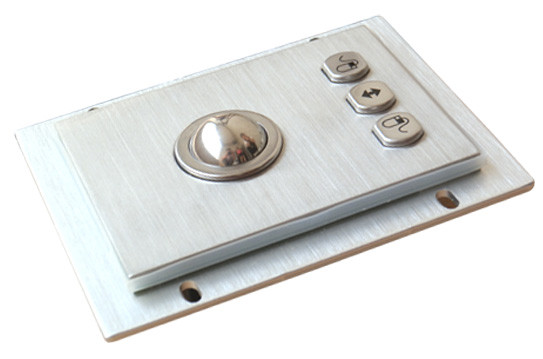

Waterproof Industrial Pointing Device Rugged Laser Module Trackball No Noisy Operation


Waterproof Industrial Mouse with Rugged Laser Module Trackball


Product Features:


• All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.


• Laser Encoders provide high resolution more than 1200DPI, fast and reliable positioning data.


• 25mm diameter Stainless steel ball for smooth, quick and durable operation and precise cursor positioning.


• Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.


• no metal bearings inside, operation is very smooth, and easy without any noise.


• Can be mounted horizontally, and vertically.


• PS/2 or USB connector is available.


• Customized layout is available.


Application


Using the existing mouse driver and mouse software Interfaces for most

workstations and computers. It’s meet NEMA 4, 4X and IP 65 specifications,

making them vandal proof, resistant to dust, dirt, water and corrosive liquids


Technical Specifications

  • Mechanical Data
Key Travel2.0mm
Key Switch Lifespan> 10 million times
Trackball lifespan> 10 million revolutions
Operation SystemWINDOWS98/ME/2000/2003/XP/Vista/Linux,Unix,Mac OSX,iOS, Android
  • Electrical Data
Supply Voltage5.0V DC ± 5%
Work Current10mA
EMC StandardEN55022(B)
  • Environmental Adaptability
Operating temperature-20°C to +60°C
Storage temperature-40°C to +80°C
Operating RH20-95%
Atmospheric pressure60-106Kpa.
  • Reliability
Compliant StandardRoHS , CE and FCC
Protection LevelIP65(front panel)
Vandal ResistantIK10
Key Lifespan>10 million actuation
MTBF>50000H
MTTR<30min
