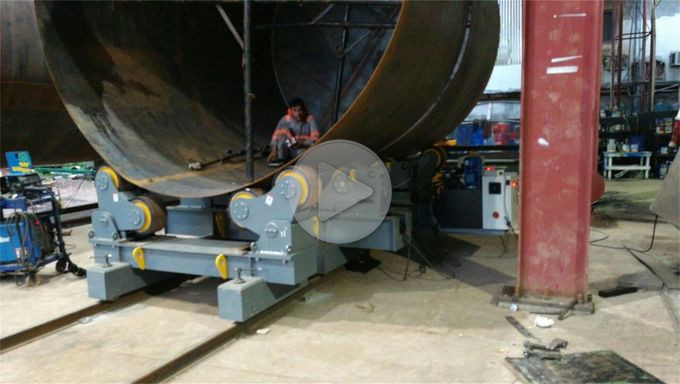

100T Self Aligning Welding Rollers To Italy, 20 Days Delivery Time , Italy Welding Rotator
Pipe Welding Rollers Supply Ranges
1. Consist : One powered roller , One idler roller , Electric control system
2. Adjust way : Adjust the pipe diameter automatically with diameter 800-5500 mm.
3. Voltage : 380V 50Hz 3P to Italy market
4. Control Way : Remote hand control box / Wireless hand control box
5. Roller Material : Rubber / Steel / PU ( Polyurethane roller for Nonferrous Metals )
6. Original : Our factory / Wuxi China/WUXI SUCCESS MACHINERY EQUIPMENT CO., LTD
Self-aligning Pipe Welding Rollers Specification
Model | HGZ-80 | HGZ-100 | HGZ-200 |
Max Capacity | 80 T | 100 T | 200 T |
Roller Diameter (mm) | 500 | 550 | 550 |
Roller Width (mm) | 120 | ||
Working Range (mm) | 850-5000 | 1000-5500 | 1500-8000 |
Roller Speed (m/h) | 1 - 1000 mm/min | ||
Motor Power (kw) | 4 | 5.5 | 7.5 |
Option : | □ Moving wheels □ Wireless Control □ Remote Control | ||
Tank Turning Rolls Applications
1. If you want moving function , just send us one email.
2. For big tank seam welding after plate rolling.
3. For single tanks butt welding to be the big one pipe.
4. Pressure vessels auto welding.
Details Control system and Brand
1. Inverter is from Danfoss Brand
2. Motor is from CE Invertek Brand
3. Reducer is from Cable. Made in China.
4. Electric system is from Schneider
Suggestions / Overseas agent available
If you have any special request , just advise us ,here is our suggestion :
1. If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.
2. All our pipe welding rotators have 20% over weight design, but we suggest used on the safety rangs.
3. We have strong delivery team, including the Sea freight and Air transportation. Door to door available.
4. Just advise me your desitination port then we will give you the final CIF price.
5. Overseas agent available.
video:
DO NOT HESITATE ! JUST SEND US YOUR INQUIRY NOW.
|
